Grease Procedure (PM) HP6S / YR-HP6-A10 Manipulator

Model Covered: YR-HP6-A10

Material Required:

Molywhite RE No.00 132412-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Amount Of Grease:

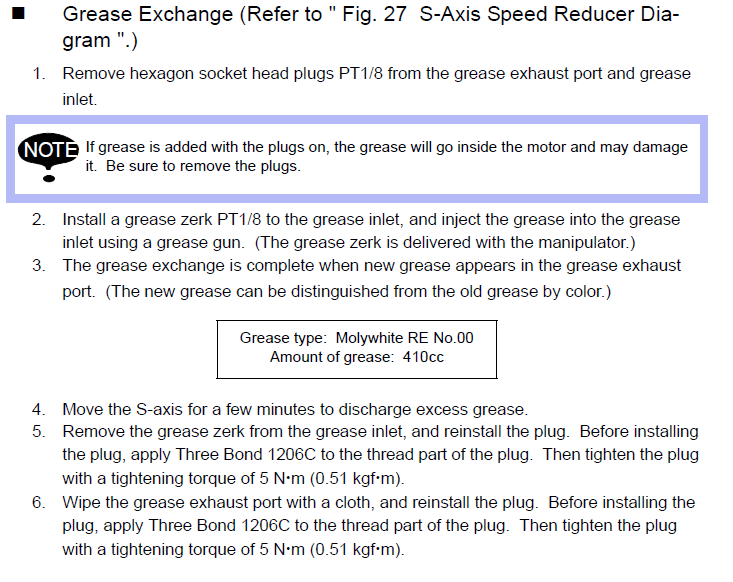

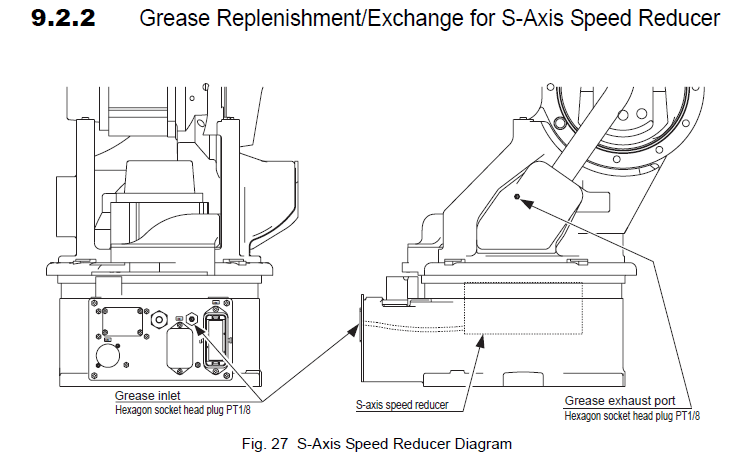

S-AXIS: Molywhite 65cc

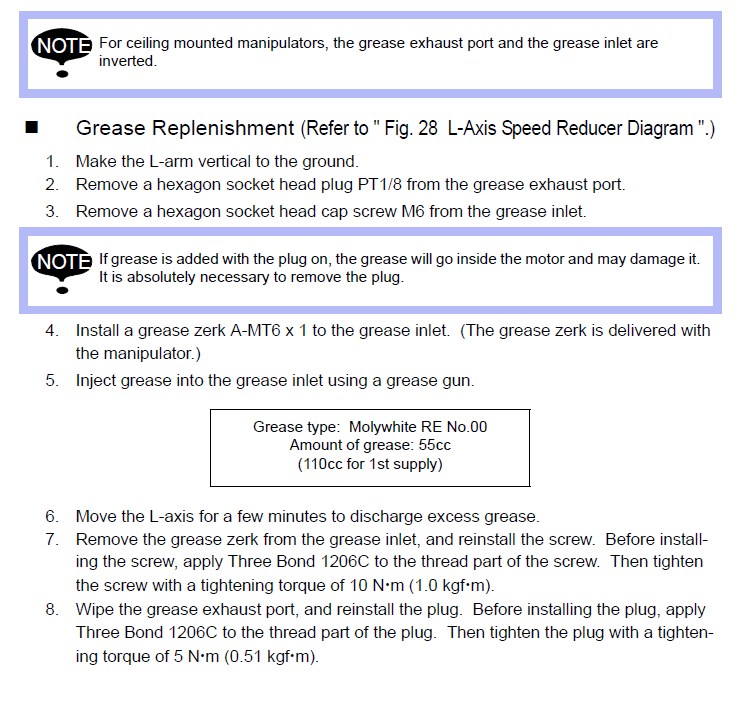

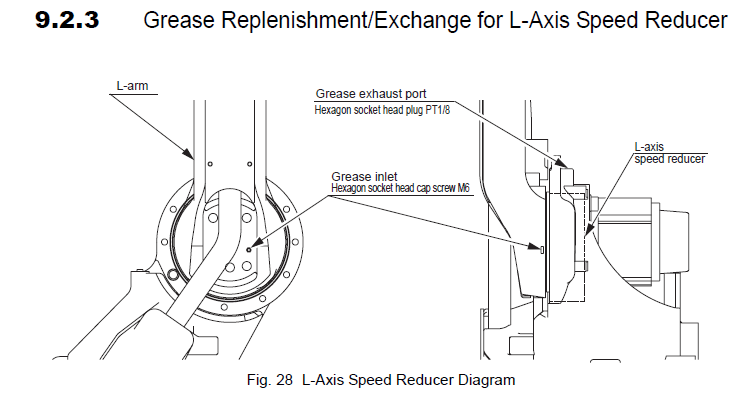

L-AXIS: Molywhite 55cc

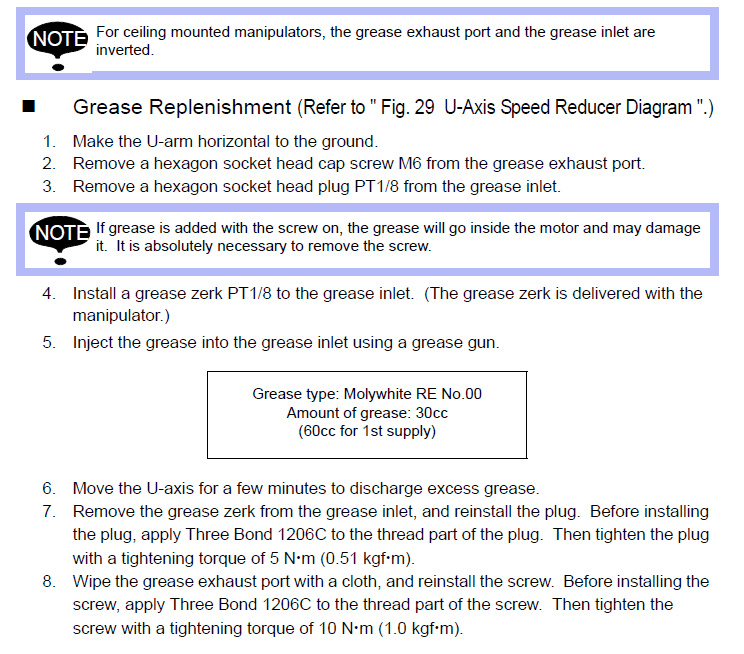

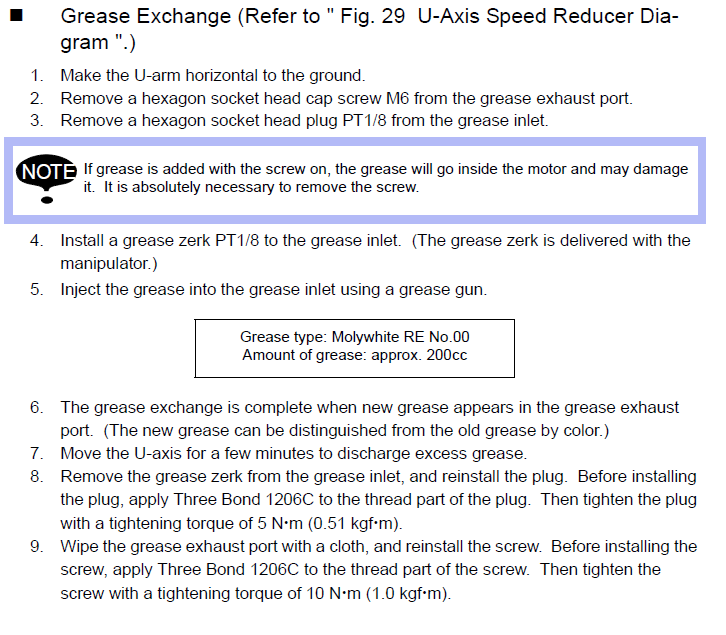

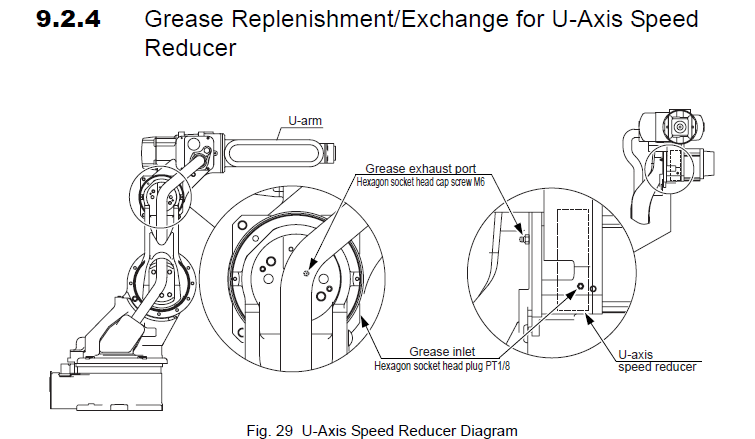

U-AXIS: Molywhite 30cc

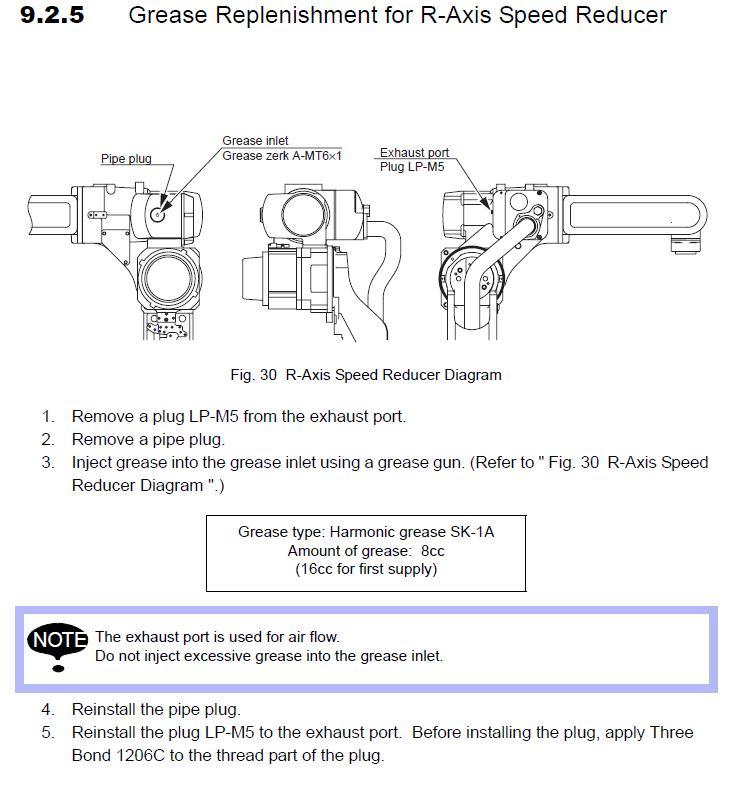

R-AXIS: SK-1A 8cc

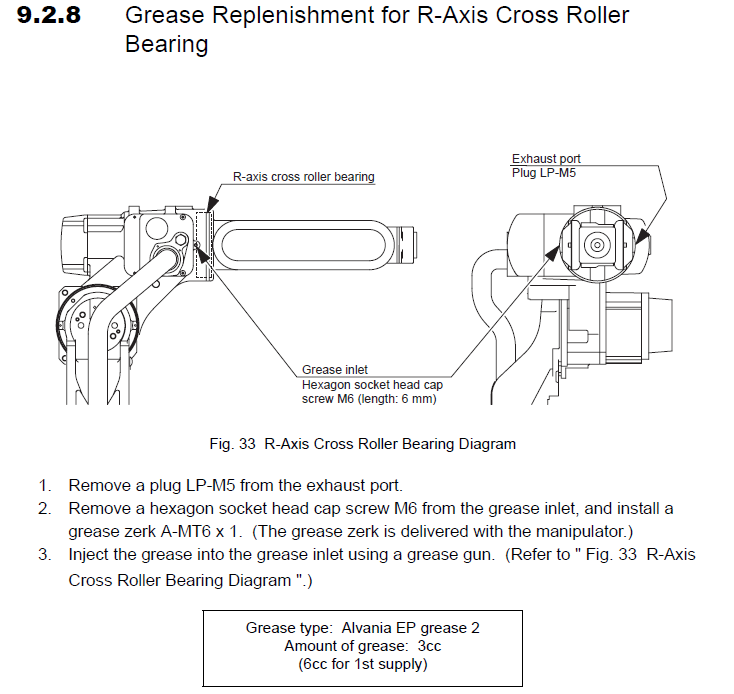

R-AXIS CROSS ROLLER BEARING: Alvania EP2: 3cc

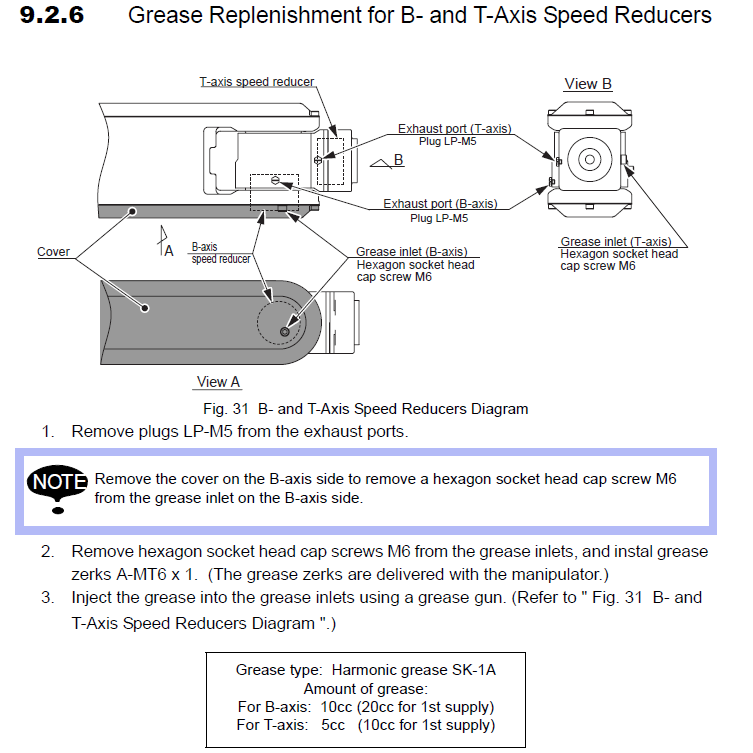

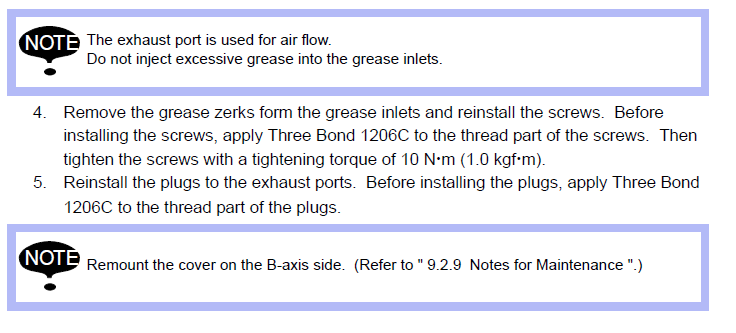

B-AXIS: SK-1A 10cc

T-AXIS: SK-1A 5cc

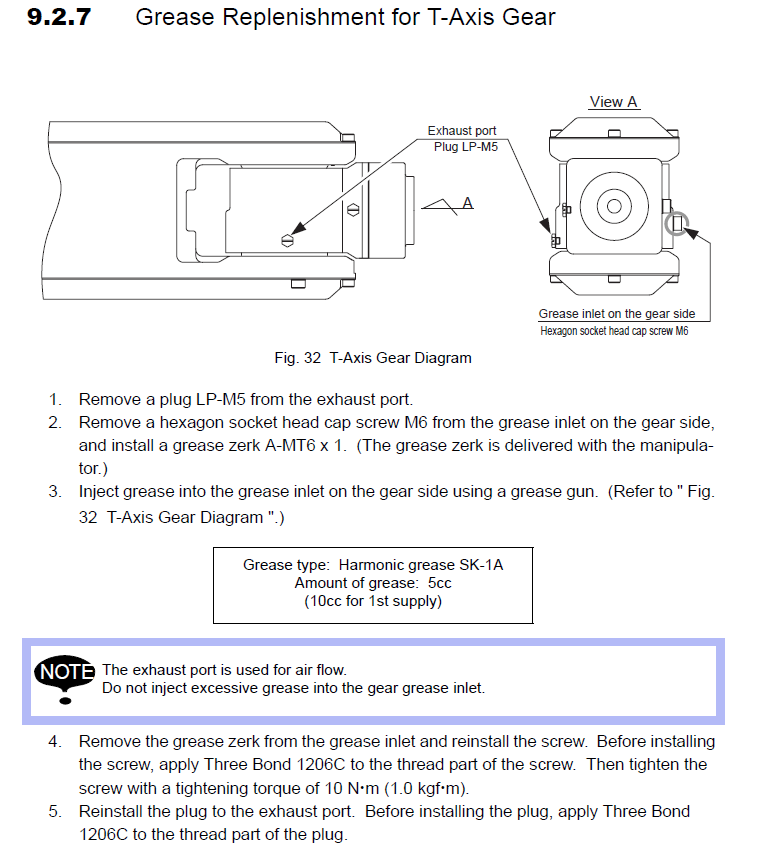

T-AXIS GEAR: SK-1A 5cc
