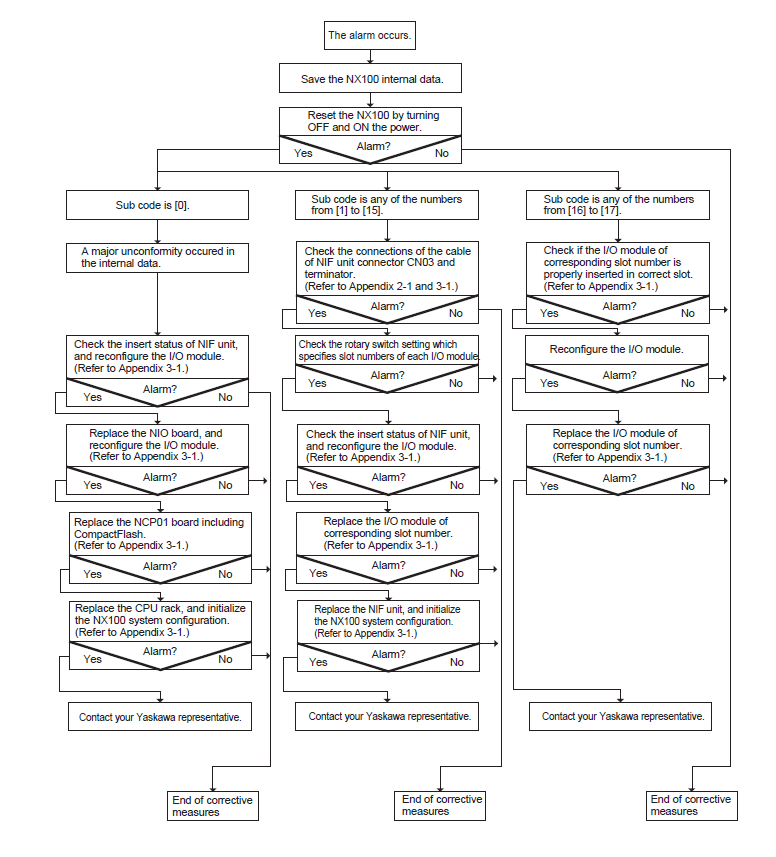

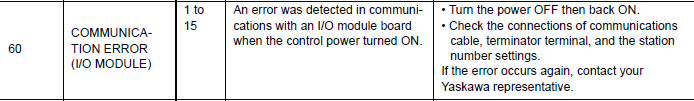

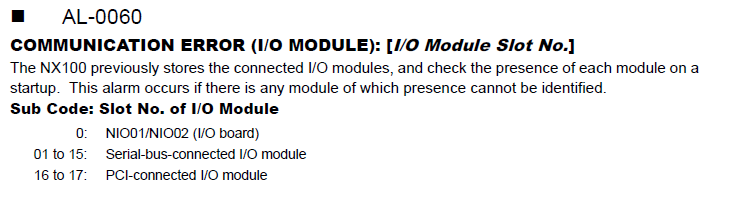

NX100 ALARM 0060 COMMUNICATION ERROR (I/O MODULE)

June 12, 2024 16:04
Updated

Was this article helpful?

2 out of 2 found this helpful
