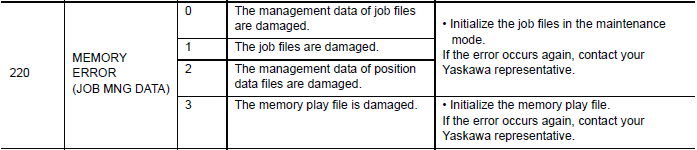

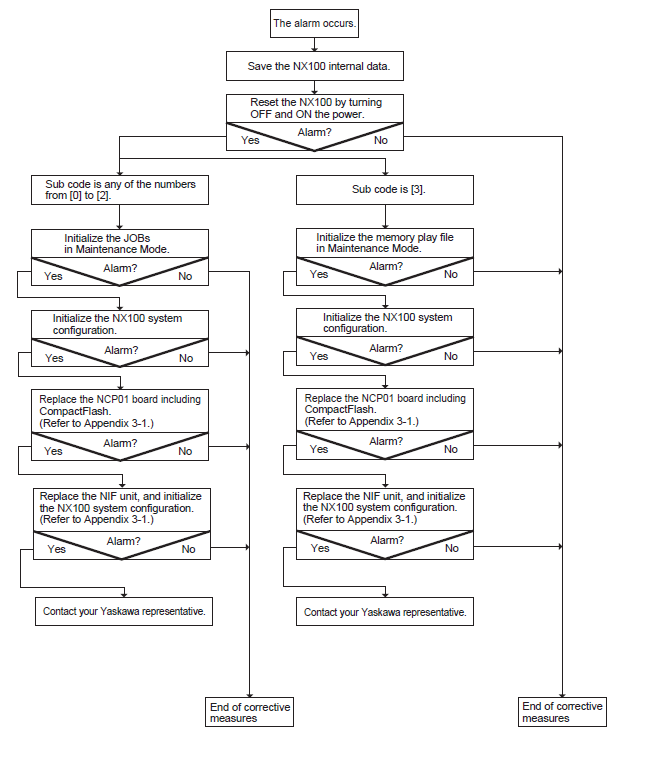

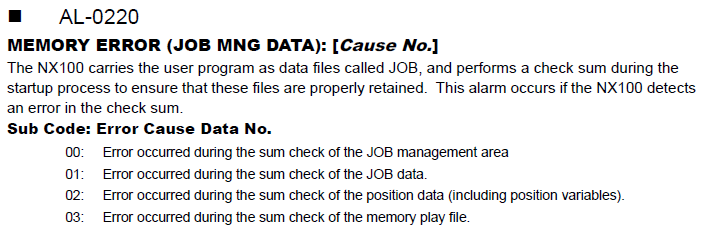

NX100 ALARM 0220 MEMORY ERROR (JOB MNG DATA)

June 12, 2024 18:07
Updated

Was this article helpful?

1 out of 1 found this helpful
