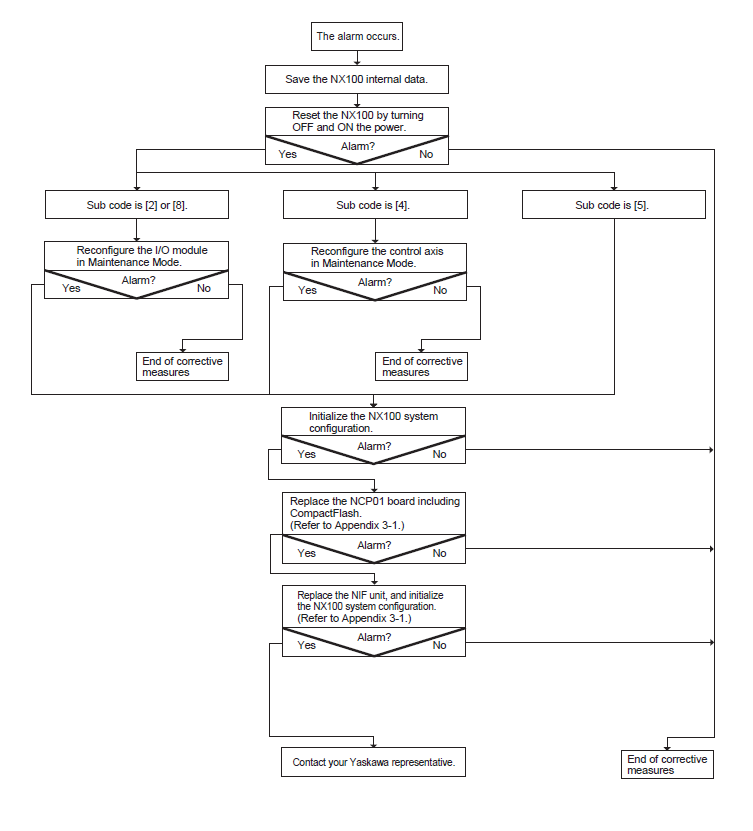

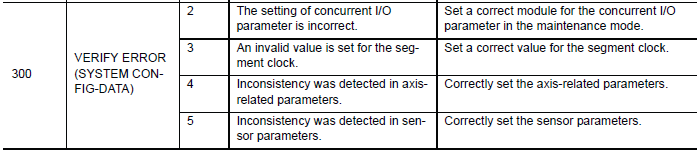

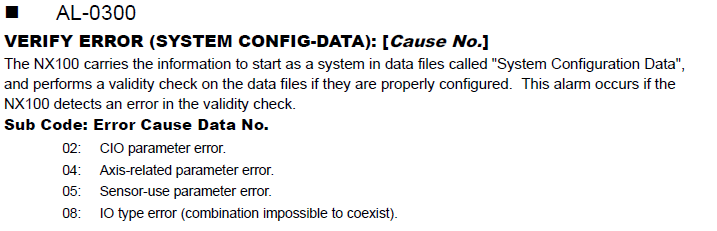

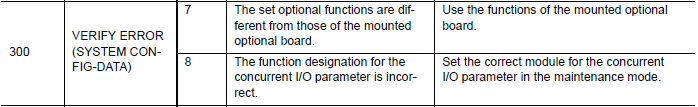

NX100 ALARM CODE 0300 VERIFY ERROR (SYSTEM CON-FIG-DATA)

June 12, 2024 19:33
Updated

Was this article helpful?

1 out of 2 found this helpful
