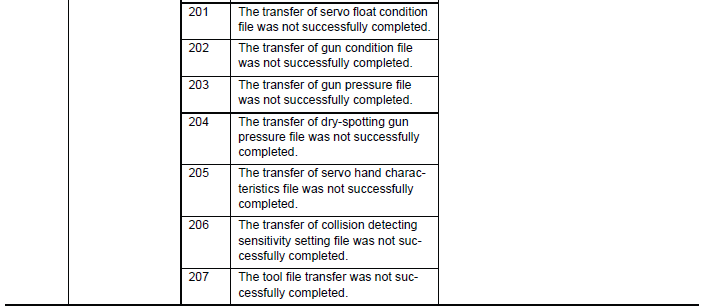

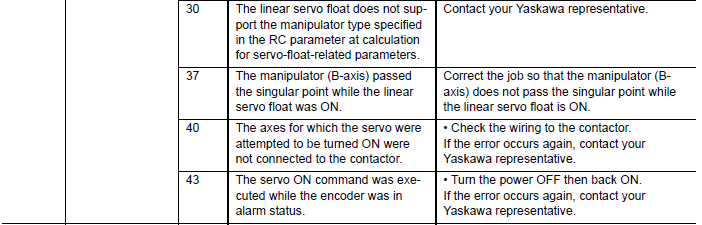

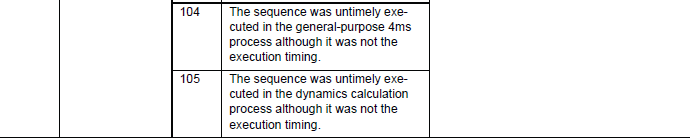

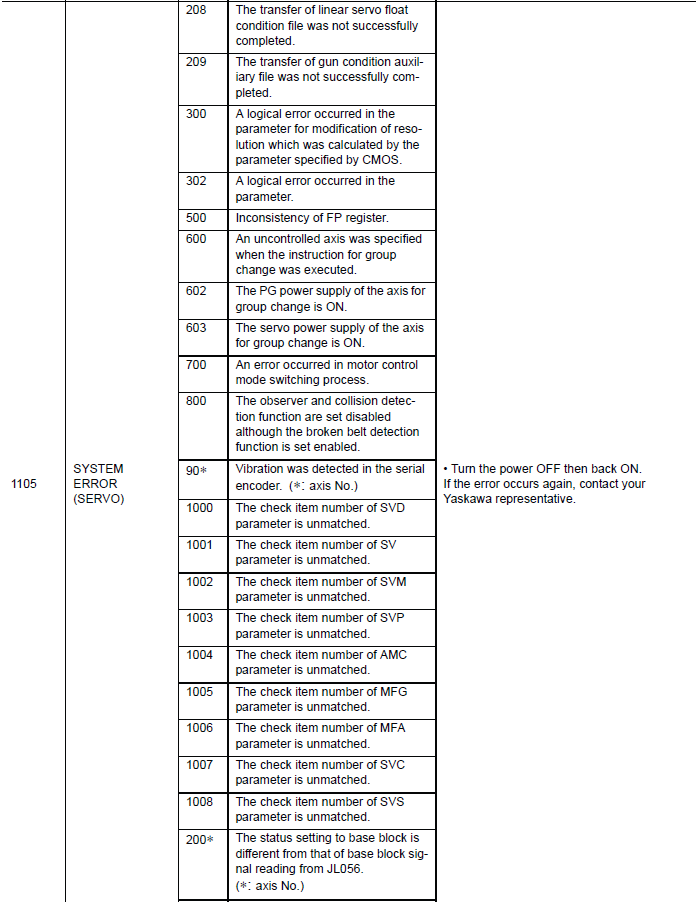

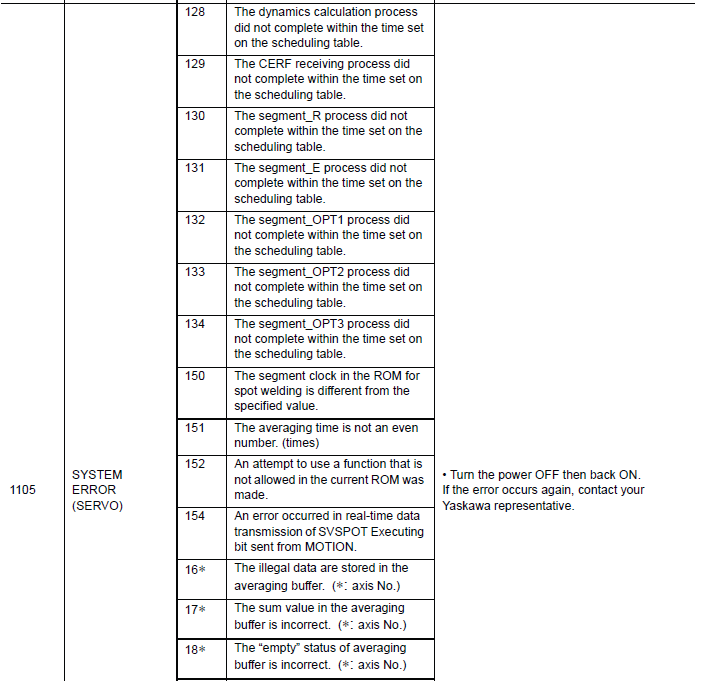

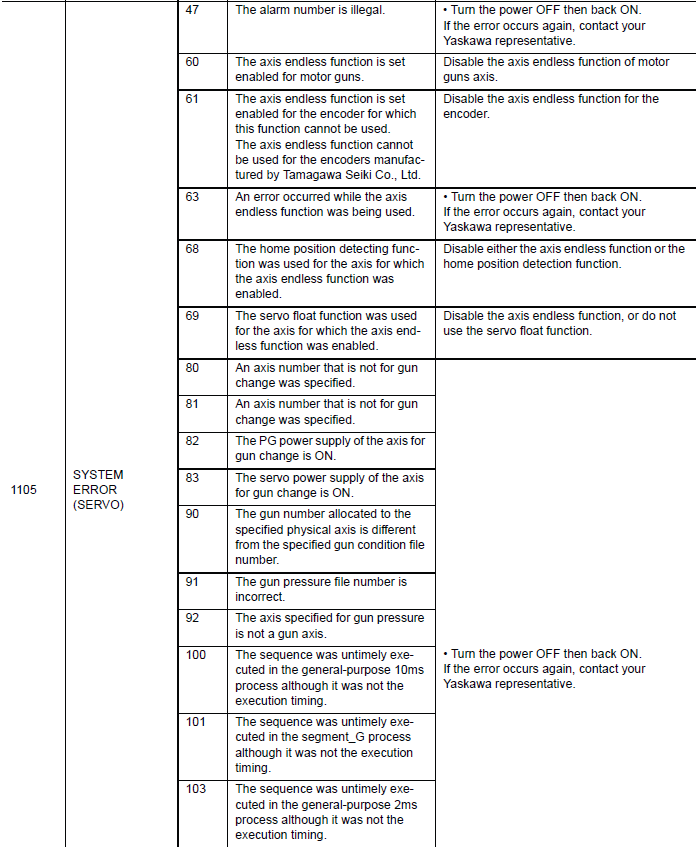

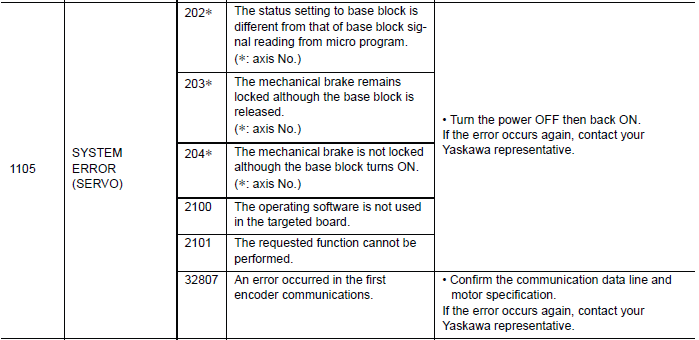

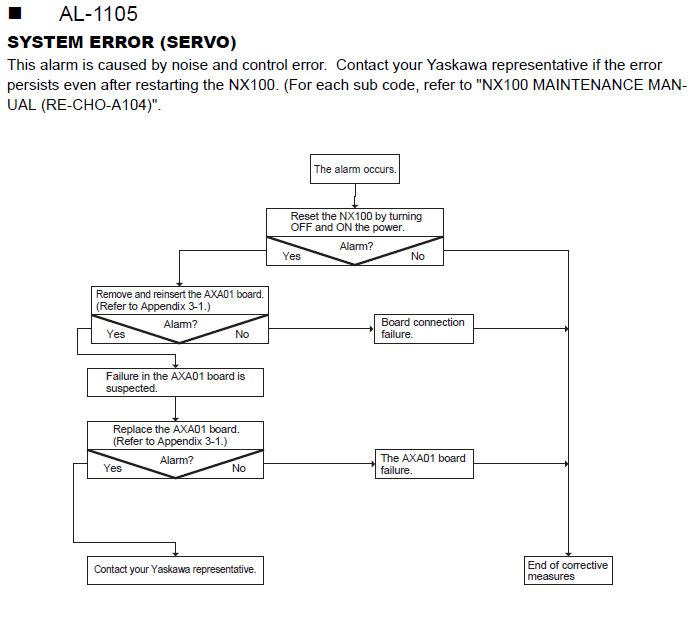

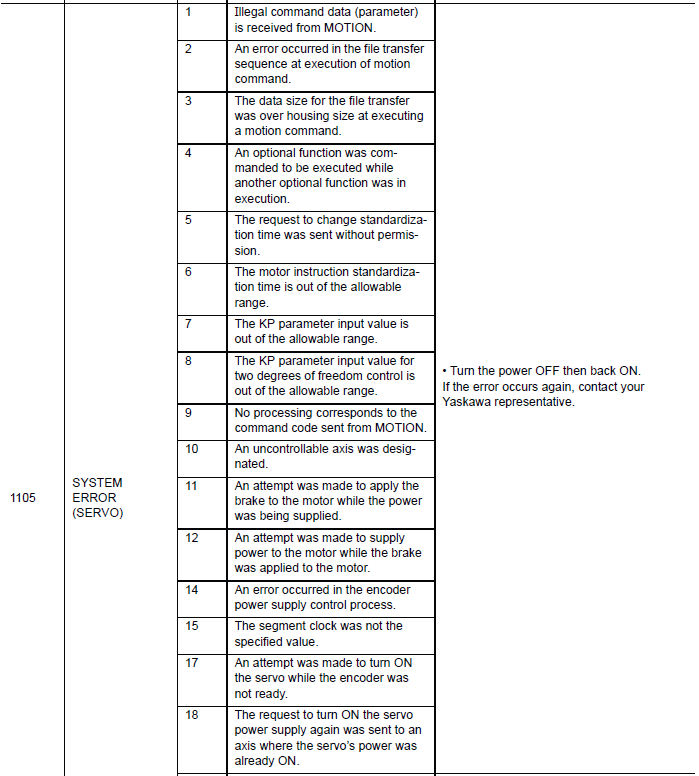

NX100 ALARM CODE 1105 SYSTEM ERROR (SERVO)

June 17, 2024 19:59
Updated

Was this article helpful?

1 out of 1 found this helpful
