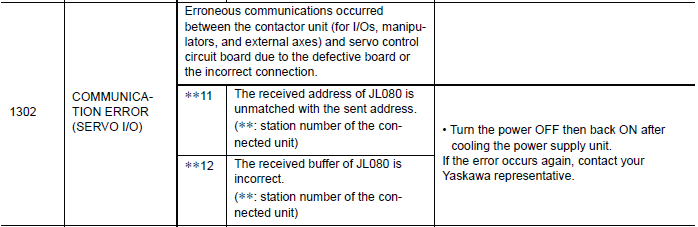

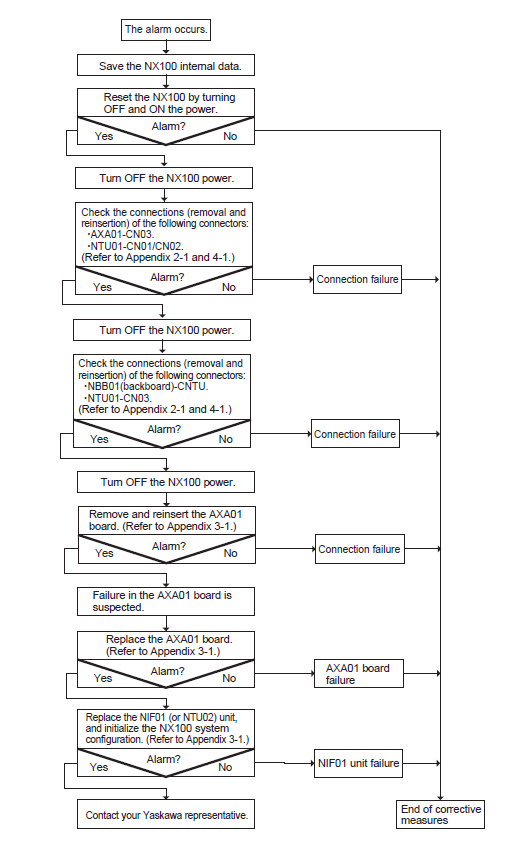

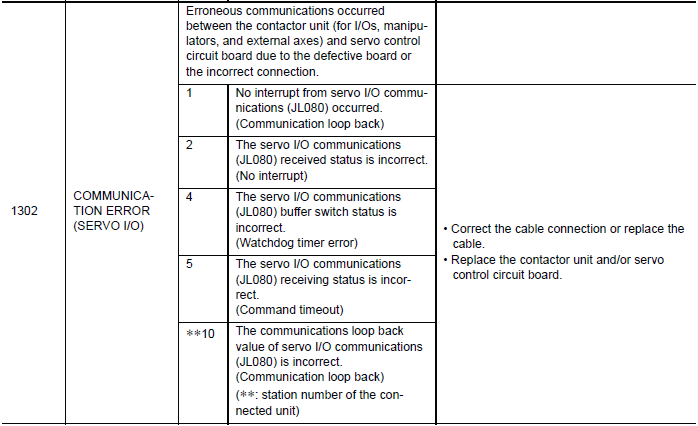

NX100 ALARM CODE 1302 COMMUNICATION ERROR (SERVO I/O)

June 18, 2024 14:35
Updated

Was this article helpful?

2 out of 2 found this helpful
