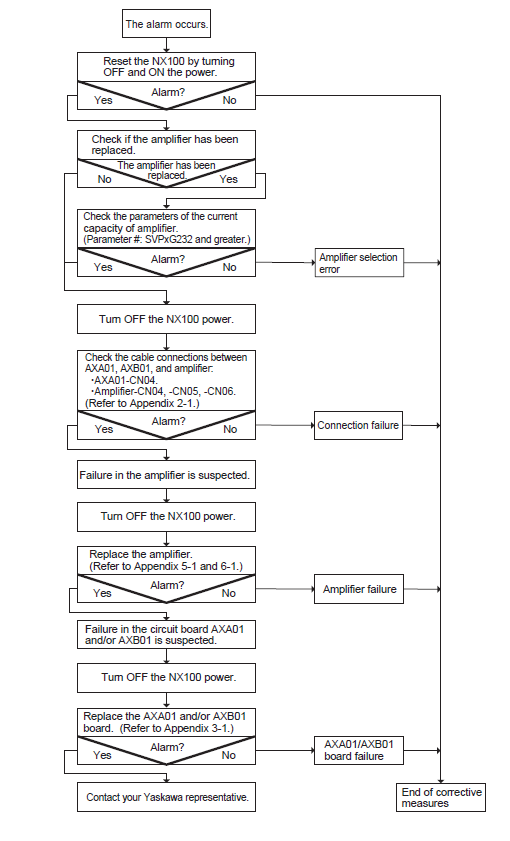

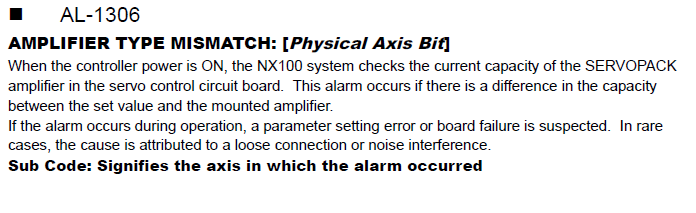

NX100 ALARM CODE 1306 AMPLIFIER TYPE MISMATCH

June 18, 2024 15:14
Updated

Was this article helpful?

0 out of 1 found this helpful
