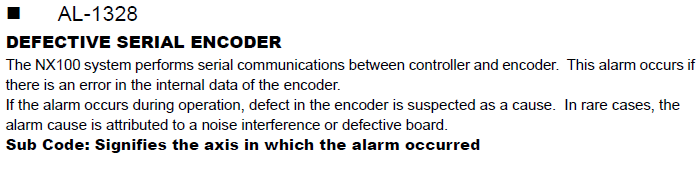

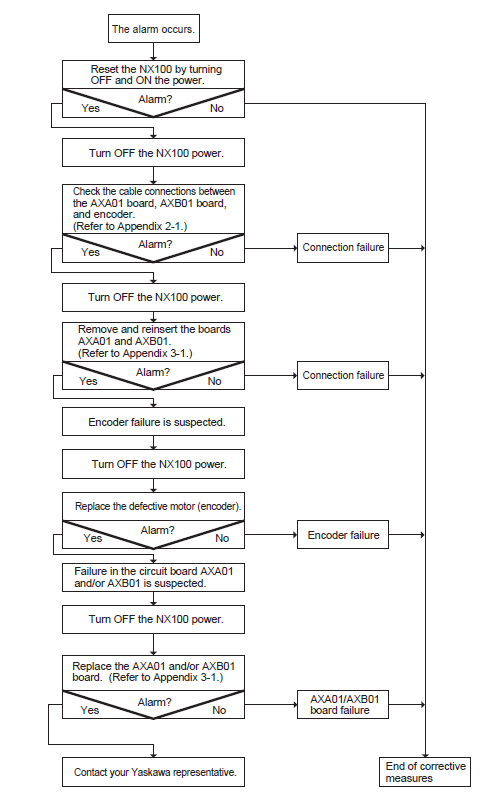

NX100 ALARM CODE 1328 DEFECTIVE SERIAL ENCODER

June 18, 2024 18:04
Updated

Was this article helpful?

0 out of 0 found this helpful
