Model Type: YR-MH00006-C30
Materials Required:
GREASE, VIGO #0, 16KG PAIL,: VIGO-GREASE-RE-NO-0/151945-1
HARMONIC-GREASE-SK-1A/479035-2

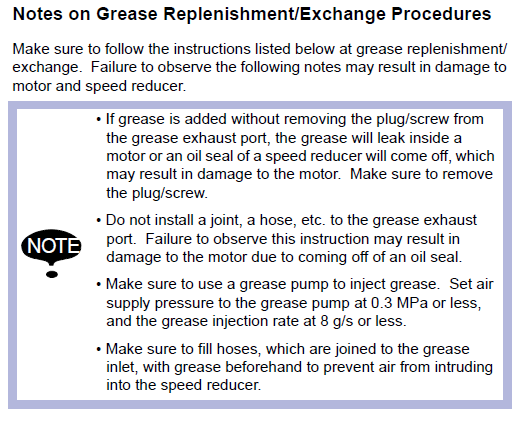

Grease Amounts Needed for Replenishment:

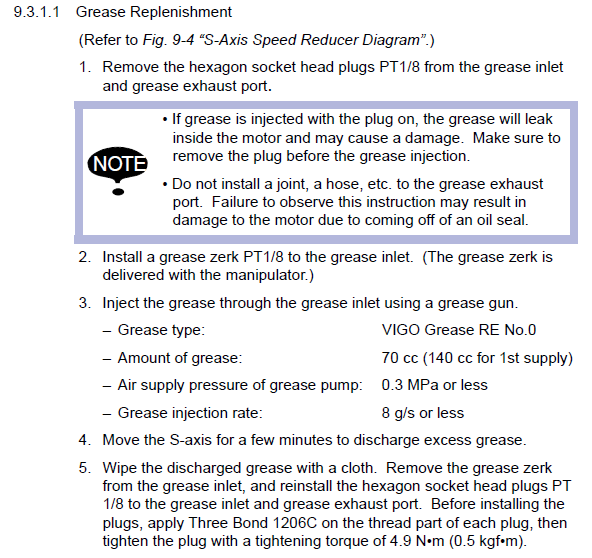

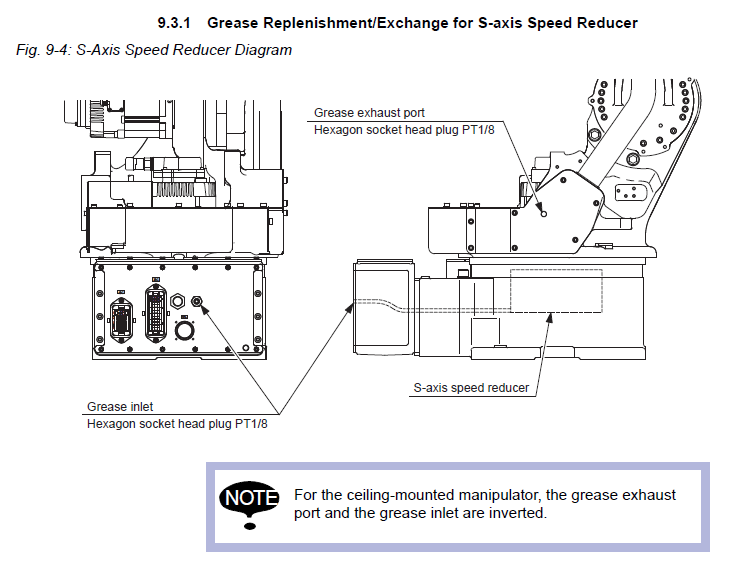

S-Axis: Vigo 70cc

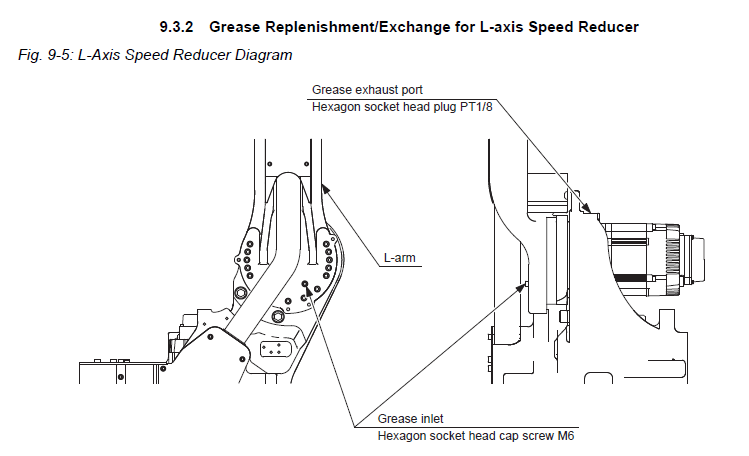

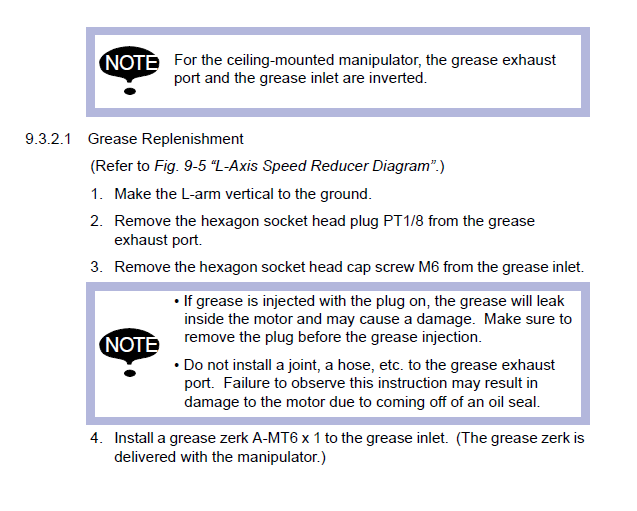

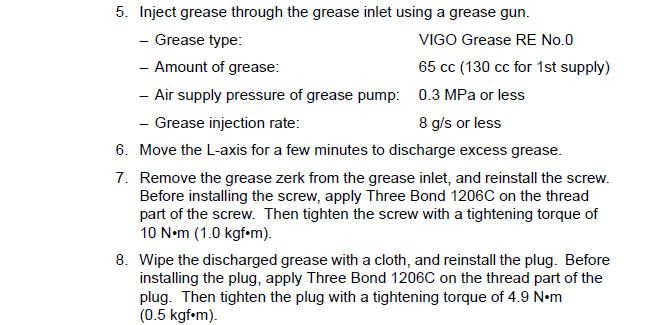

L-Axis: Vigo 65cc

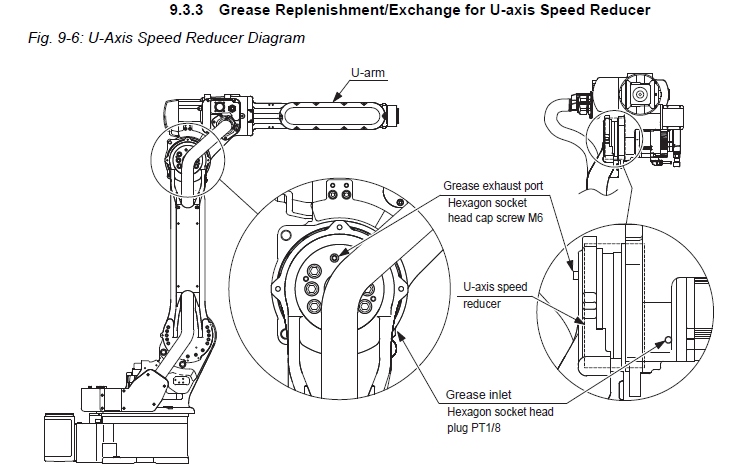

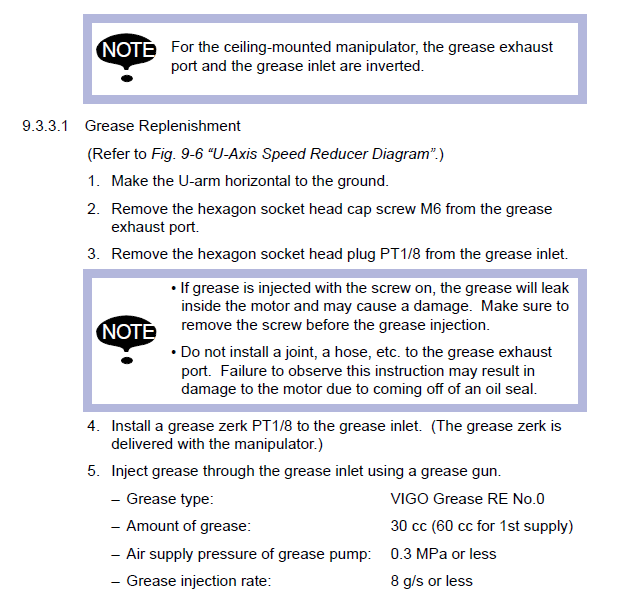

U-Axis: Vigo 30cc

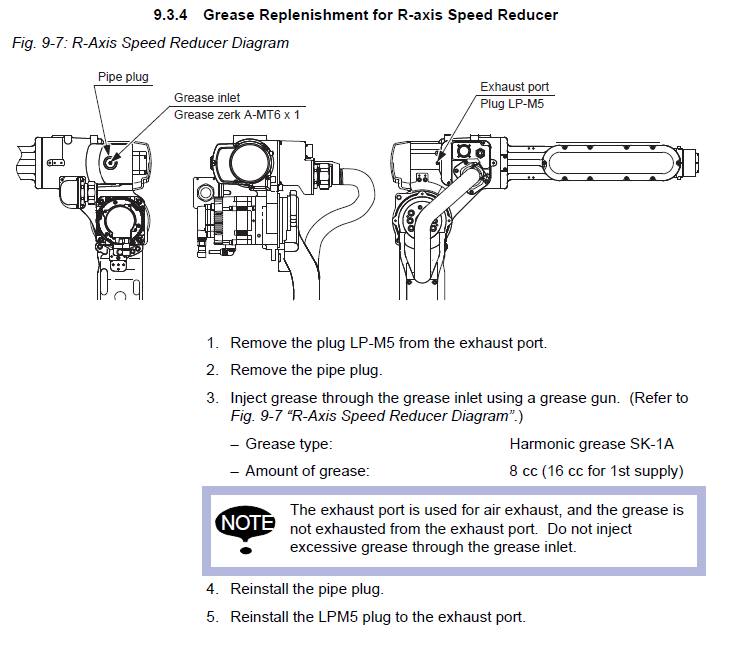

R-Axis Reducer: SK-1A 8cc

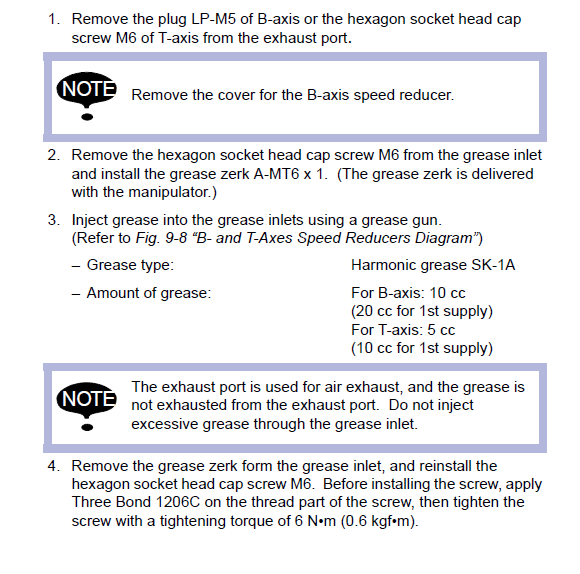

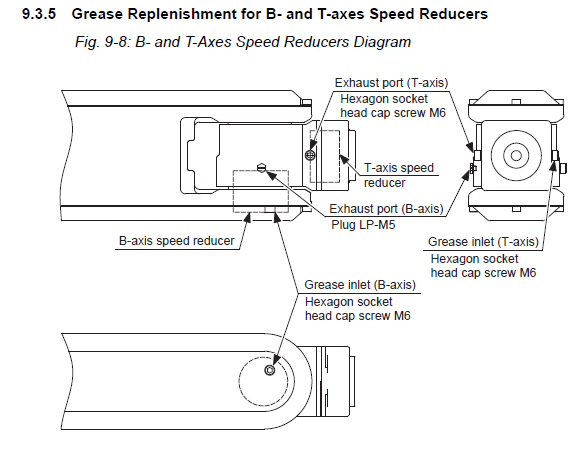

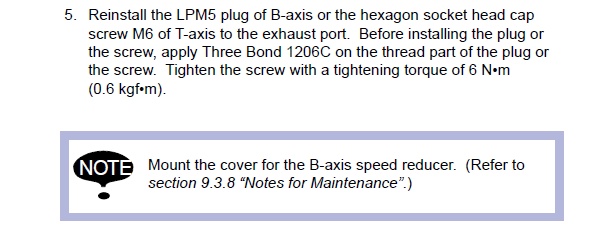

B-Axis Reducer: SK-1A 10cc
T-Axis Reducer: SK-1A 5cc

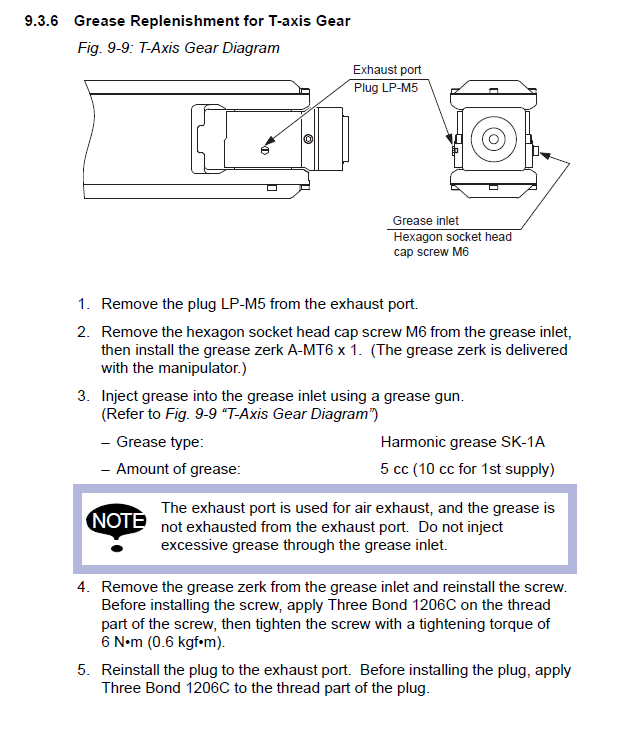

T-Axis Gear: SK-1A 5cc

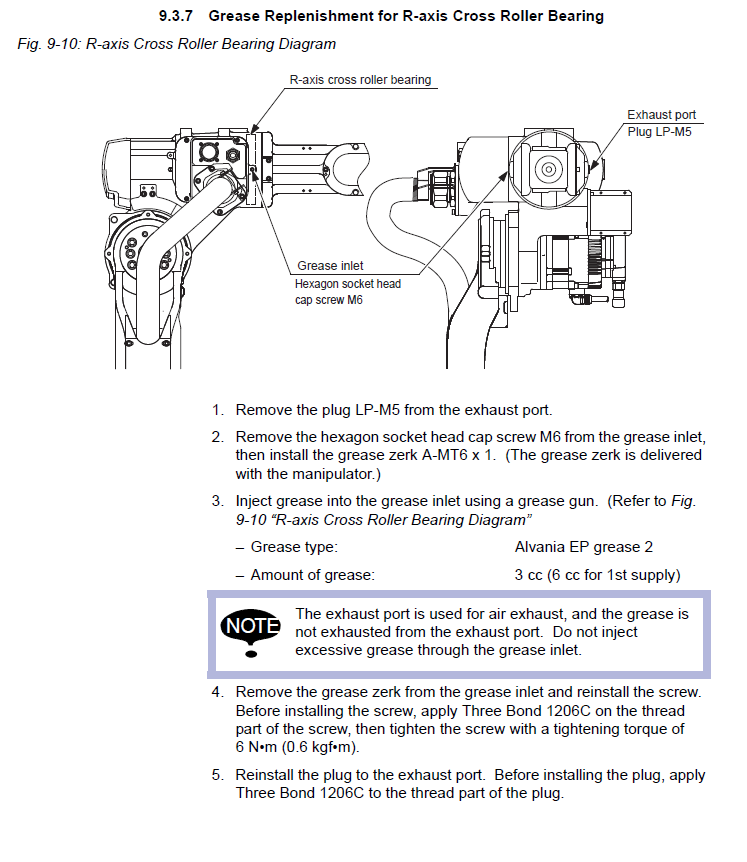

R-Axis Cross Roller Bearing: Alvania EP2 3cc
Grease Amounts Needed for Exchange:

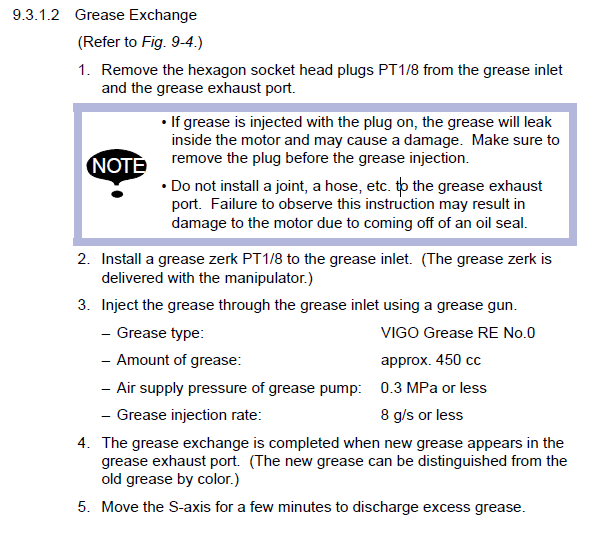

S-Axis: Vigo 450cc

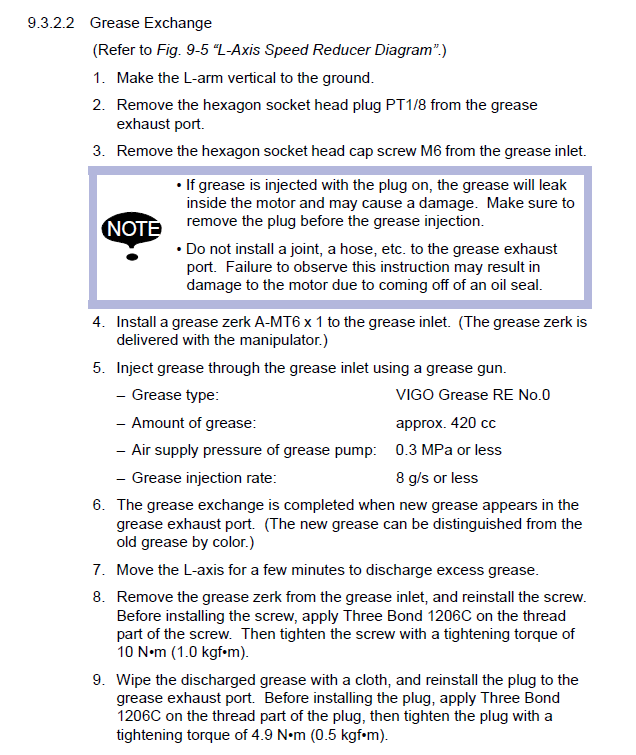

L-Axis: Vigo 420cc

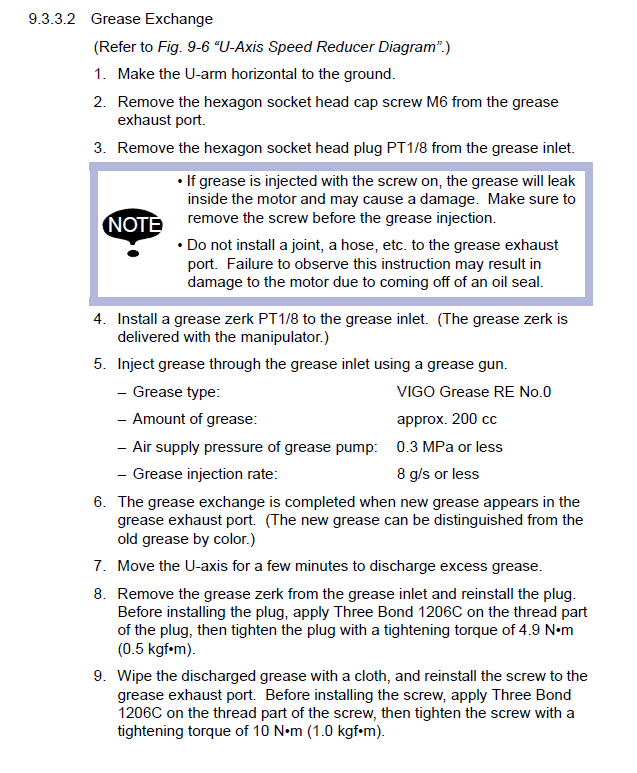

U-Axis: Vigo 200cc
R-Axis Reducer: SK-1A 8cc
B-Axis Reducer: SK-1A 10cc
T-Axis Reducer: SK-1A 5cc
R-Axis Cross Roller Bearing: Alvania EP2 3cc
Grease Amounts Needed for Exchange:
