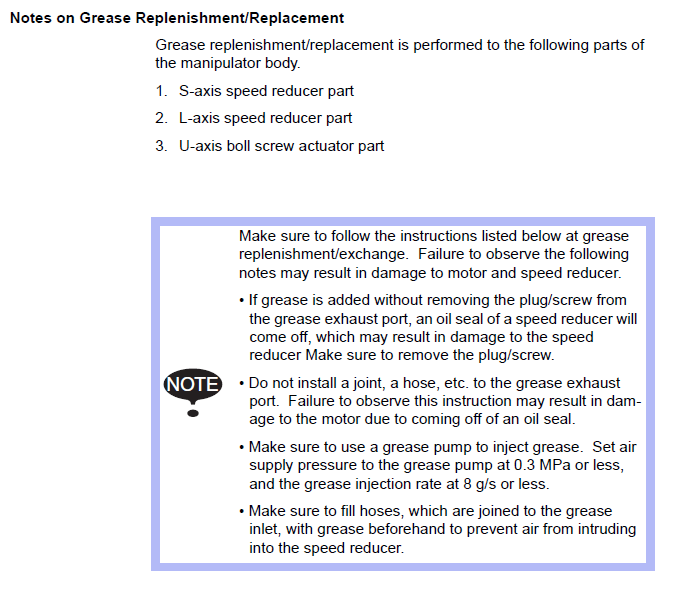

Grease Replenishment (PM) MPO10 / YR-MPO0010-C00 Manipulator

Model Covered: YR-MPO0010-C00

Material Required:

GREASE, VIGO #0, 16KG PAIL, 151945-1

ALVANIA EP GREASE 2 132177-1

Grease Amounts:

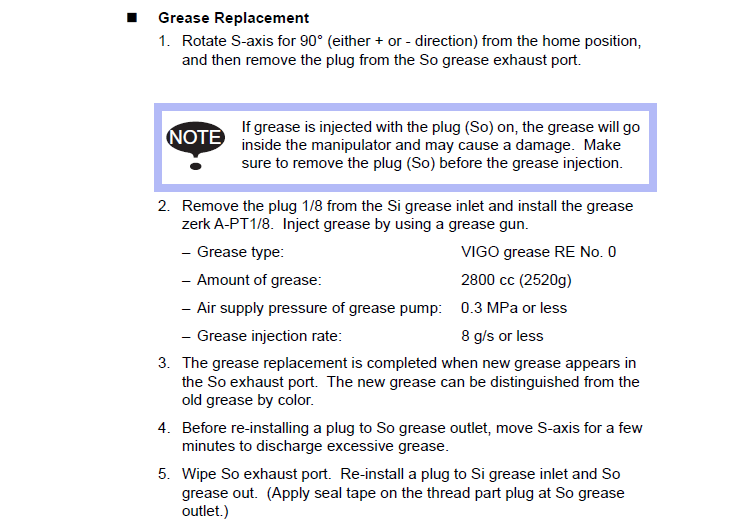

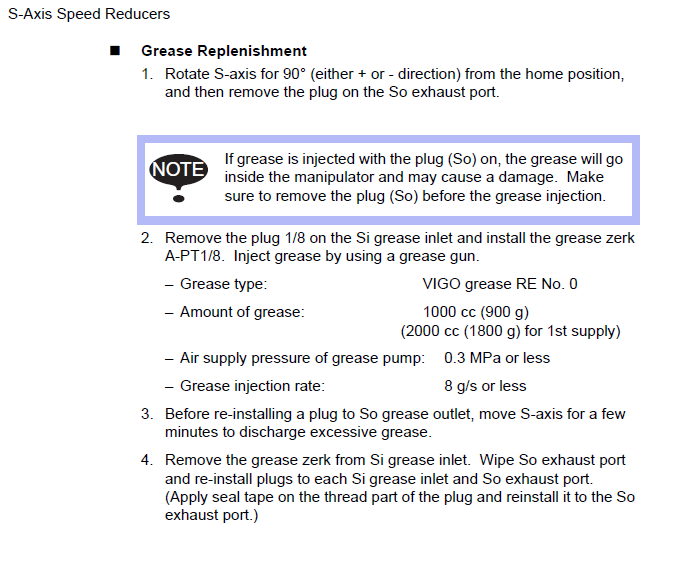

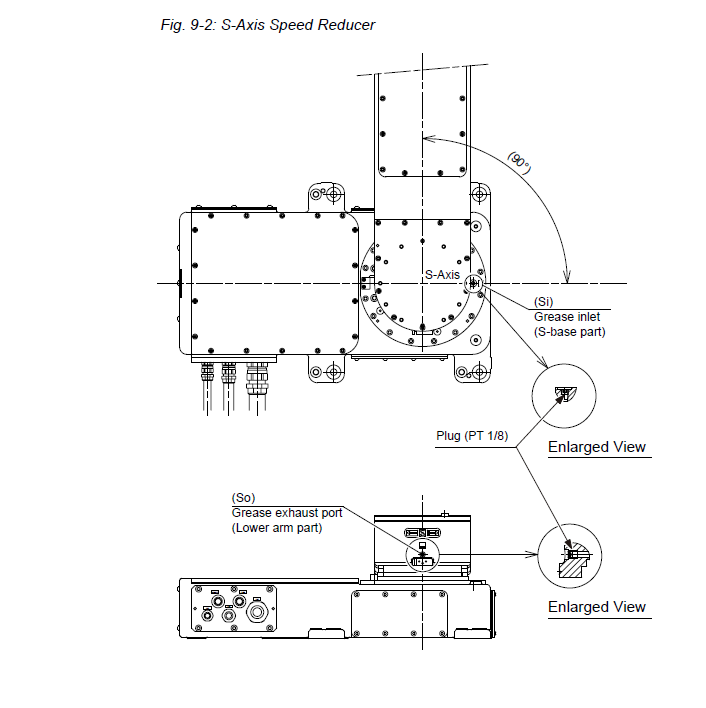

S-AXIS: 1000cc

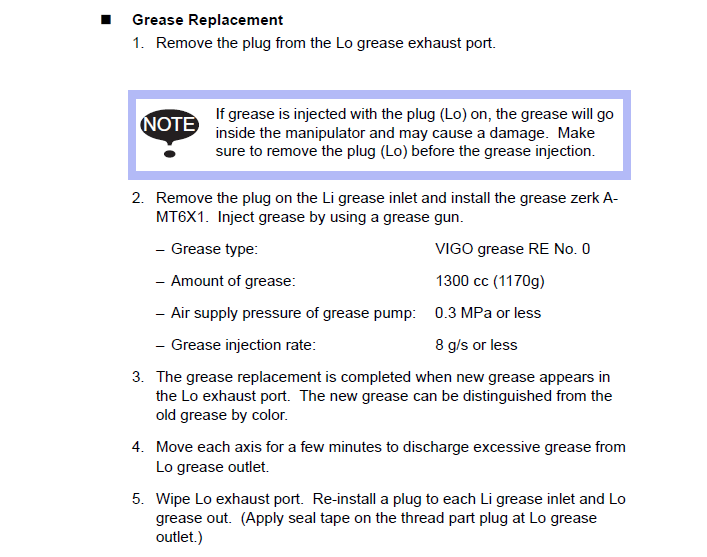

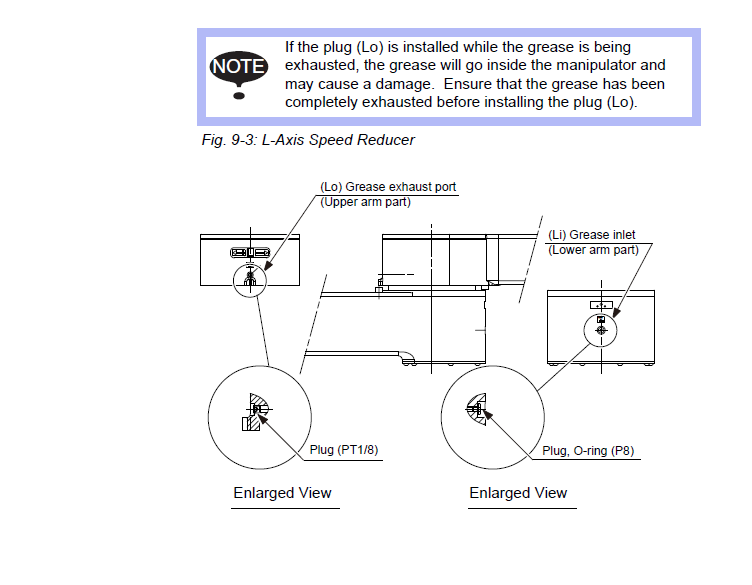

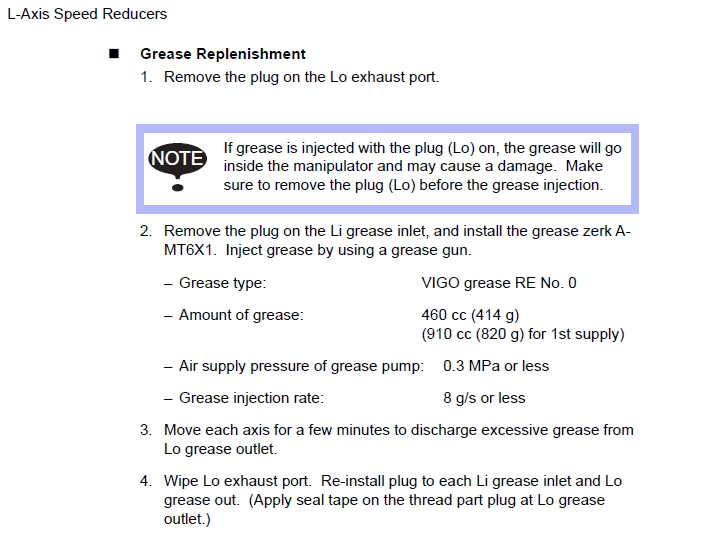

L-AXIS: 460cc

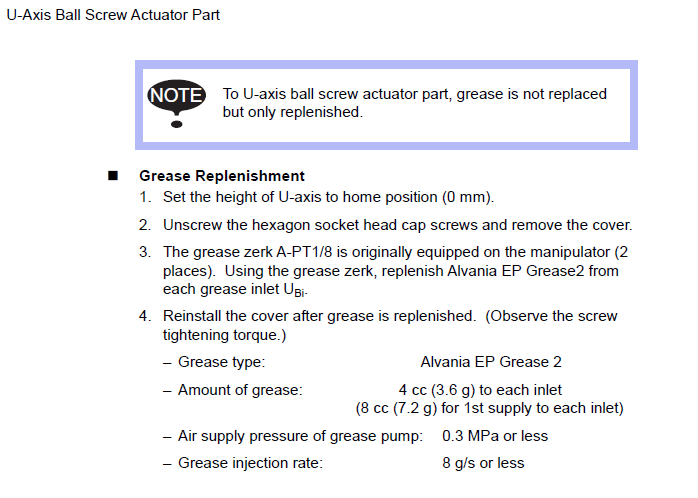

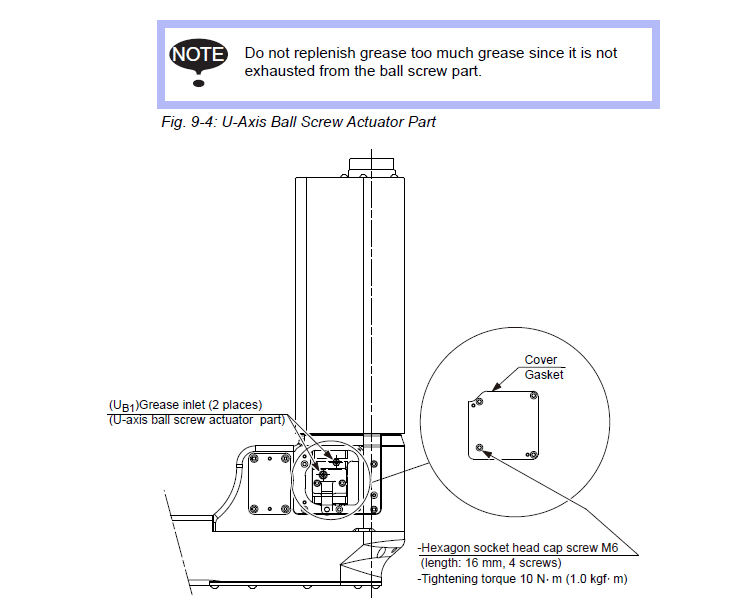

U-AXIS BALL SCREW: 4cc
