Grease Replenishment (PM) MH5LS II / YR-MH005LS-J00 Manipulator

Model Covered: YR-MH005LS-J00

Material Required:

Harmonic Grease SK-1A 479035-2

Three Bond 1206C 479014-6

Amount of Grease Needed:

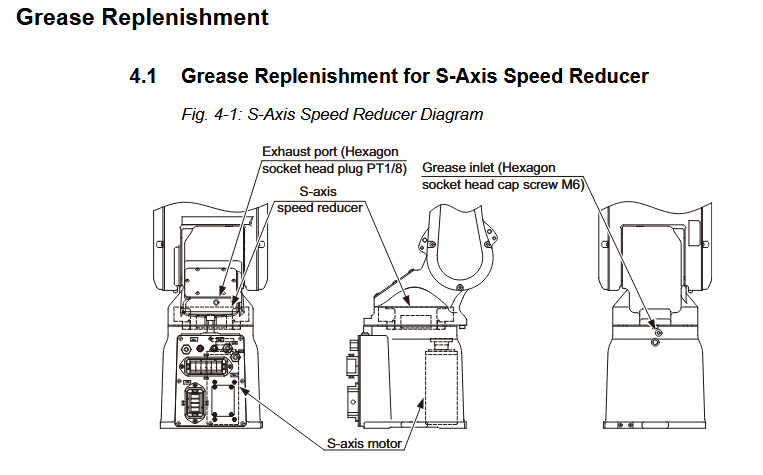

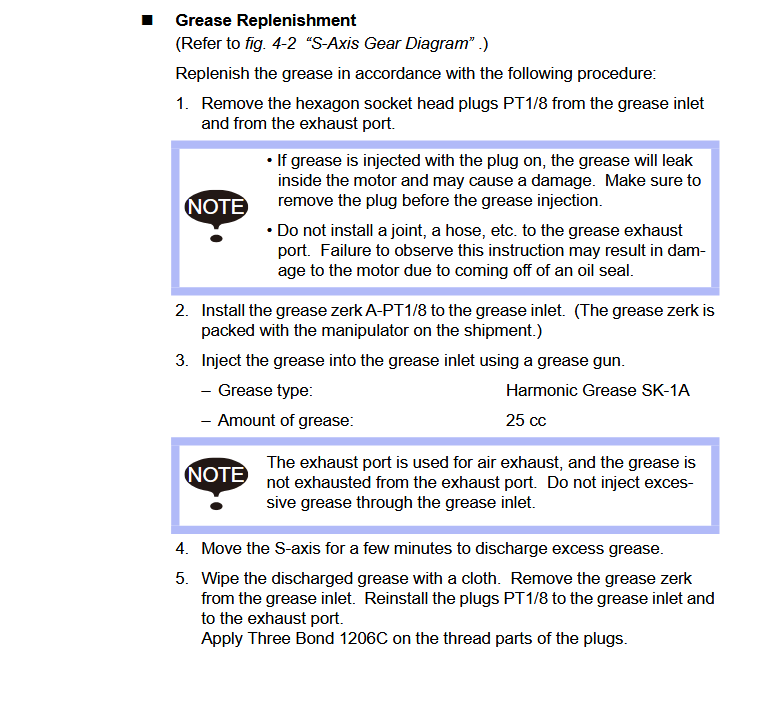

S-AXIS: 25cc

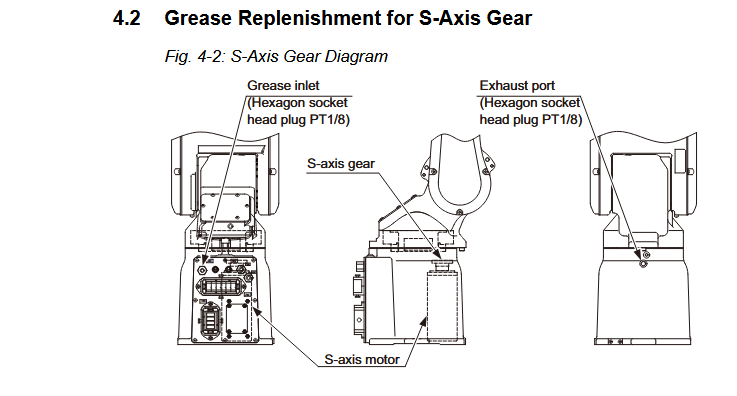

S-AXIS GEAR: 25cc

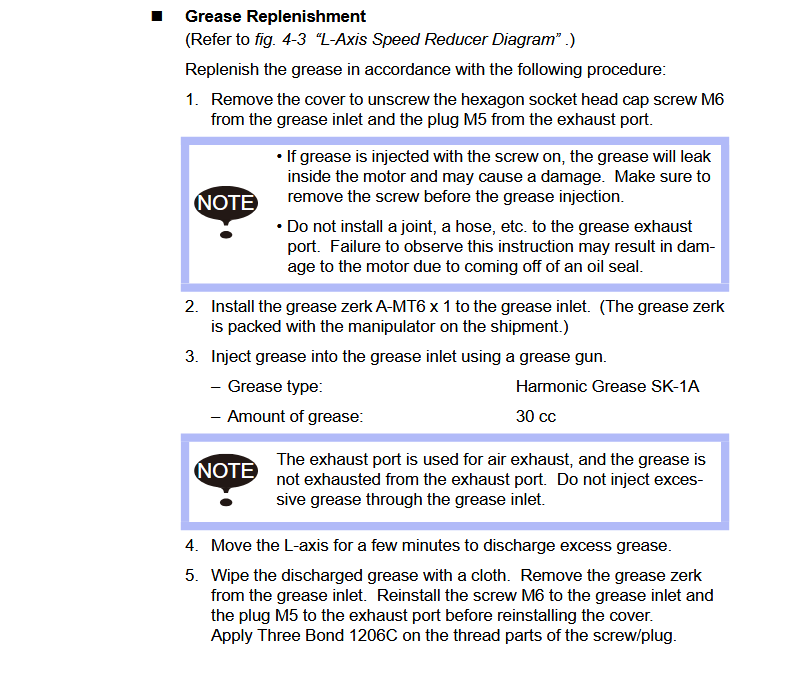

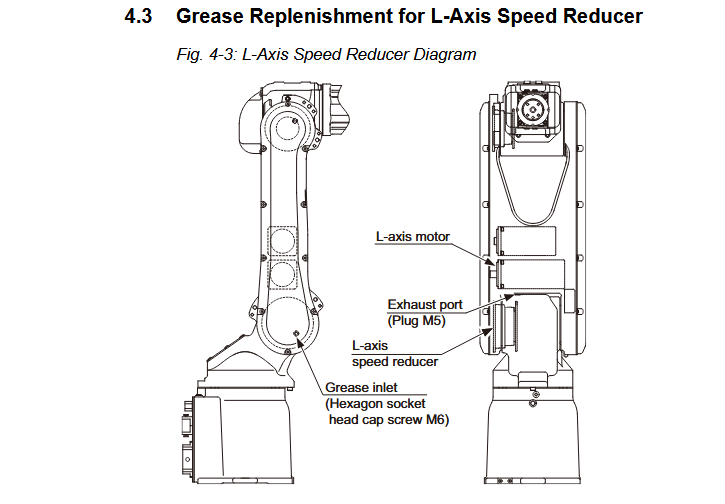

L-AXIS: 30cc

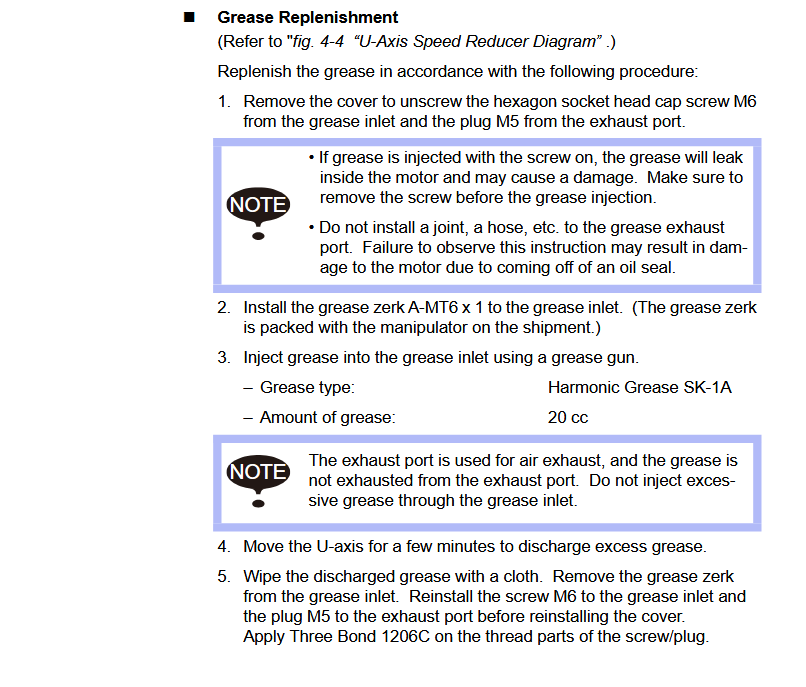

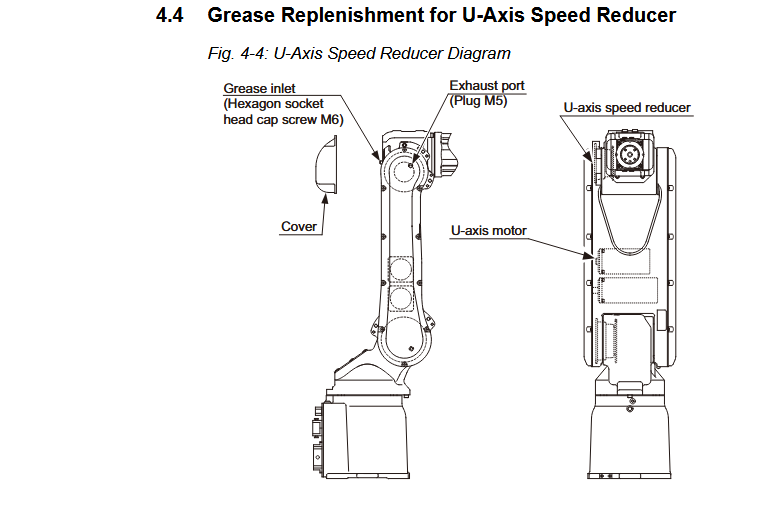

U-AXIS: 20cc

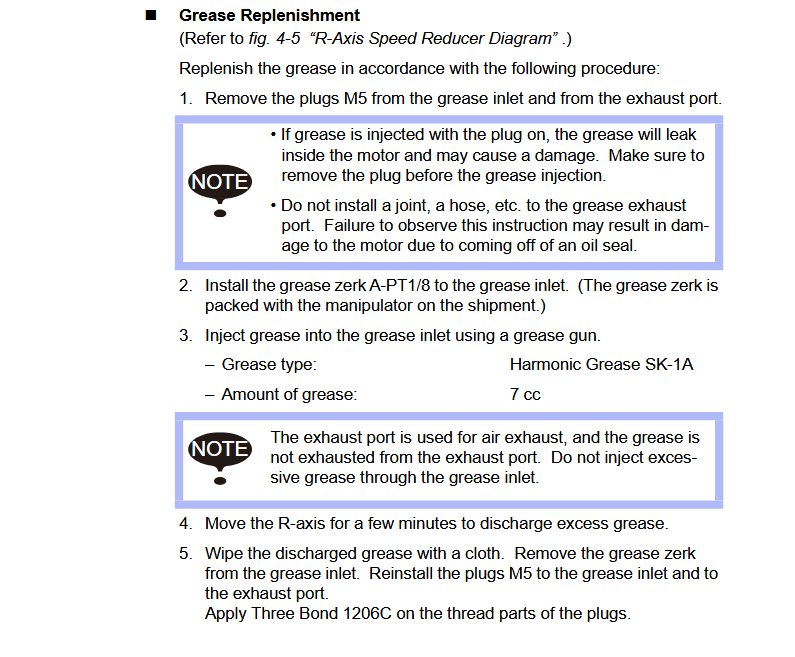

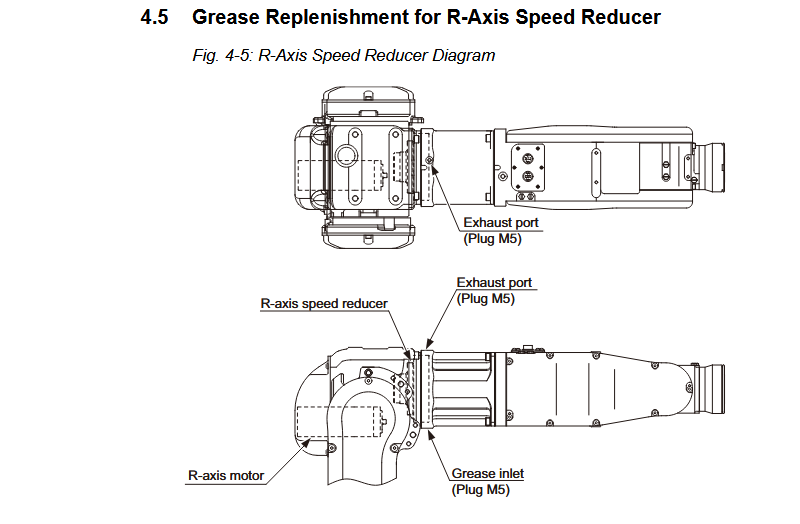

R-AXIS: 7cc

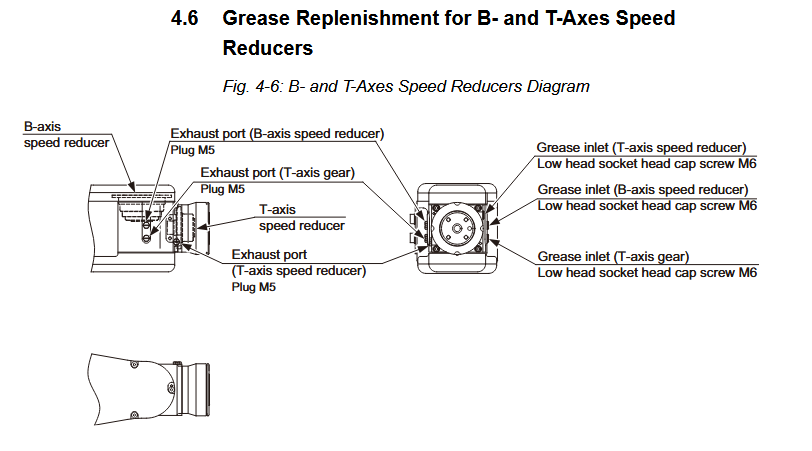

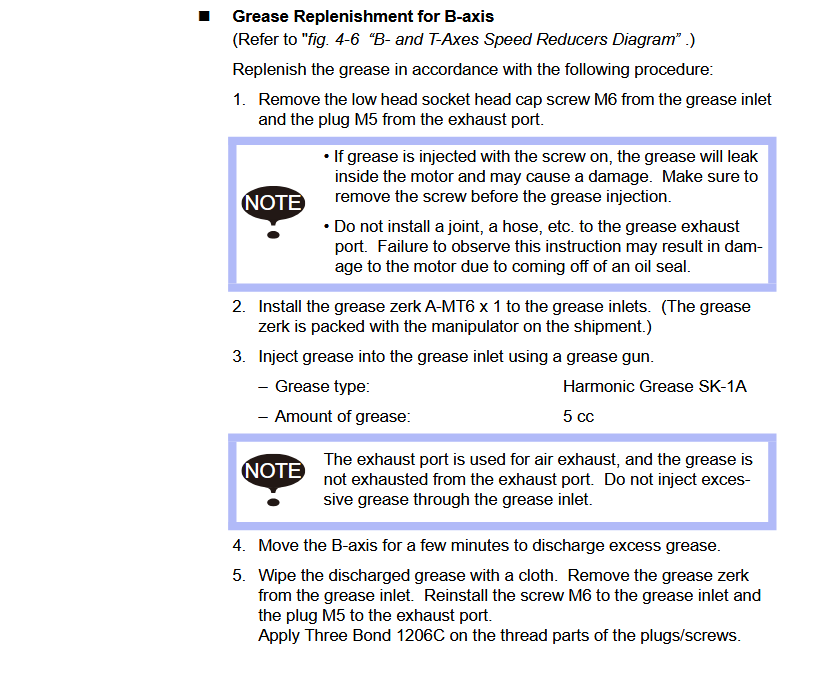

B-AXIS: 5cc

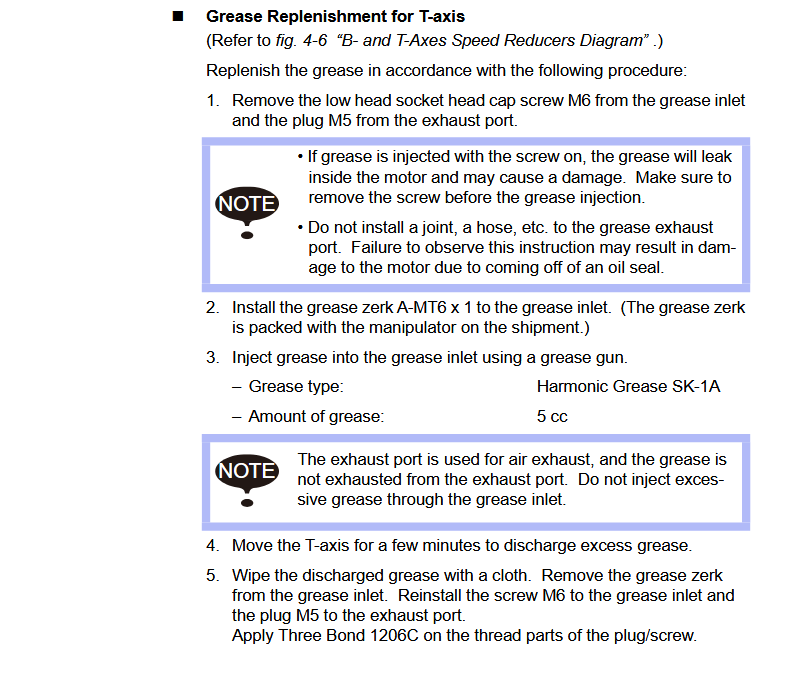

T-AXIS: 5cc
