Grease Procedure (PM) HP20D / YR-HP0020D-A00 Manipulator

Model Covered: YR-HP0020D-A00

Material Required:

VIGO Grease RE No. 0 151945-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

ThreeBond 1206C 479014-6

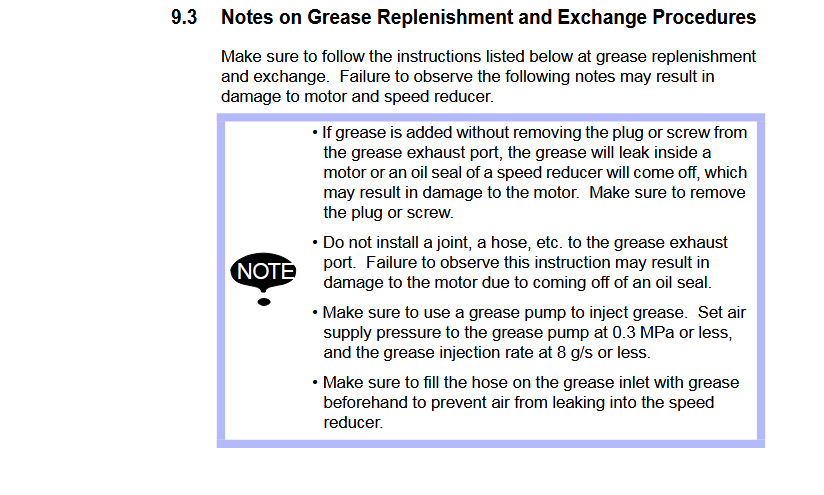

Grease Replenishment Amounts:

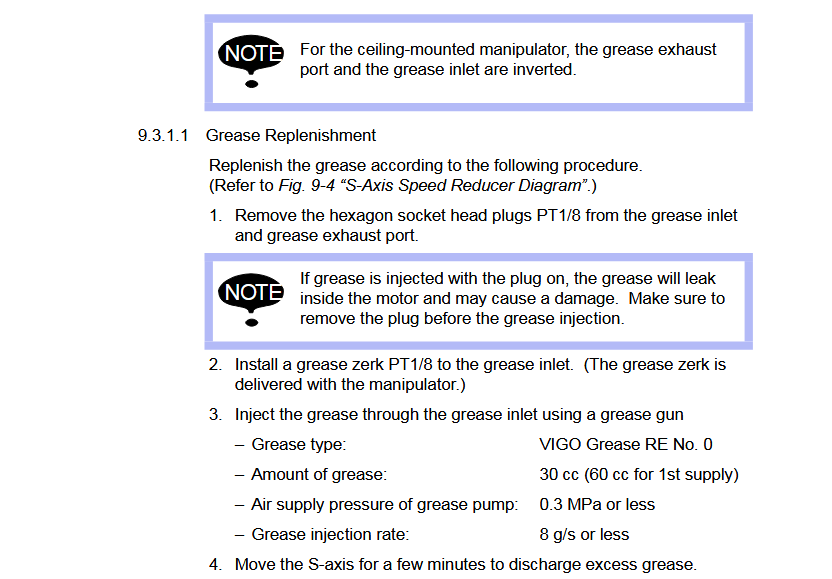

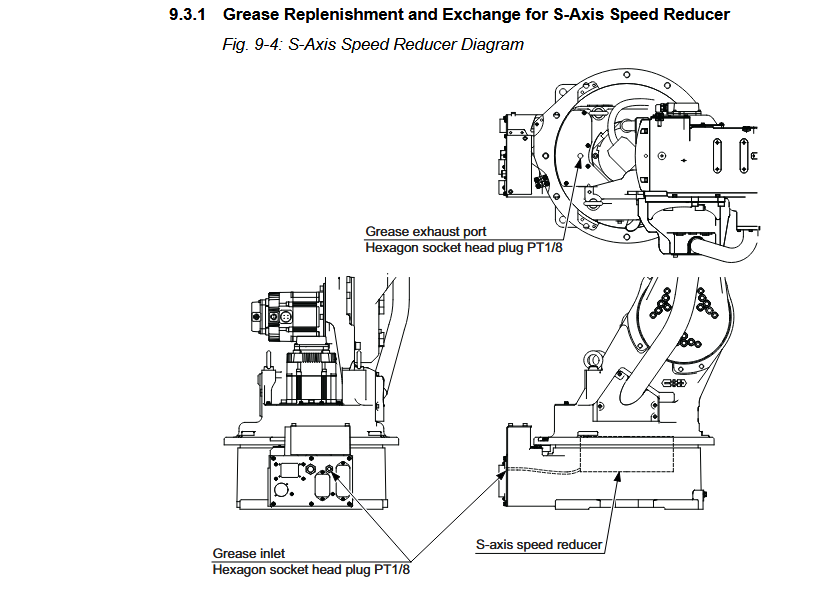

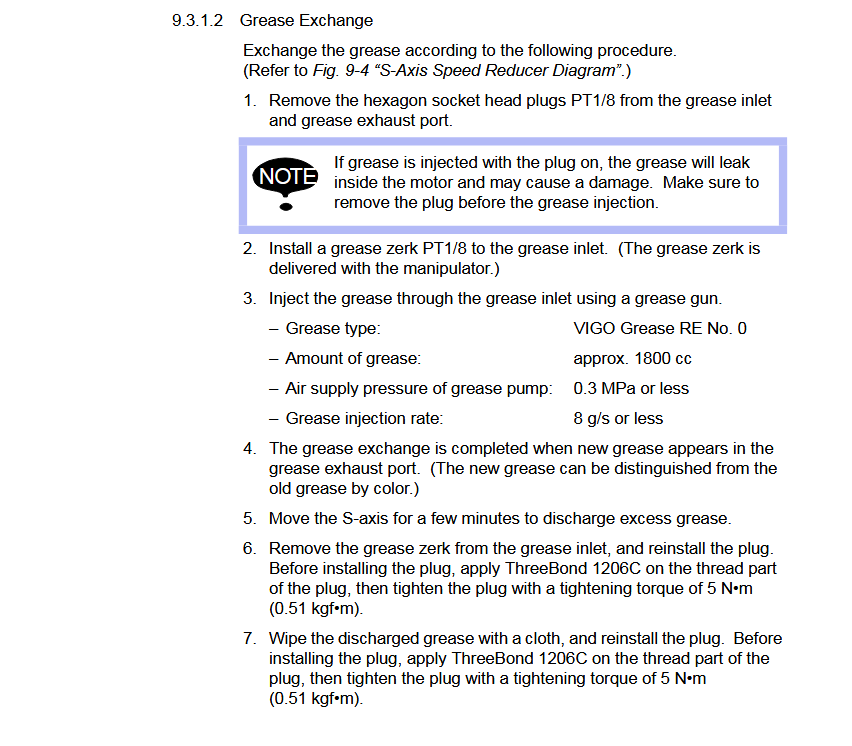

S-AXIS: Vigo Grease 30cc

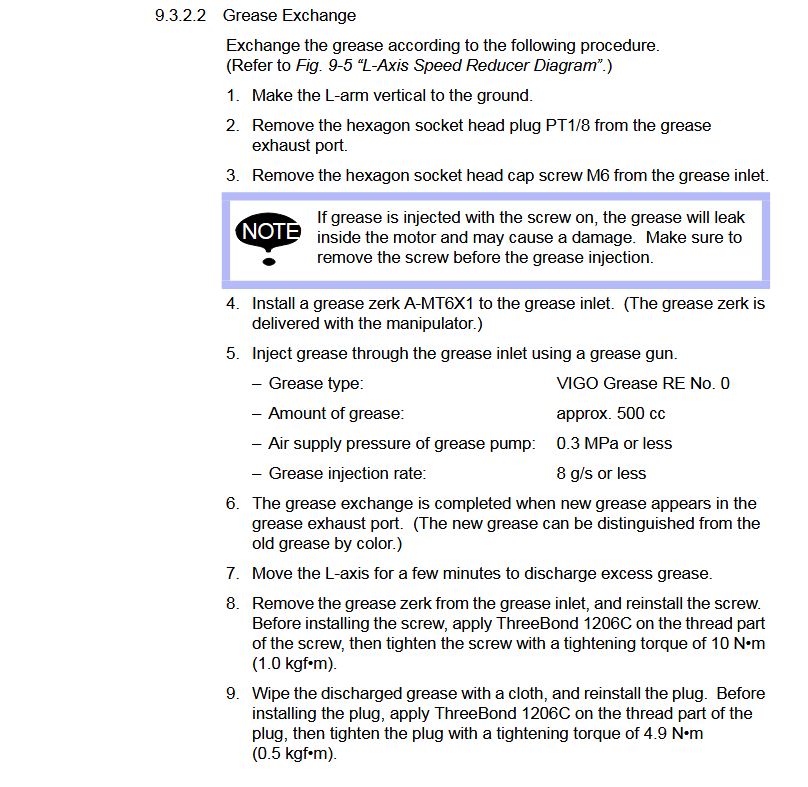

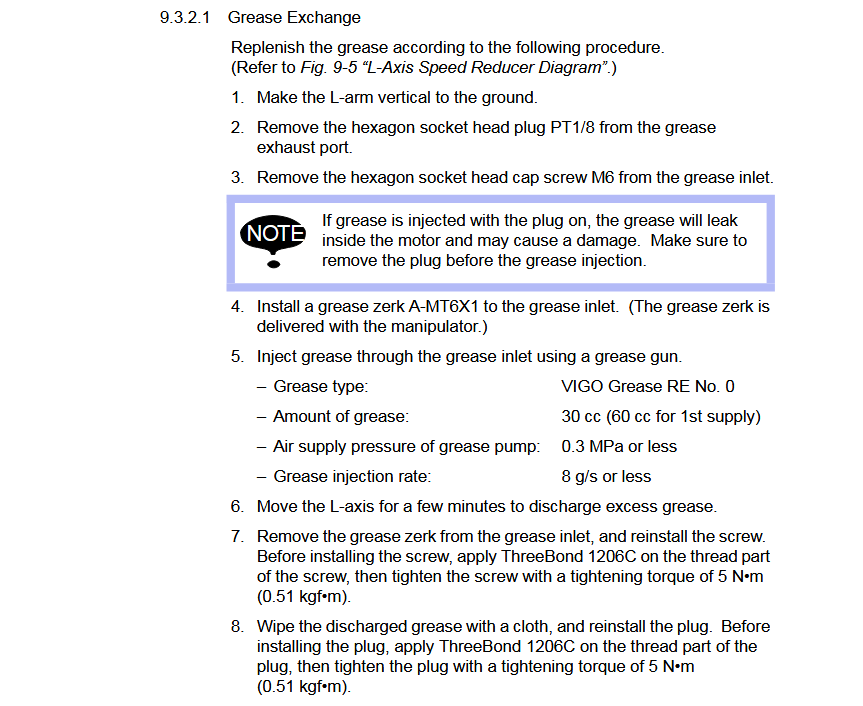

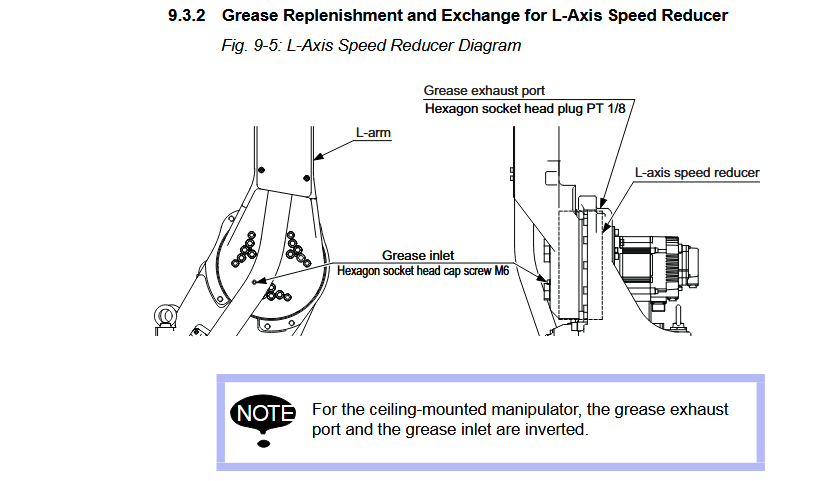

L-AXIS: Vigo Grease 30cc

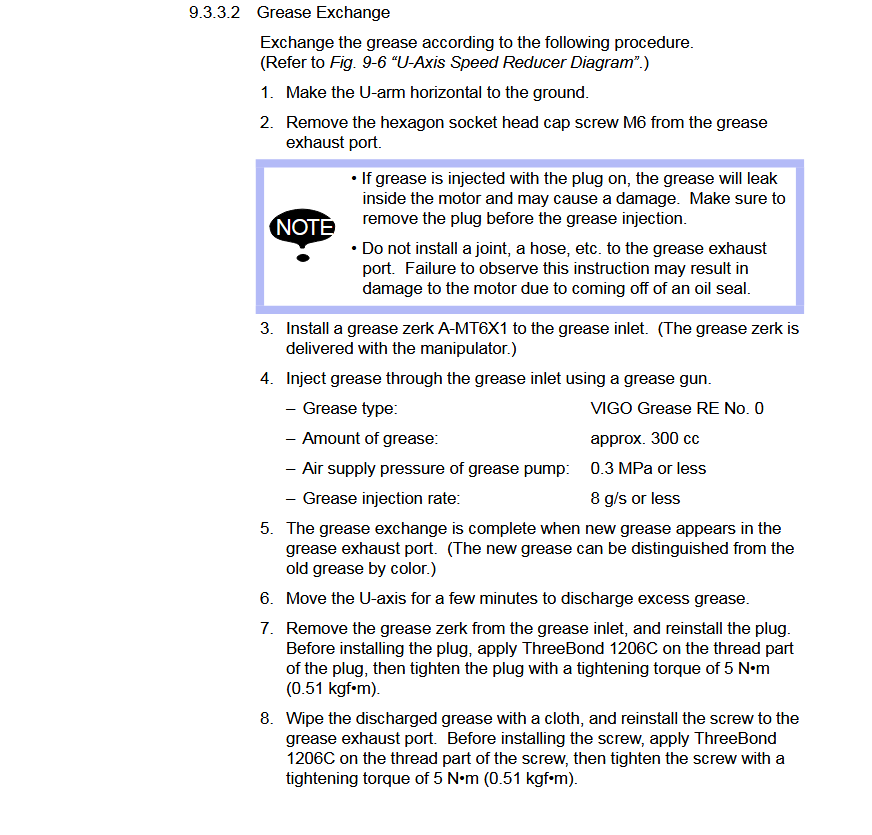

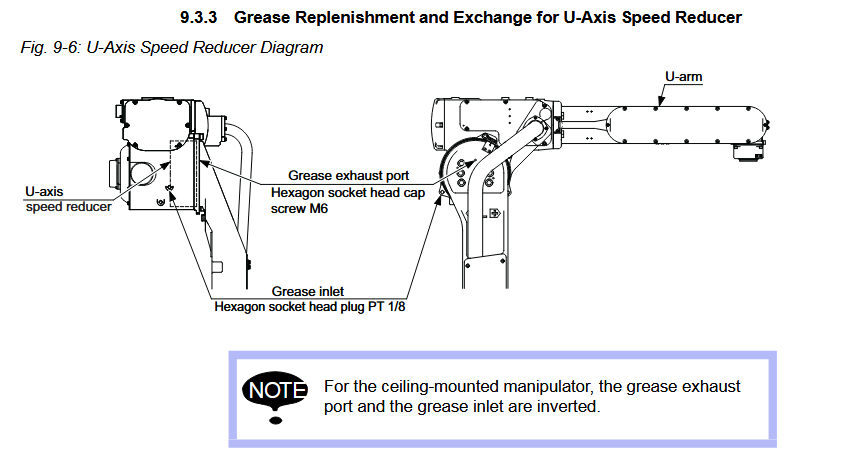

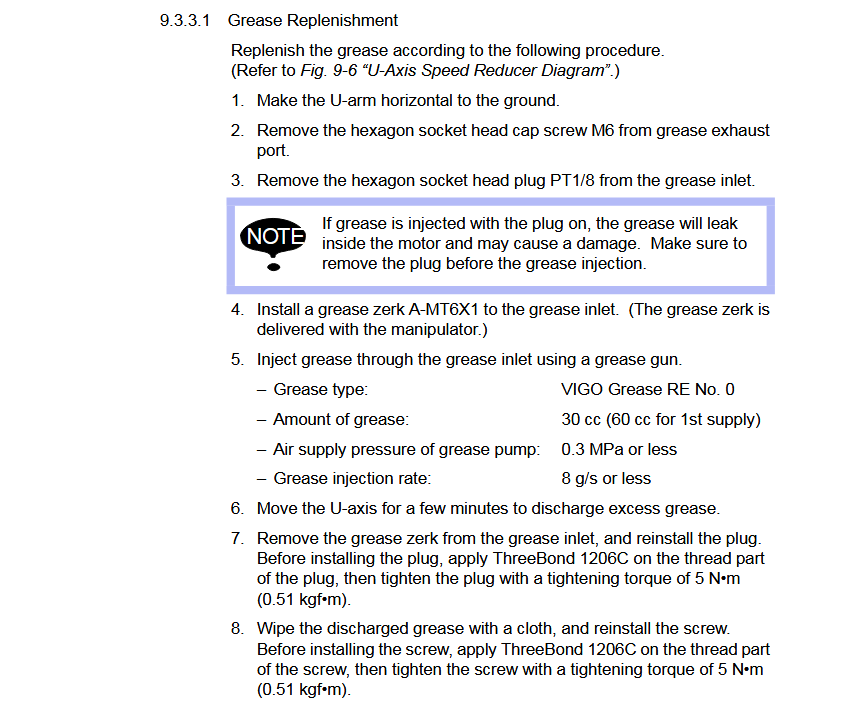

U-AXIS: Vigo Grease 30cc

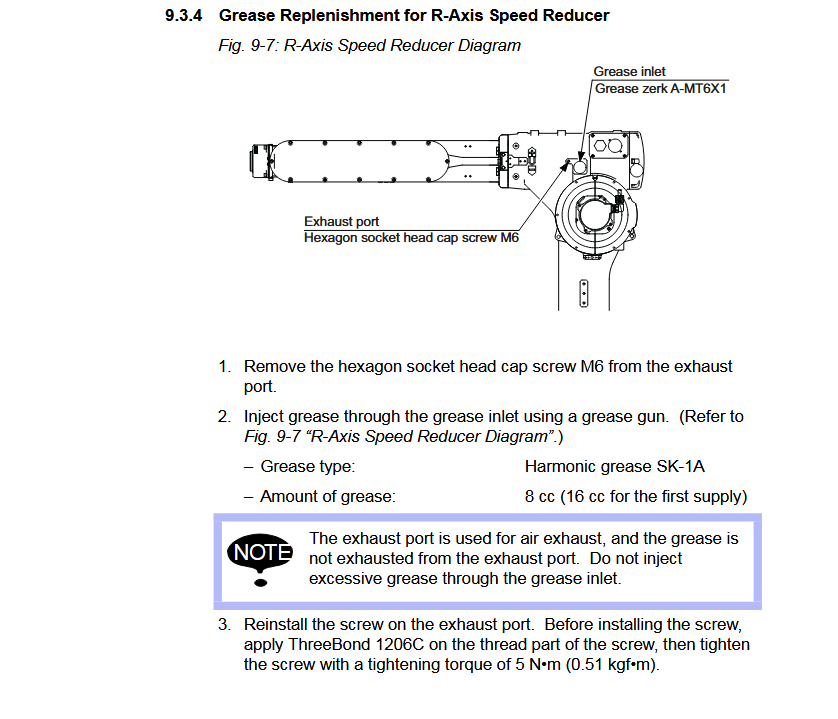

R-AXIS: SK1 Grease 8cc

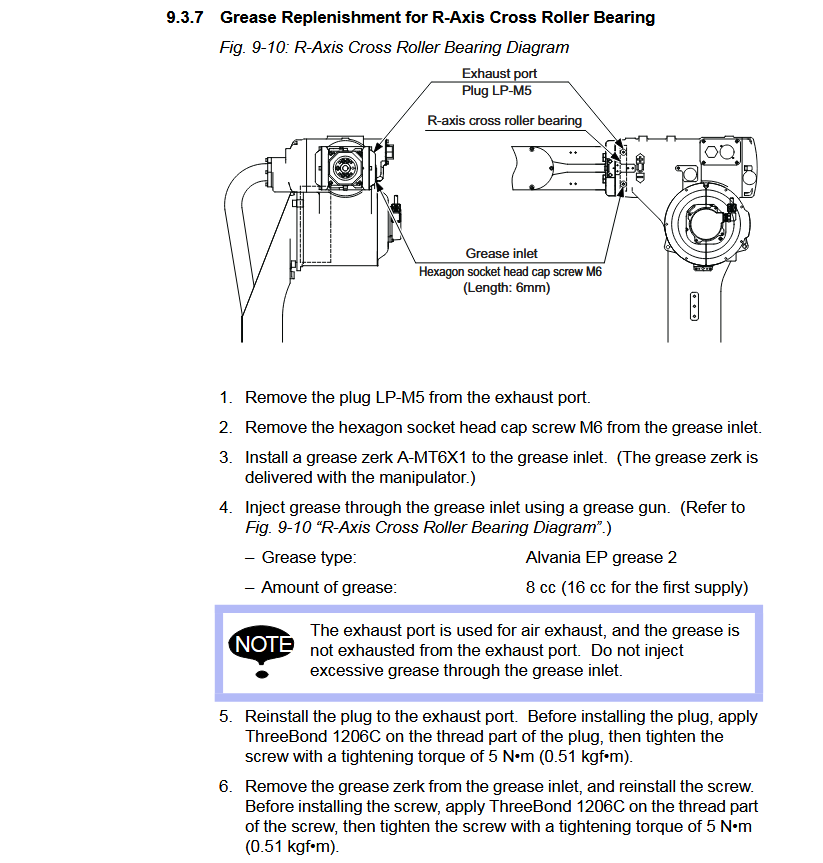

R-AXIS BEARING: EP2 Grease 8cc

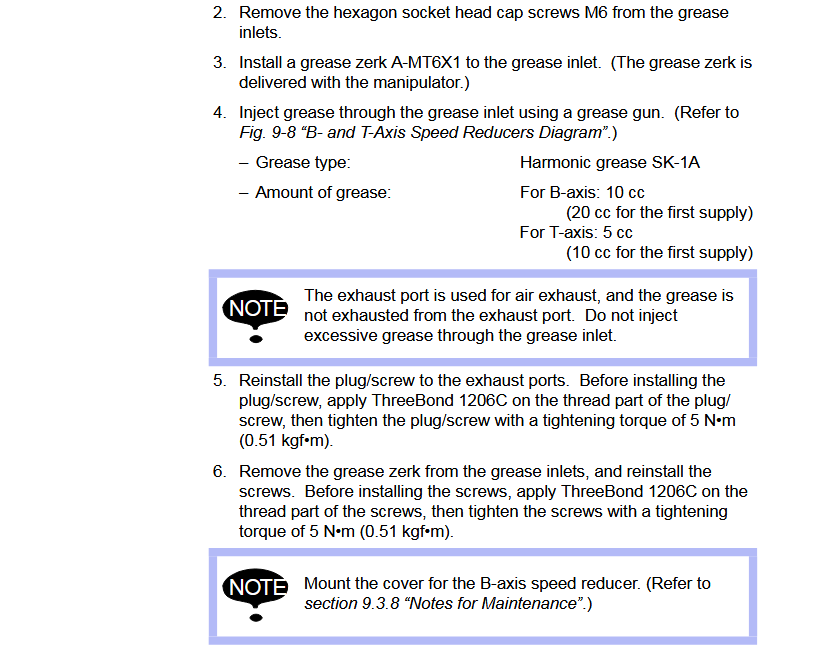

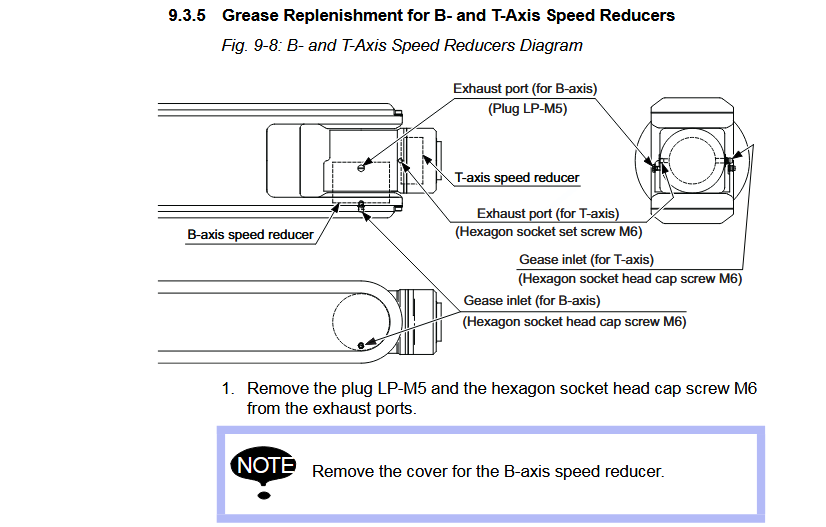

B-AXIS: SK1 Grease10cc

T-AXIS: SK1 Grease 5cc

T-AXIS GEAR: SK1 Grease 5cc
