Grease Procedure (PM) HP20D / YR-HP0020D-C01 Manipulator

Model Covered: YR-HP0020D-C01

Material Required:

VIGO GREASE RE NO. 0 151945-1

HARMONIC GREASE SK-1A 479035-2

ALVANIA EP GREASE 2 132177-1

THREE BOND 1206C 479014-6

Amount Of Grease:

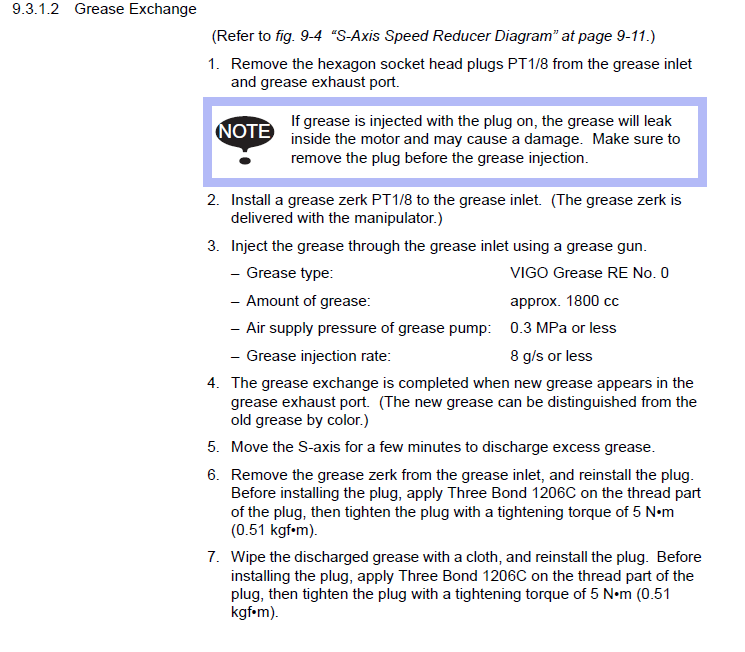

S-AXIS: VIGO 360cc

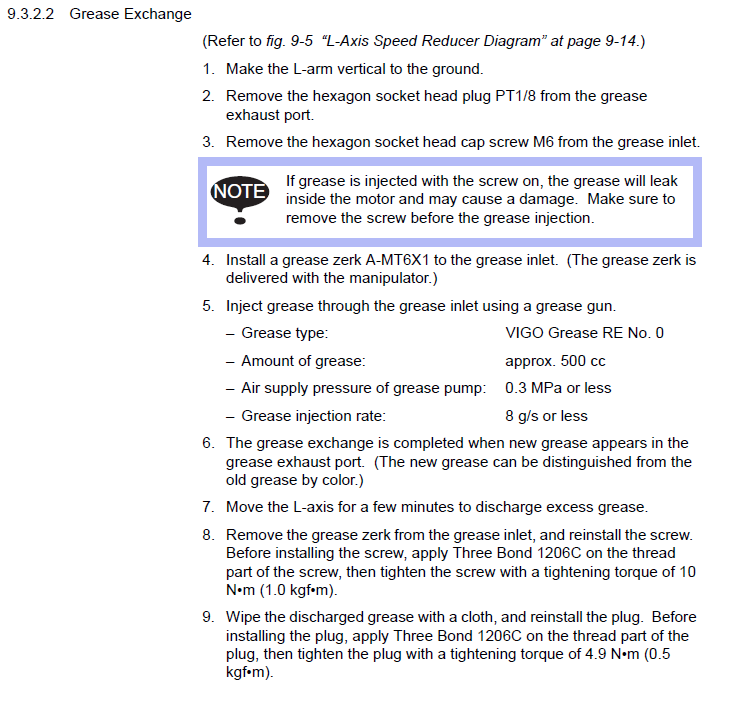

L-AXIS: VIGO 100cc

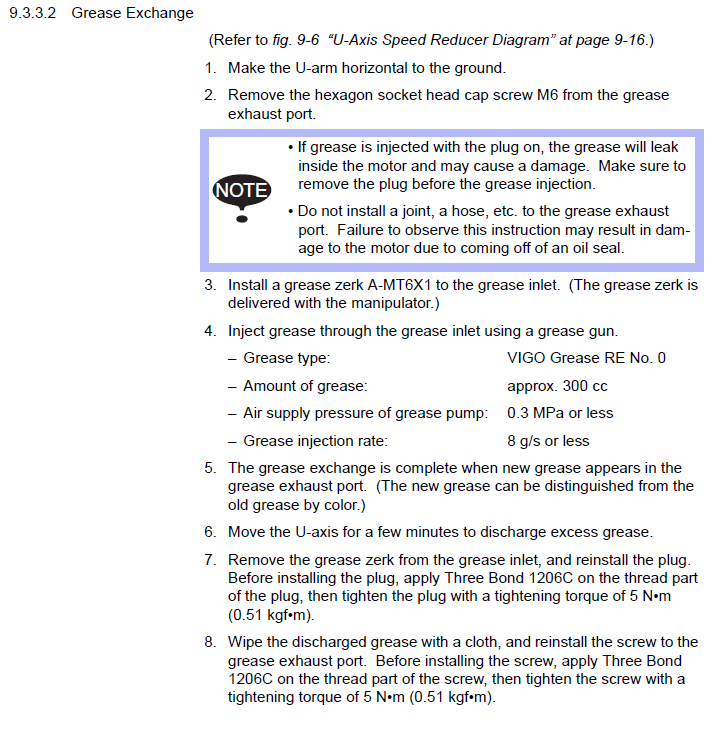

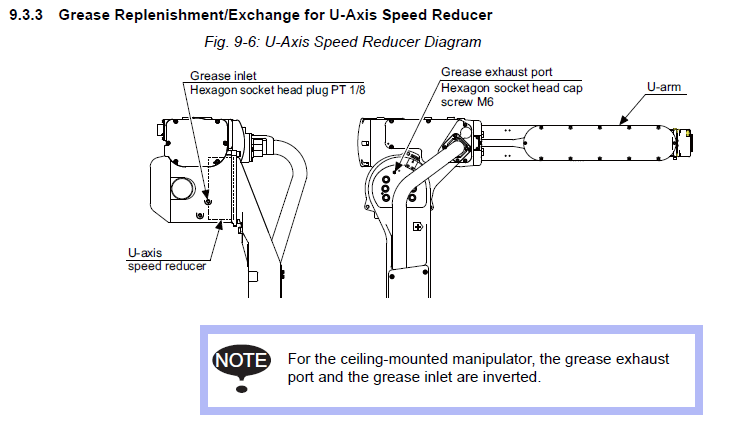

U-AXIS: VIGO 60cc

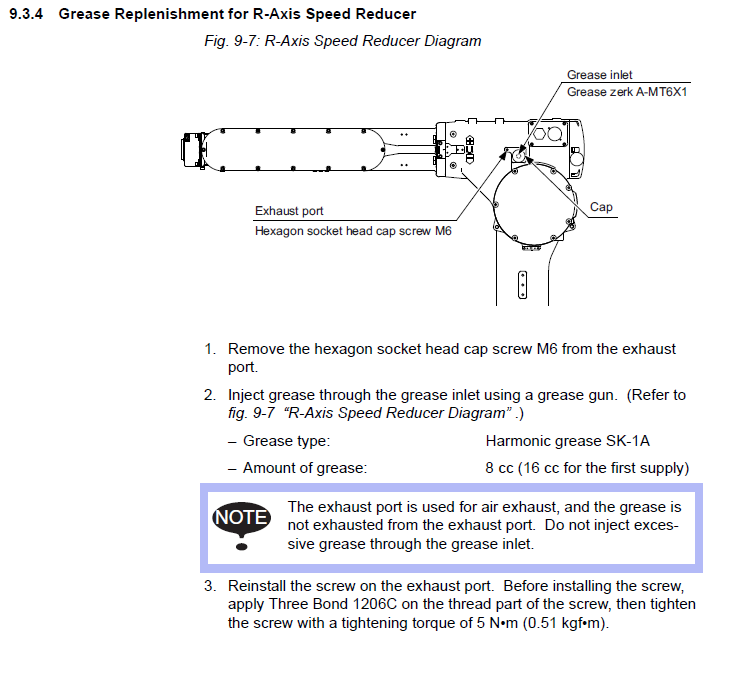

R-AXIS: SK-1A 8cc

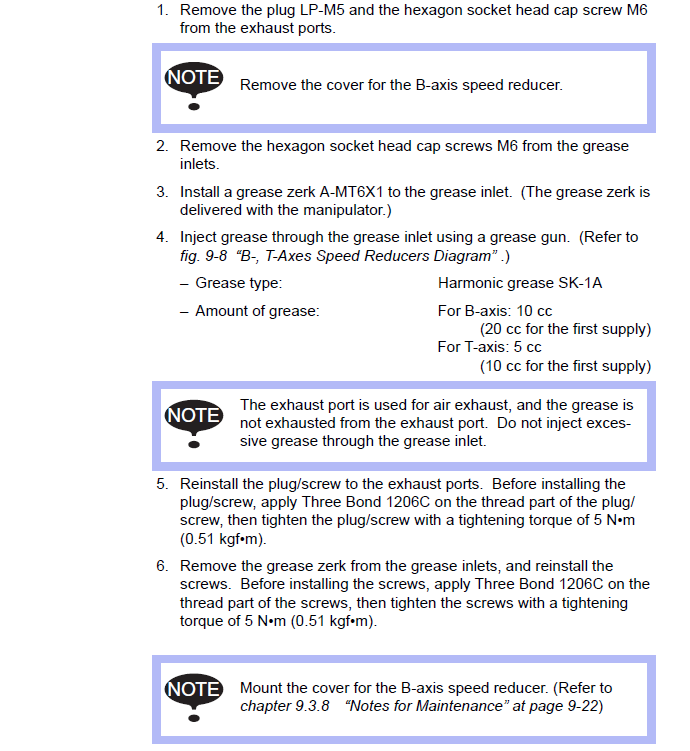

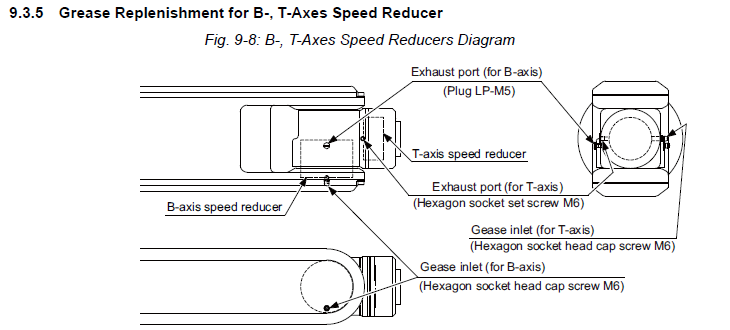

B-AXIS: SK-1A 10cc

T-AXIS: SK-1A 5cc

T-AXIS GEAR: SK-1A 5cc

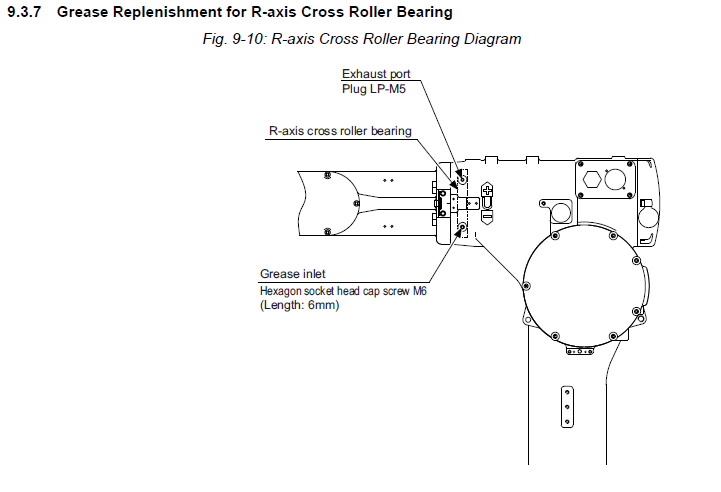

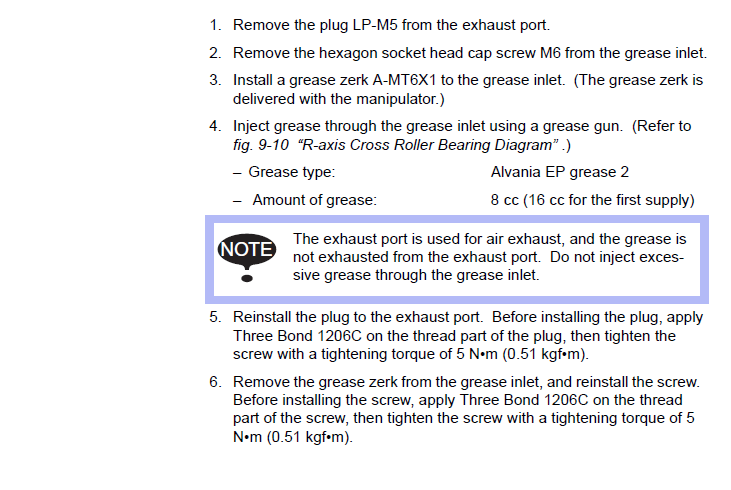

R-AXIS CROSS ROLLER BEARING: EP2GREASE 8cc
