Grease Replenishment (PM) DX100 MPL80 / YR-MPL0080-A00 Manipulator

Model Covered: YR-MPL0080-A00

Materials Required:

GREASE, MOLY WHITE, #00, 16KG PAIL 132412-1

THREE BOND 1206C Adhesive Gasket 479014-6

Grease Replenishment Amounts:

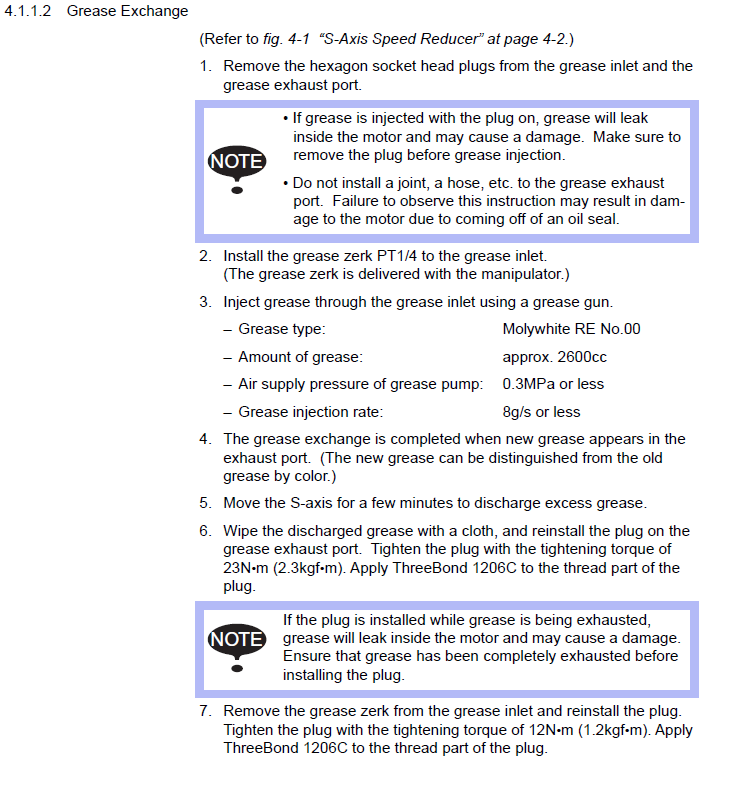

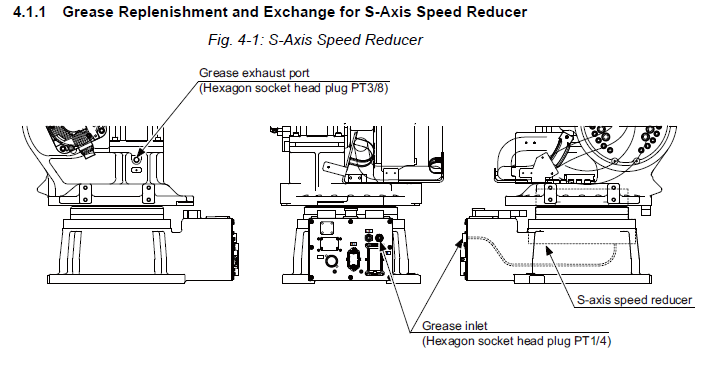

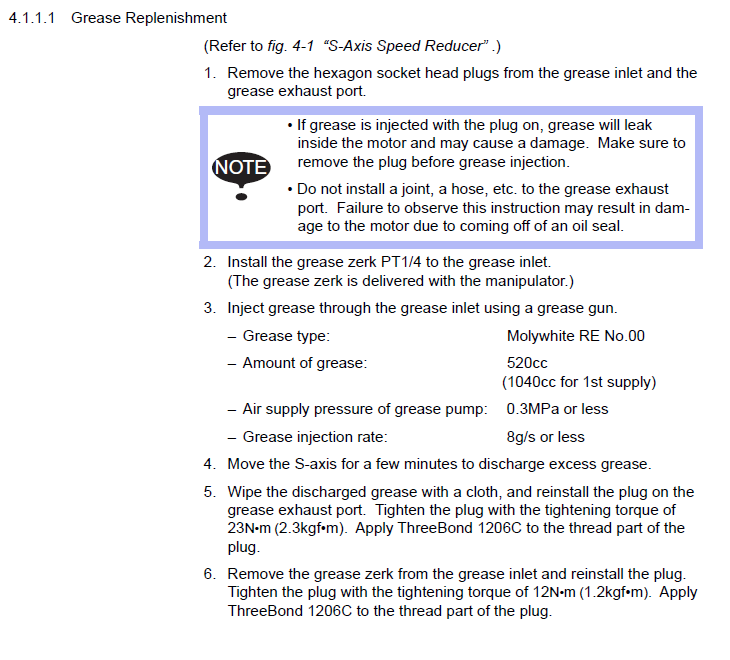

S-AXIS: 520cc

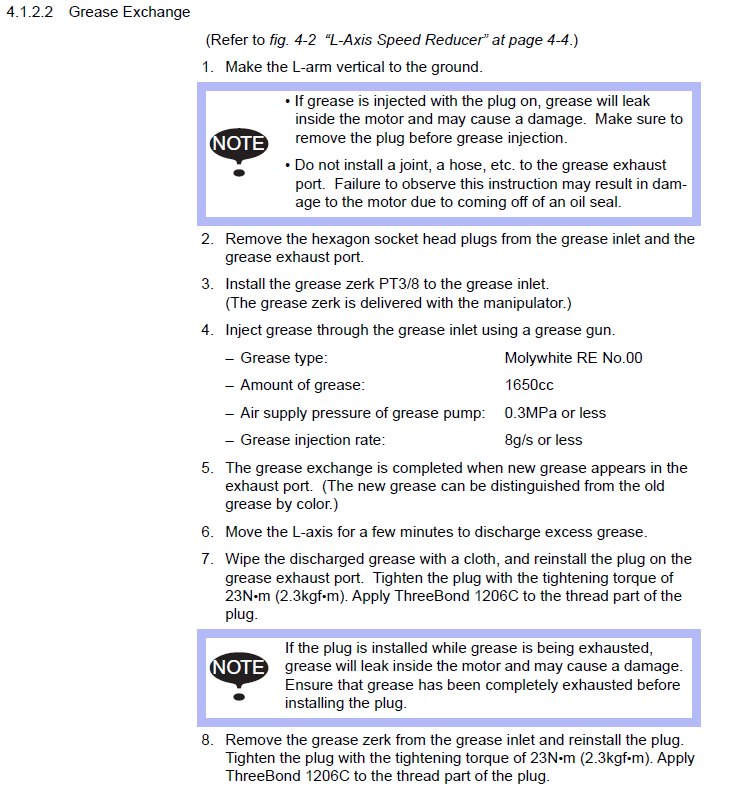

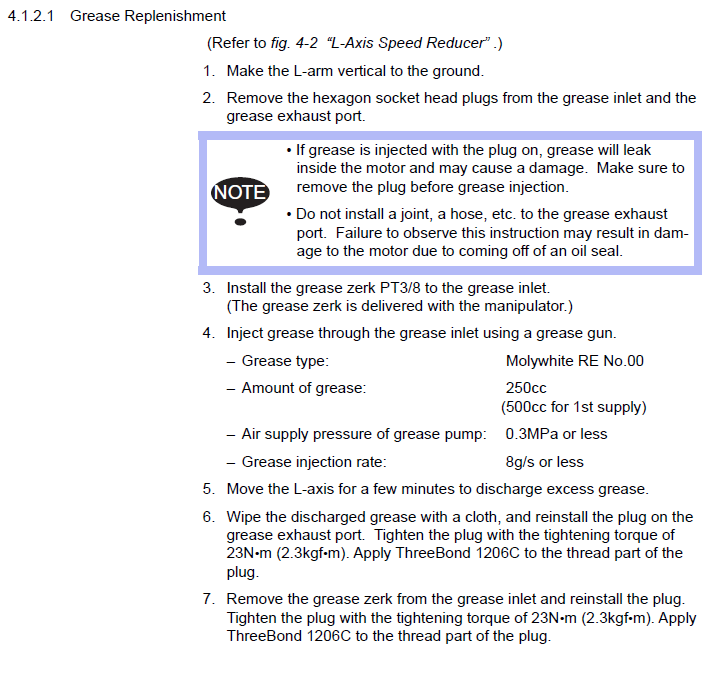

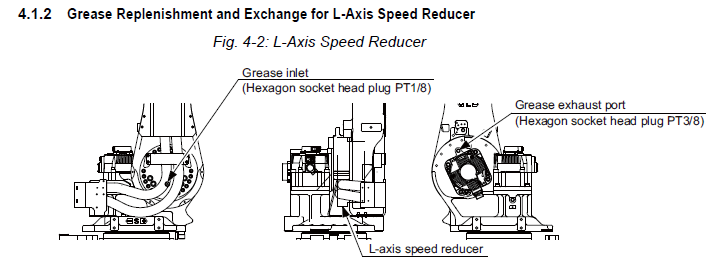

L-AXIS: 250cc

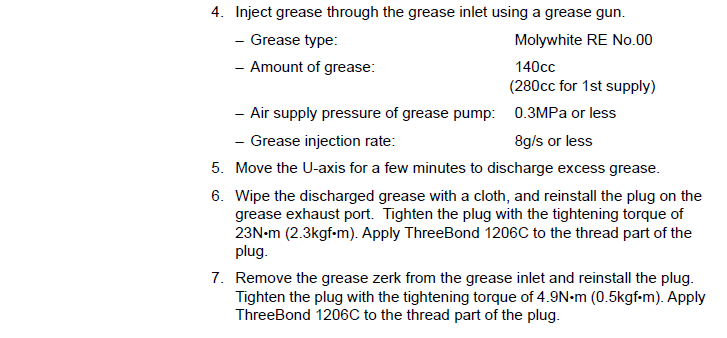

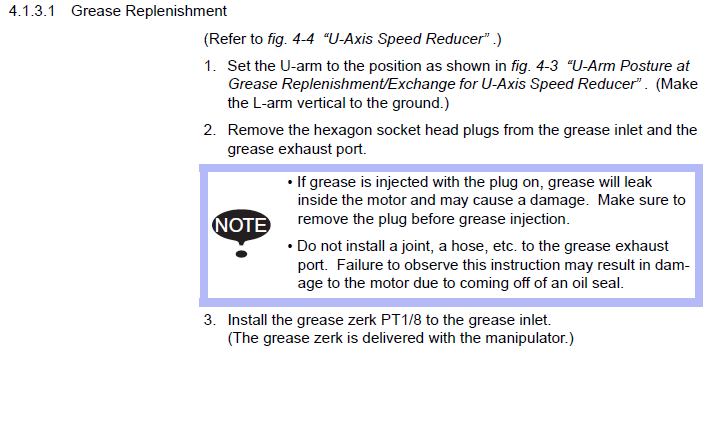

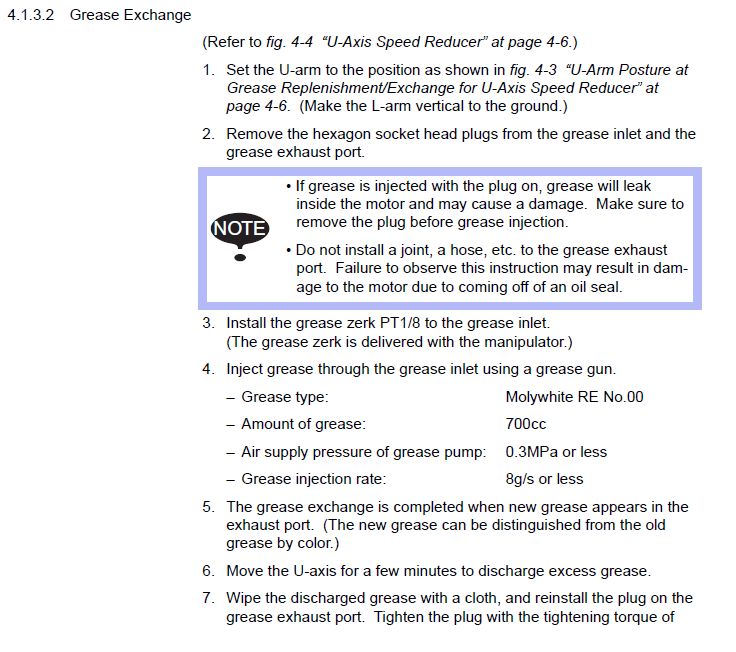

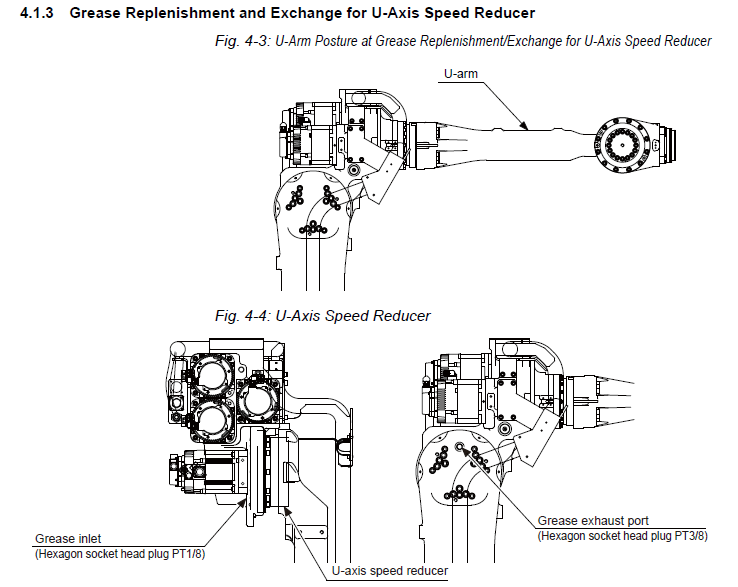

U-AXIS: 140cc

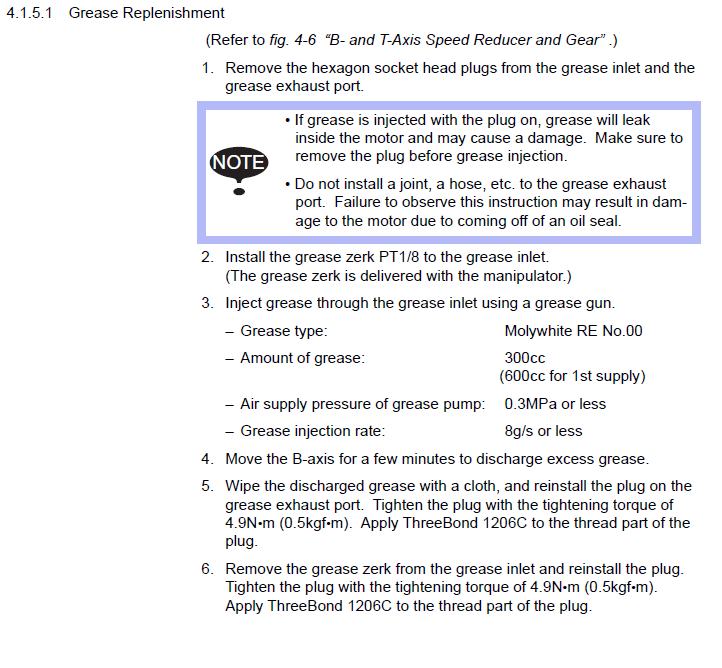

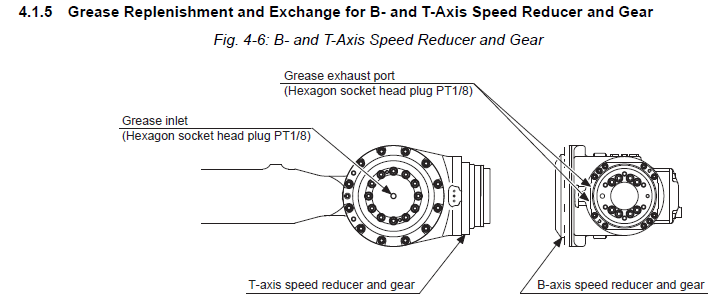

B AND T AXIS: 300cc
