Model Covered: YR-MH00050-A21
Materials Required:
GREASE, MOLY WHITE, #00, 16KG PAIL MOLYWHITE-RE-NO-00/132412-1
THREE BOND 1206C Adhesive Gasket 479014-6

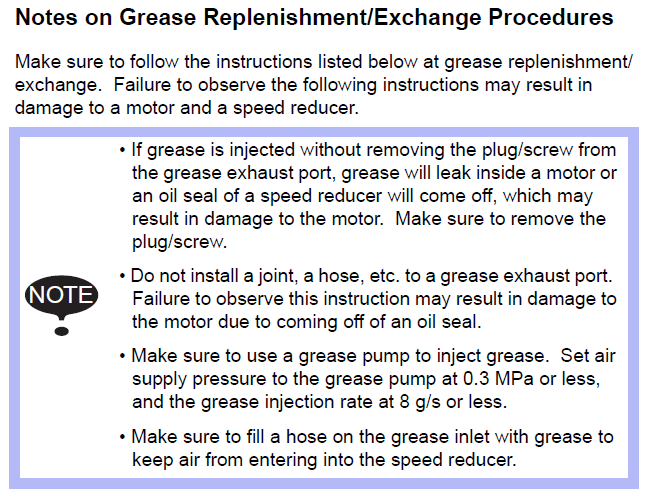

Grease Replenishment Amount:

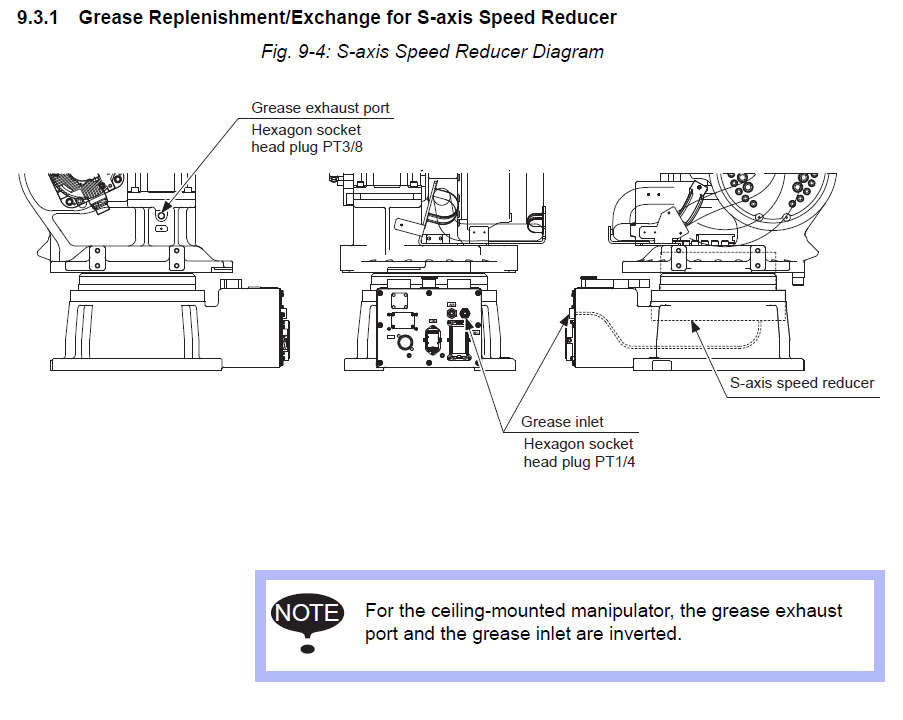

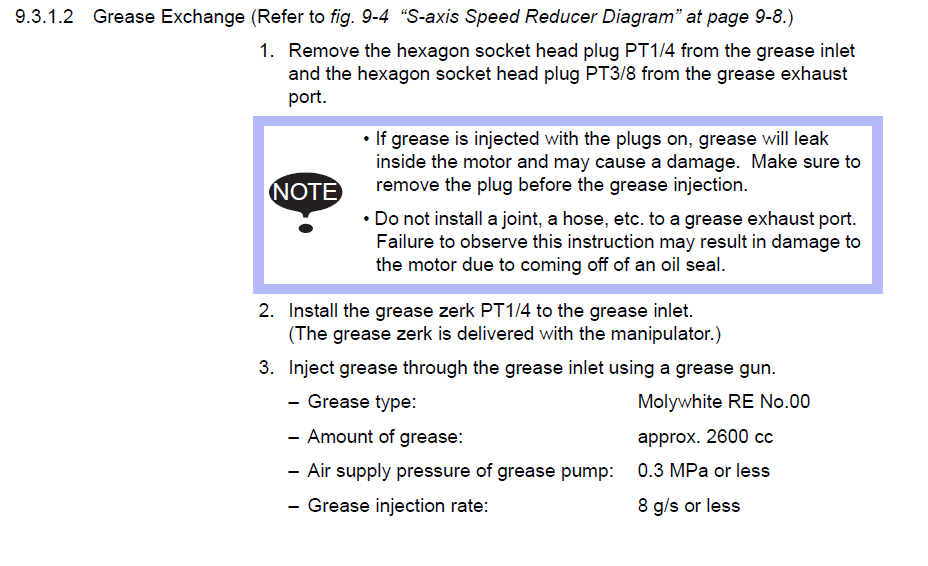

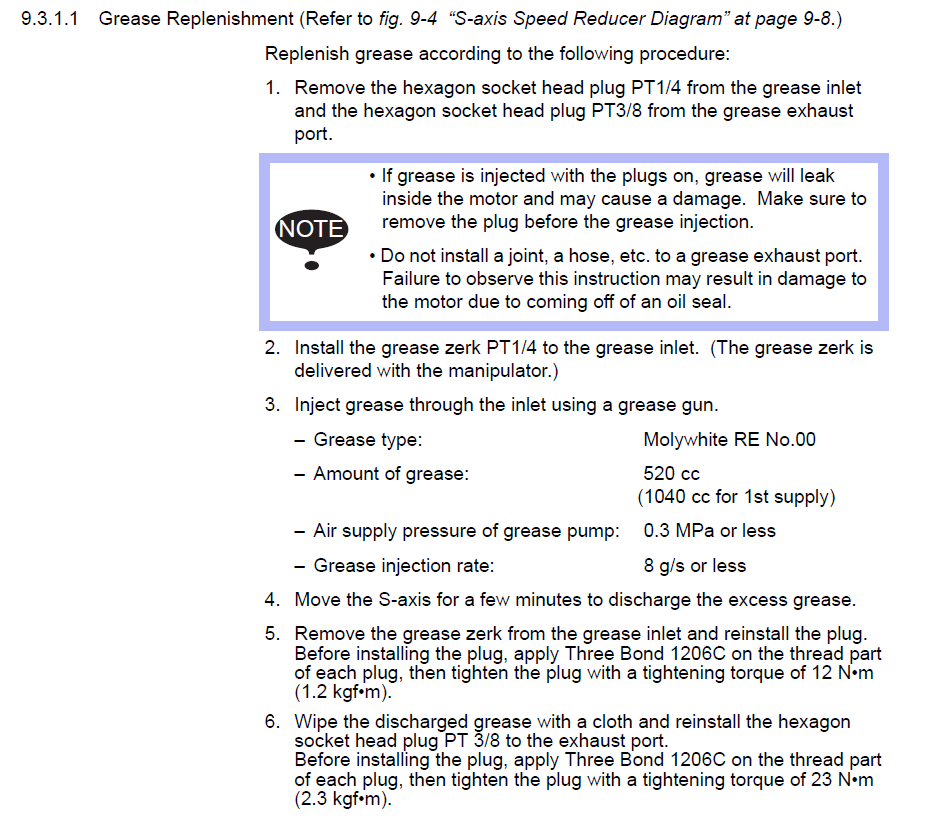

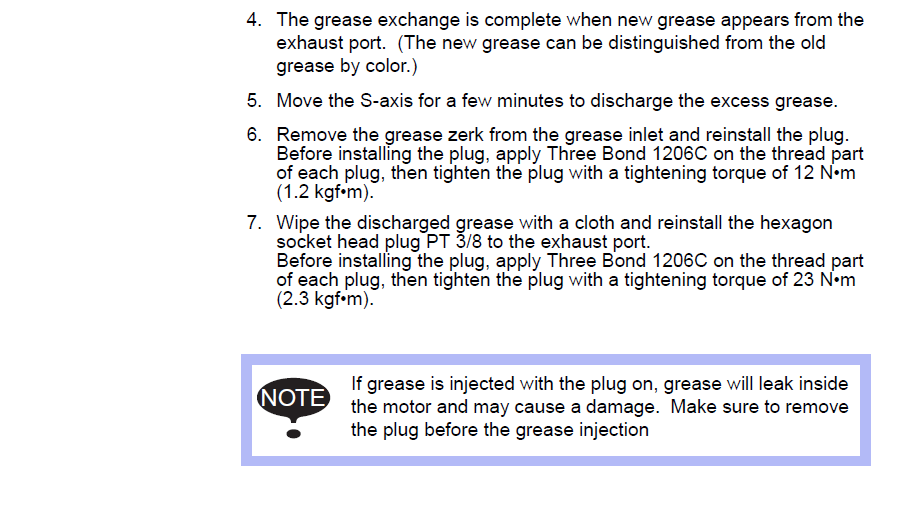

S-Axis: 520cc

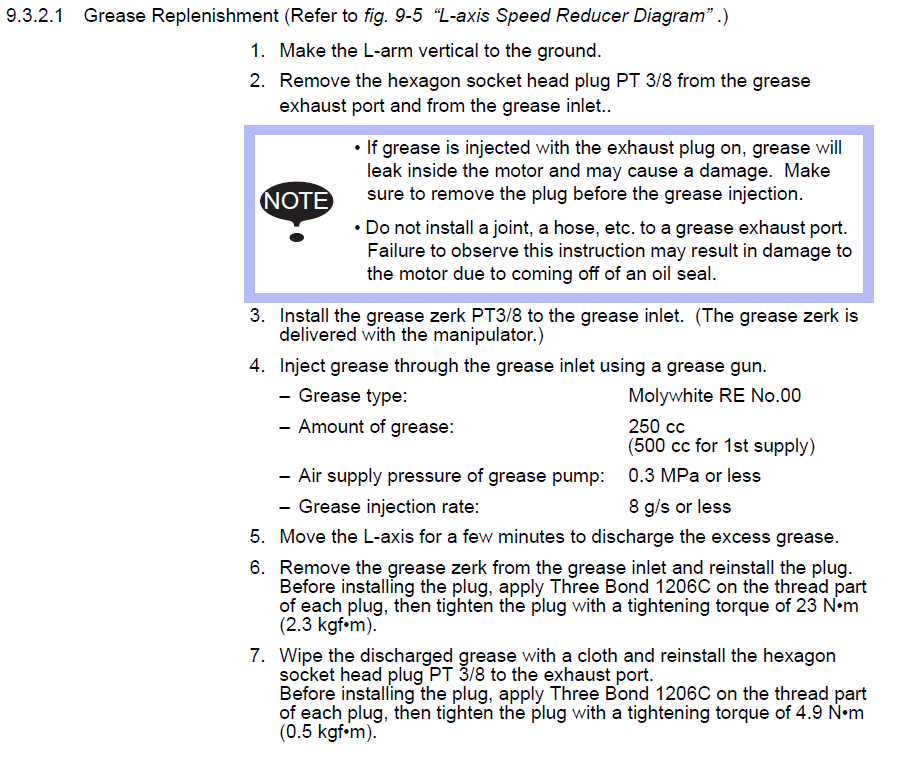

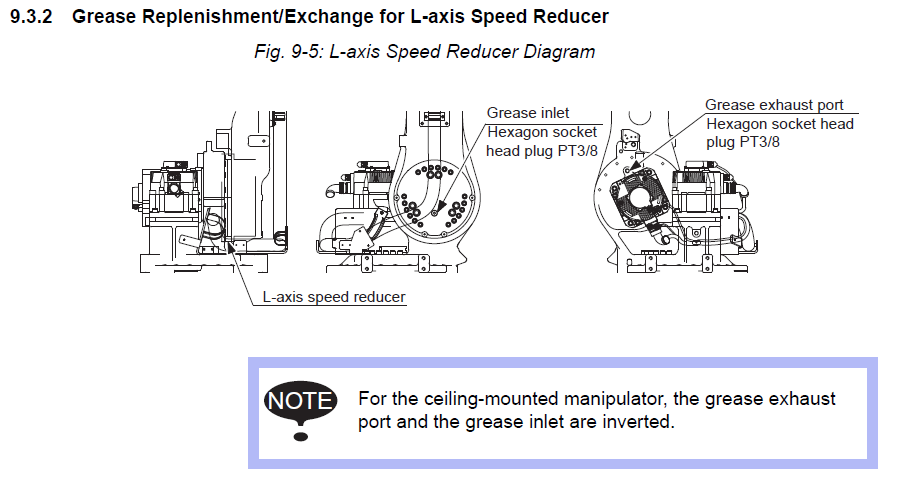

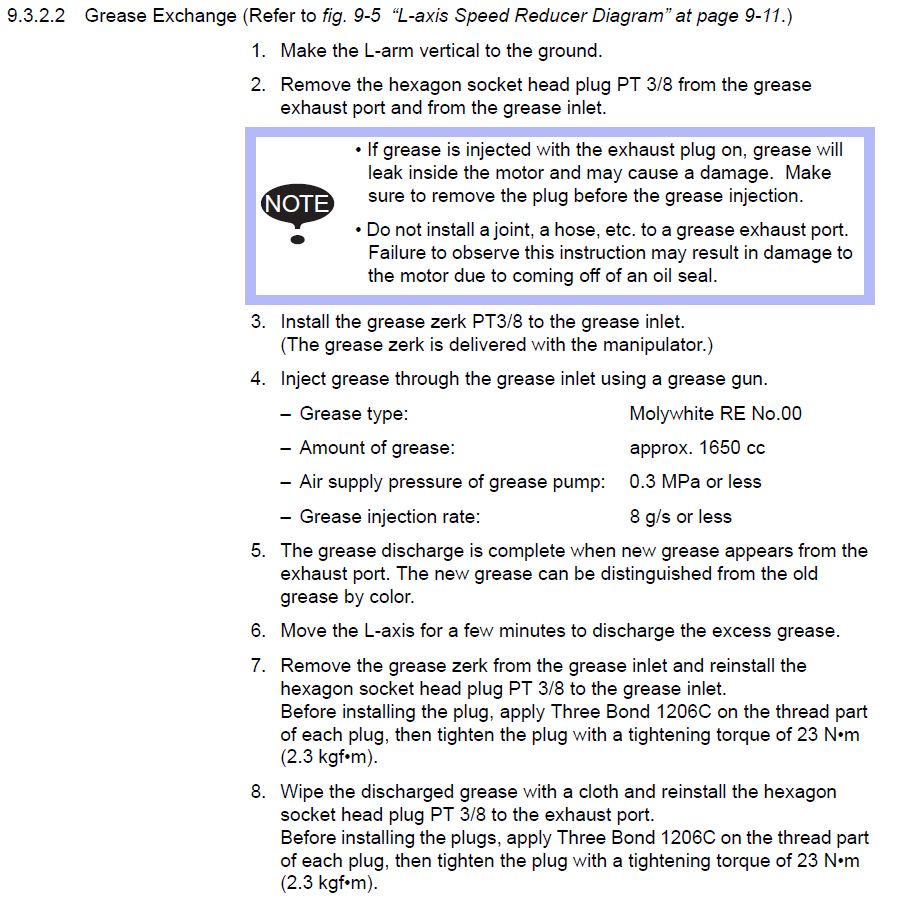

L-Axis: 250cc

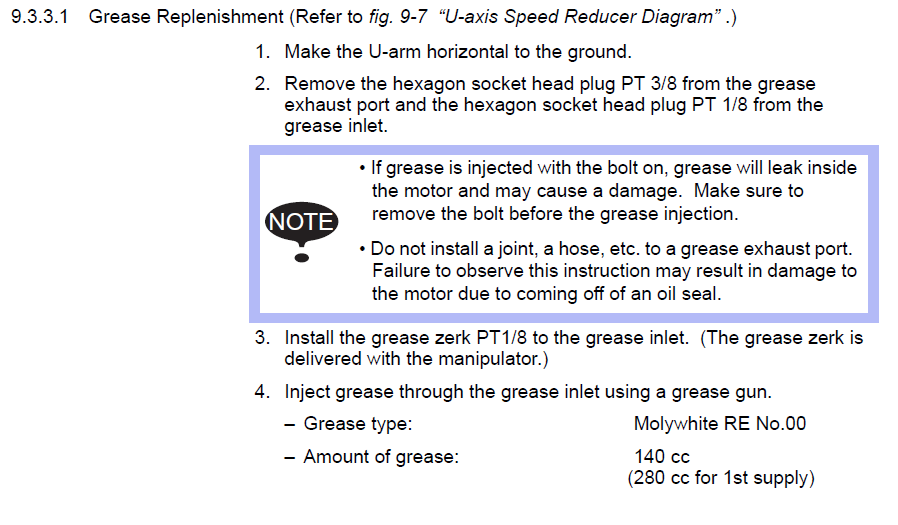

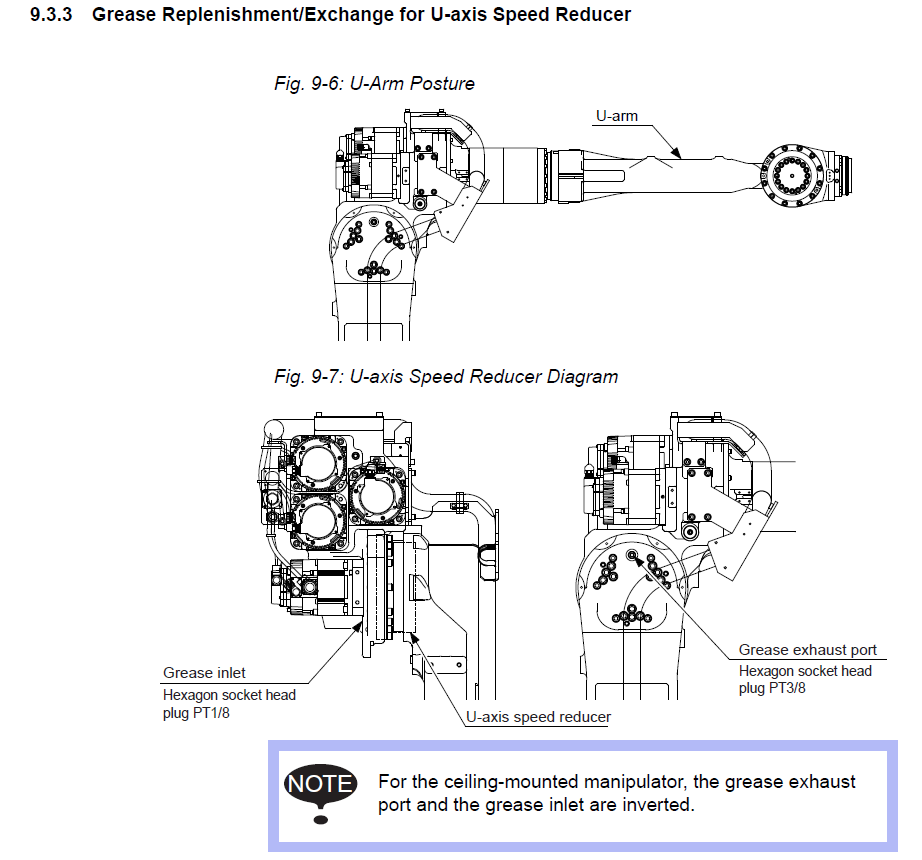

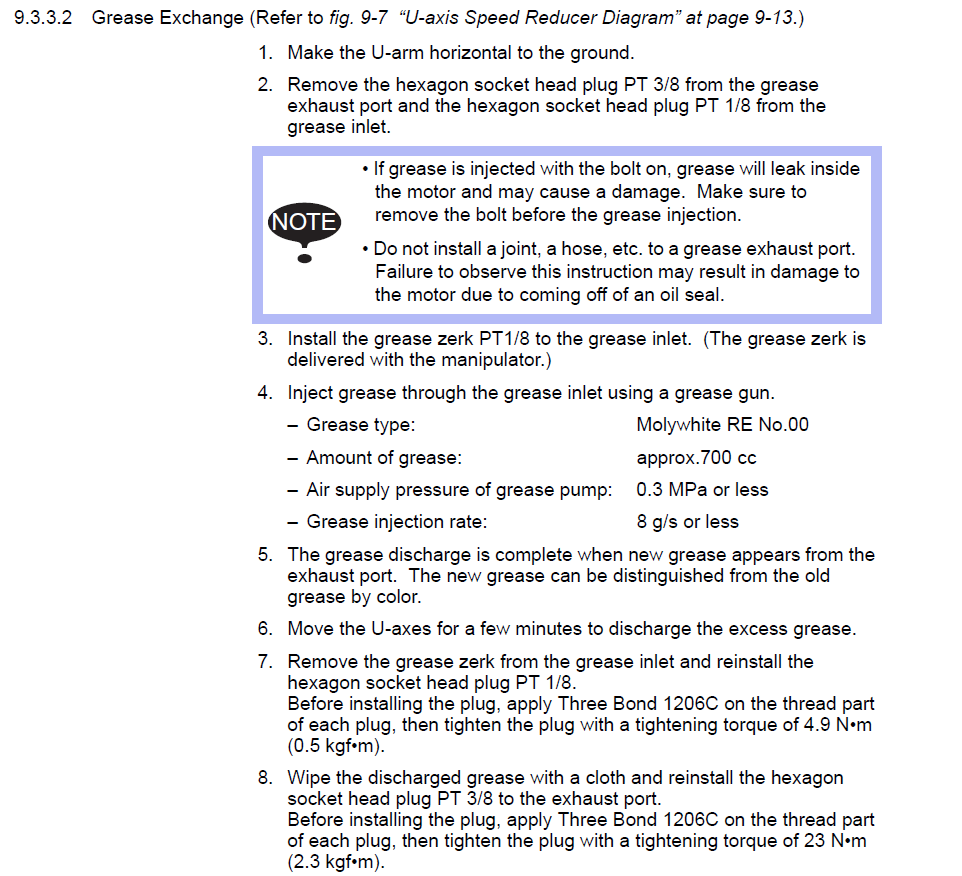

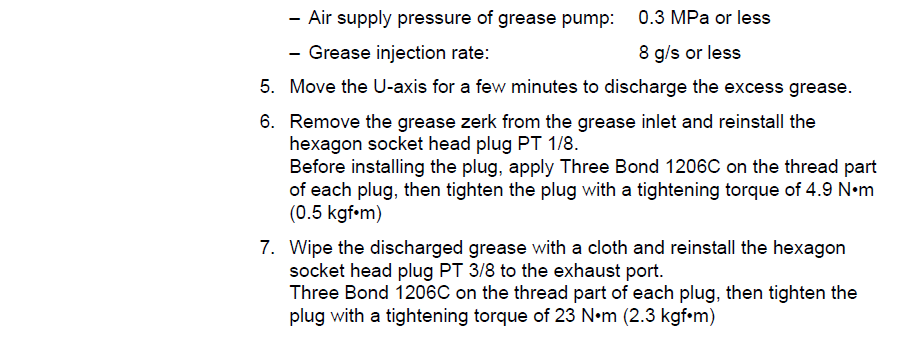

U-Axis: 140cc

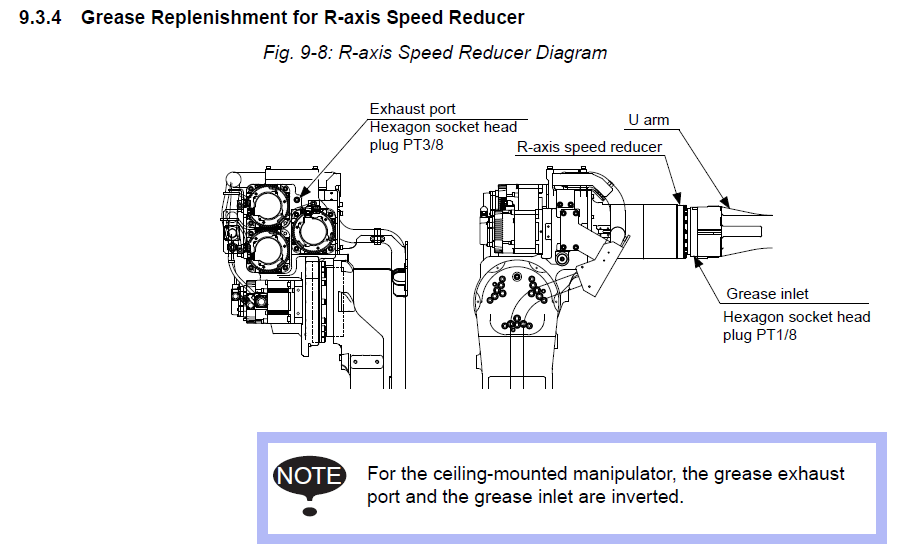

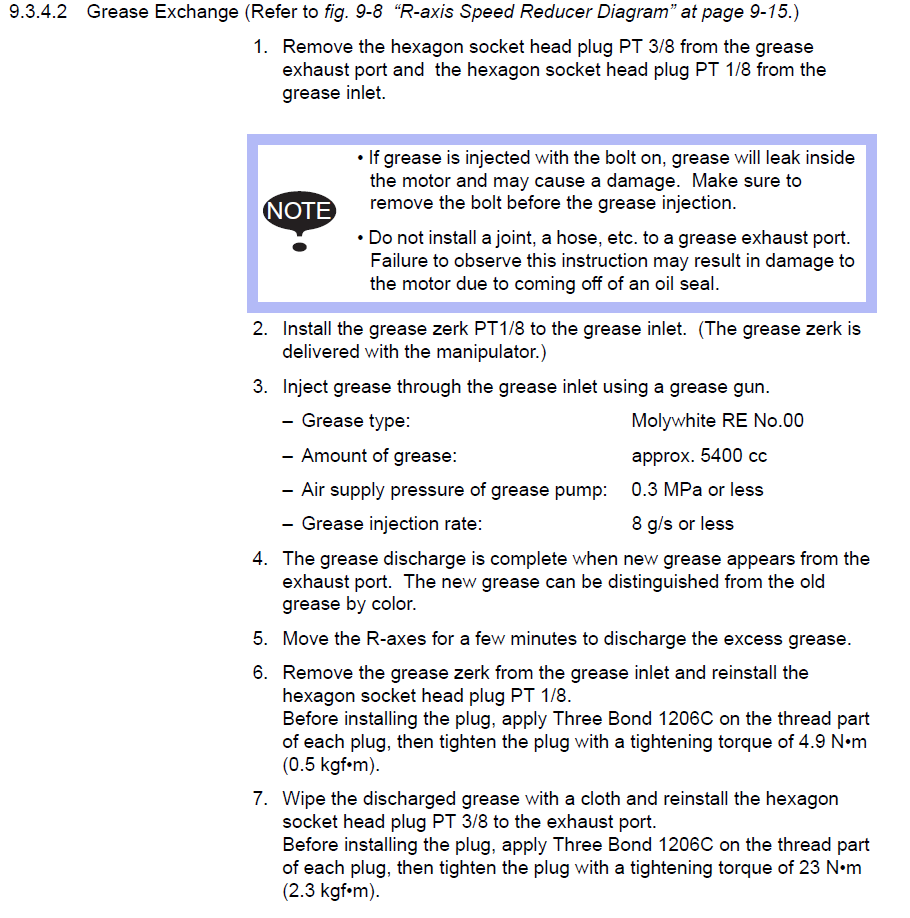

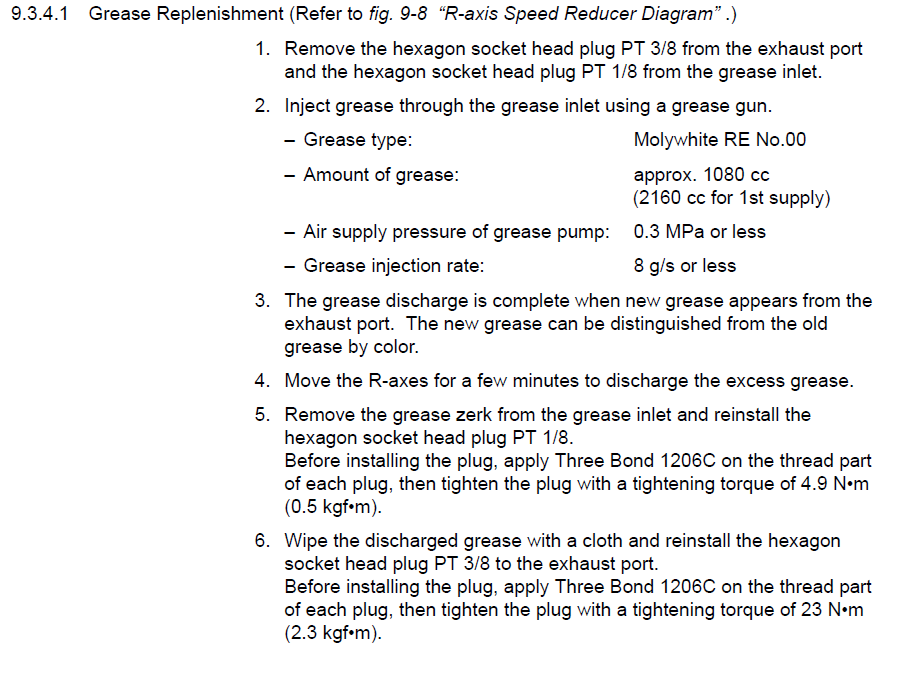

R-Axis: 1080cc

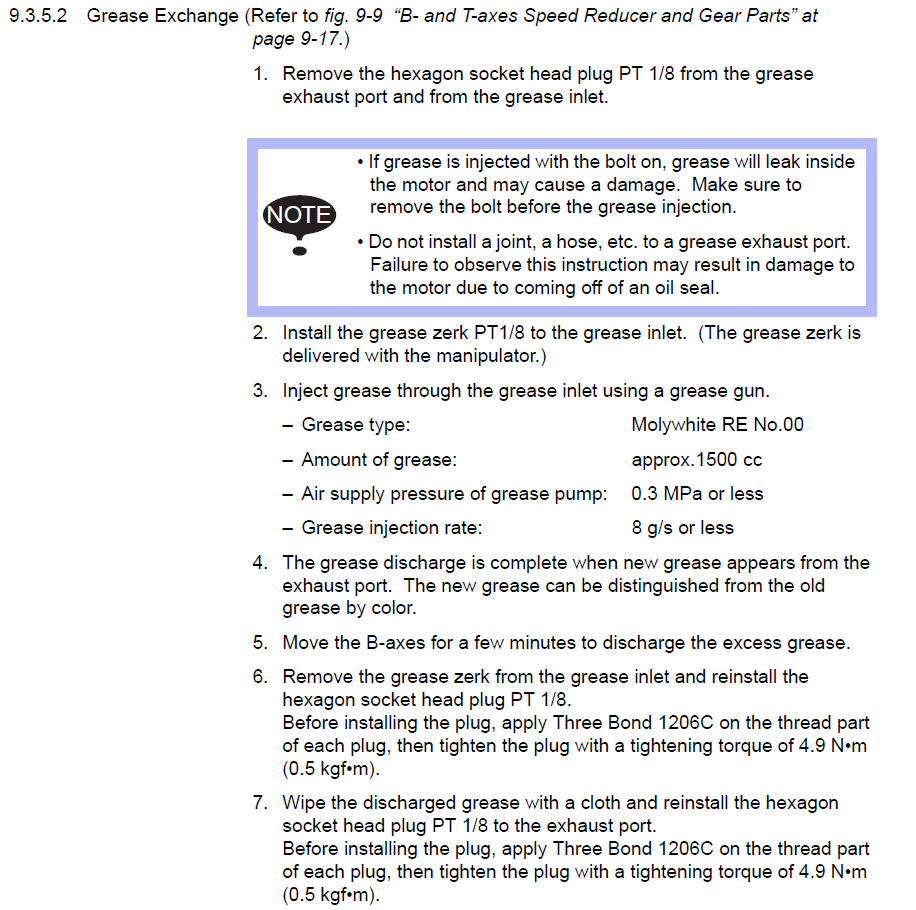

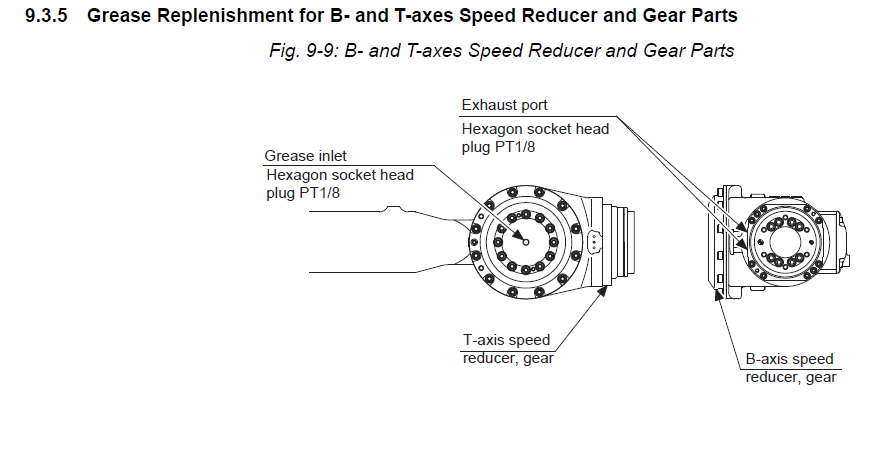

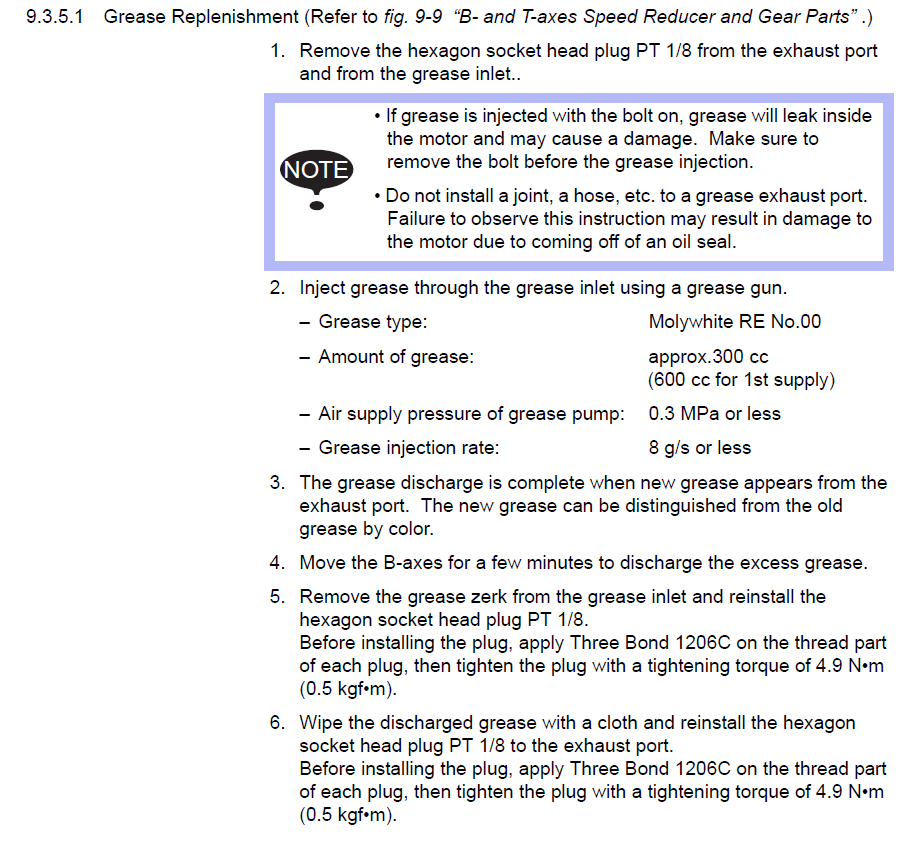

B and T Axis: 300cc
