Grease Replenishment (PM) MH5S / YR-MH0005S-A01 Manipulator

Model Covered: YR-MH0005S-A01

Material Required:

Harmonic Grease SK- 1A 479035-2

Three Bond 1206C 479014-6

Amount Of Grease Required:

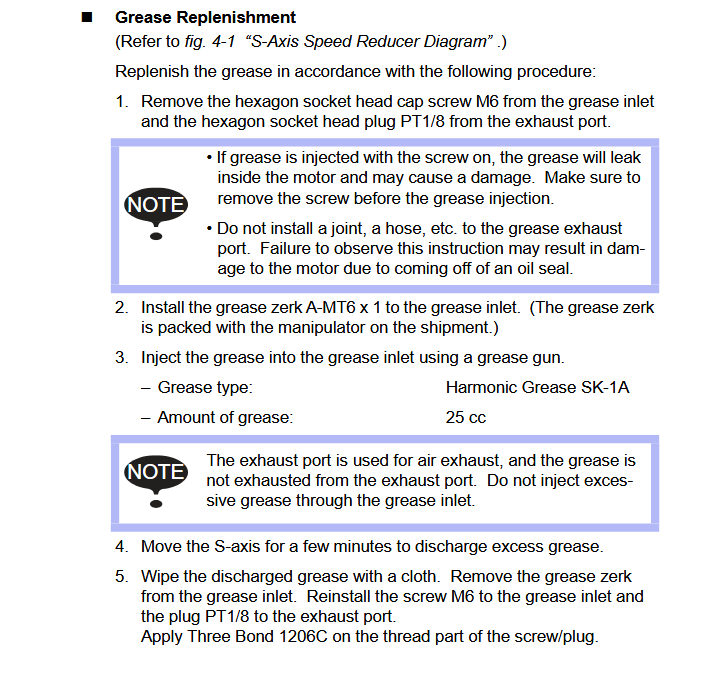

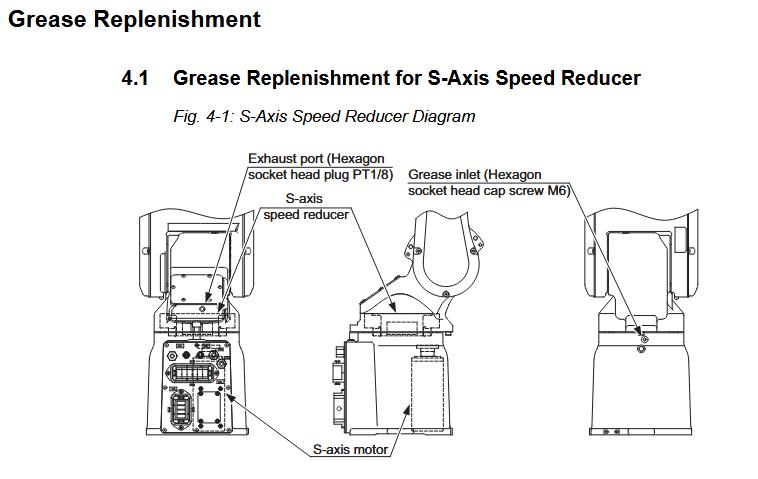

S-AXIS: 25CC

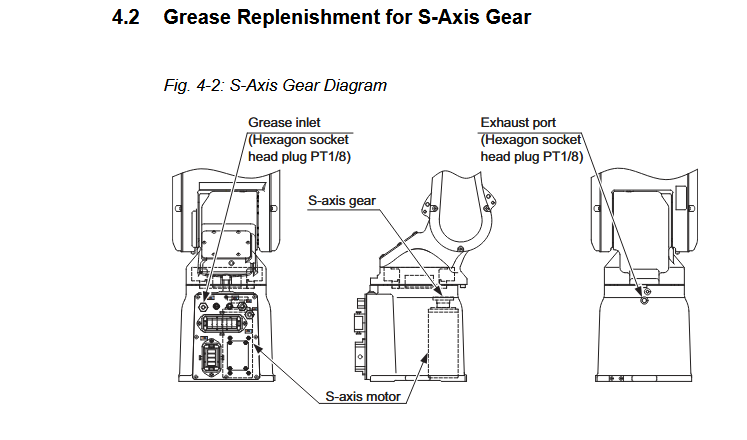

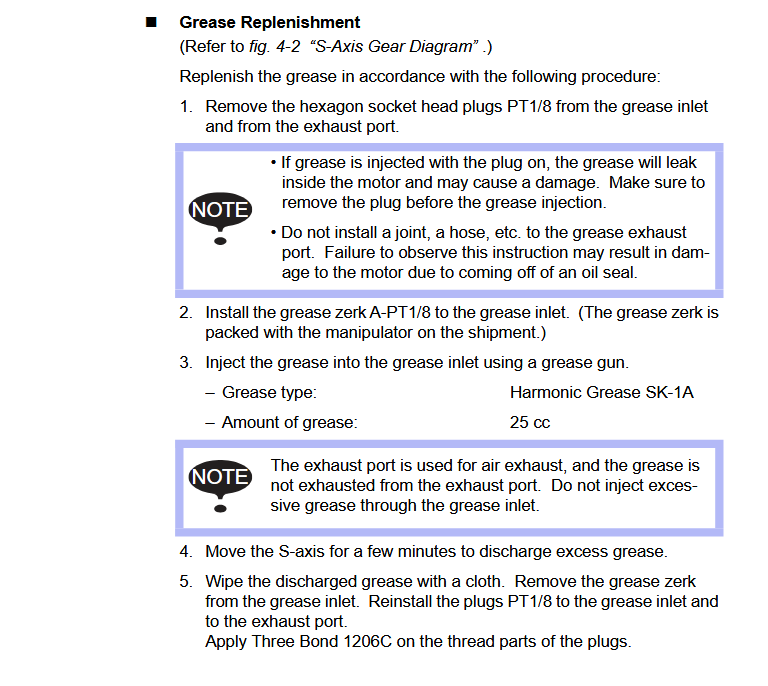

S-AXIS GEAR: 25CC

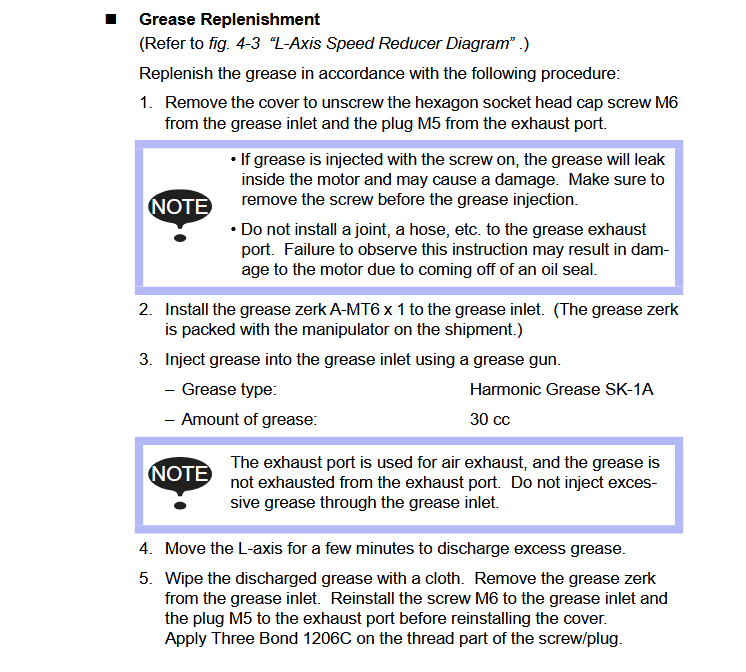

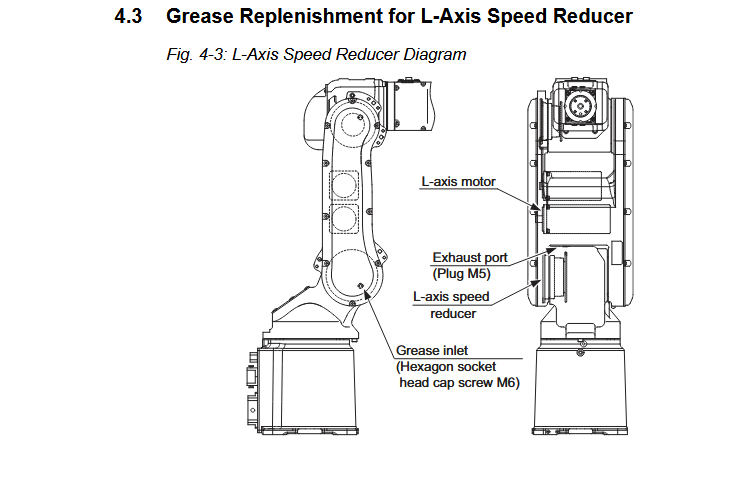

L-AXIS: 30CC

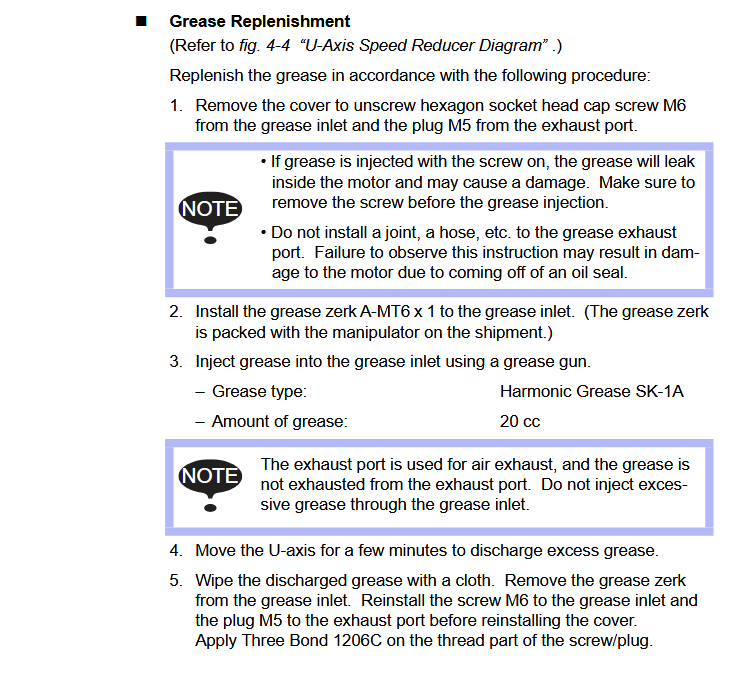

U-AXIS: 20CC

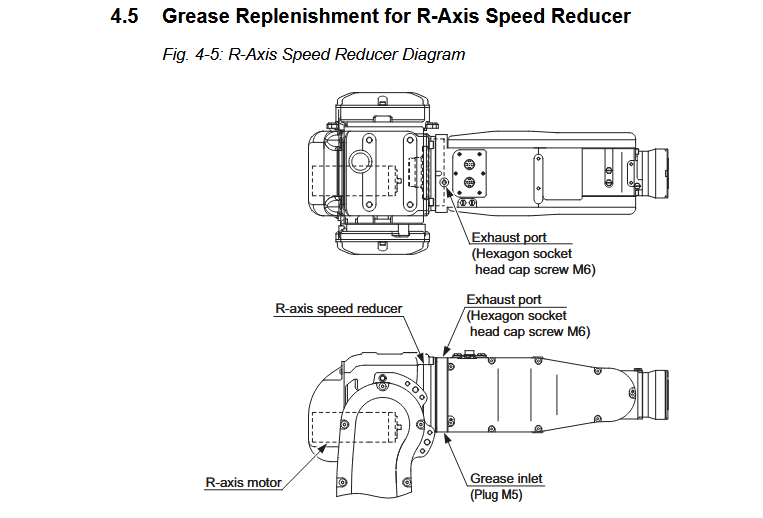

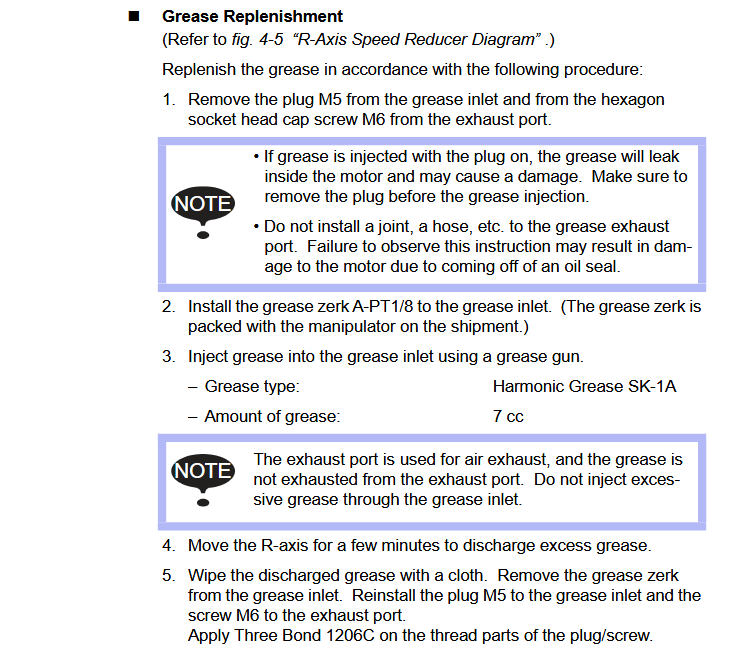

R-AXIS: 7CC

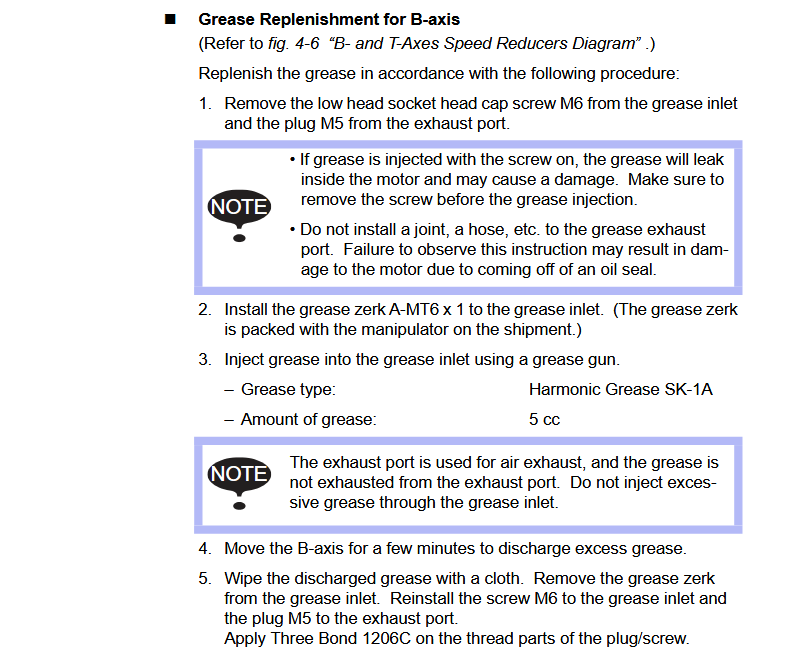

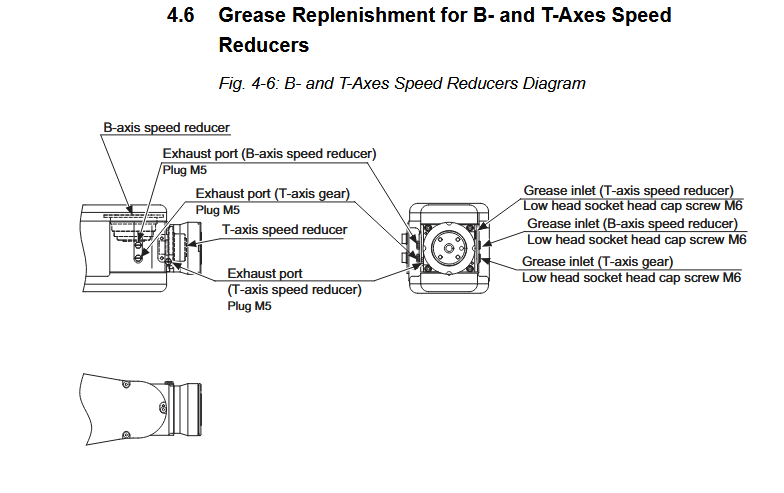

B-AXIS: 5CC

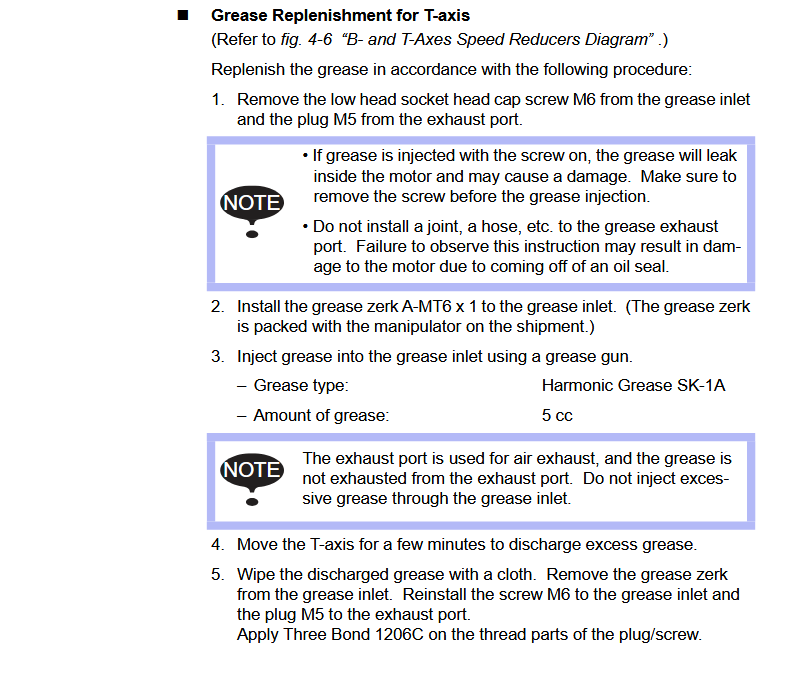

T-AXIS: 5CC

T-AXIS GEAR: 5CC
