Grease Procedure (PM) MH24-10 / YR-MH00024-A12 Manipulator

Model Covered: YR-MH00024-A12

Material Required:

Molywhite RE No. 00 132412-1

Harmonic Grease SK-1A 479035-2

Alvania EP Grease 2 132177-1

Three Bond 1206C 479014-6

Amount Of Grease:

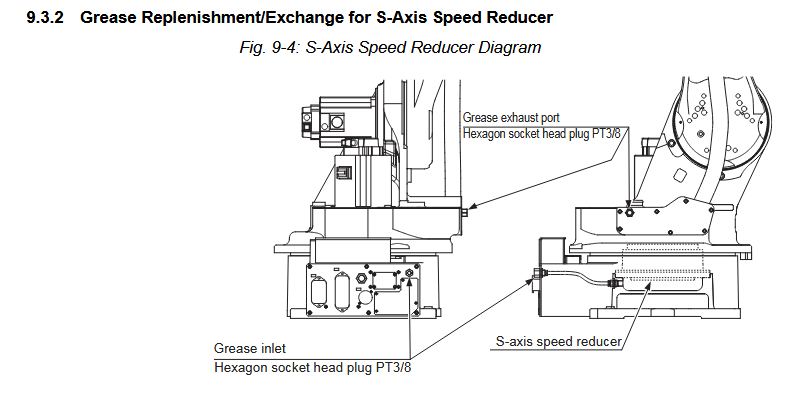

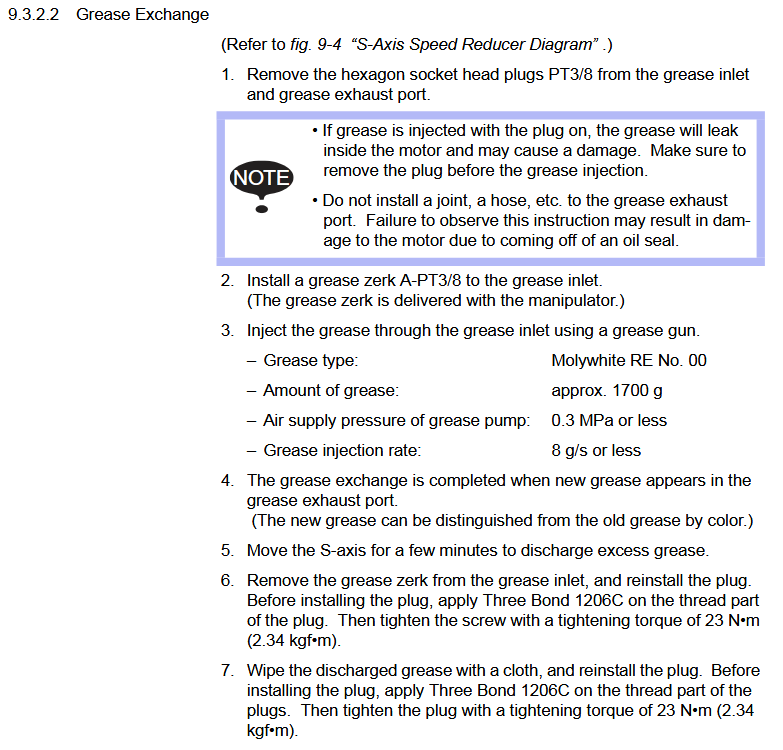

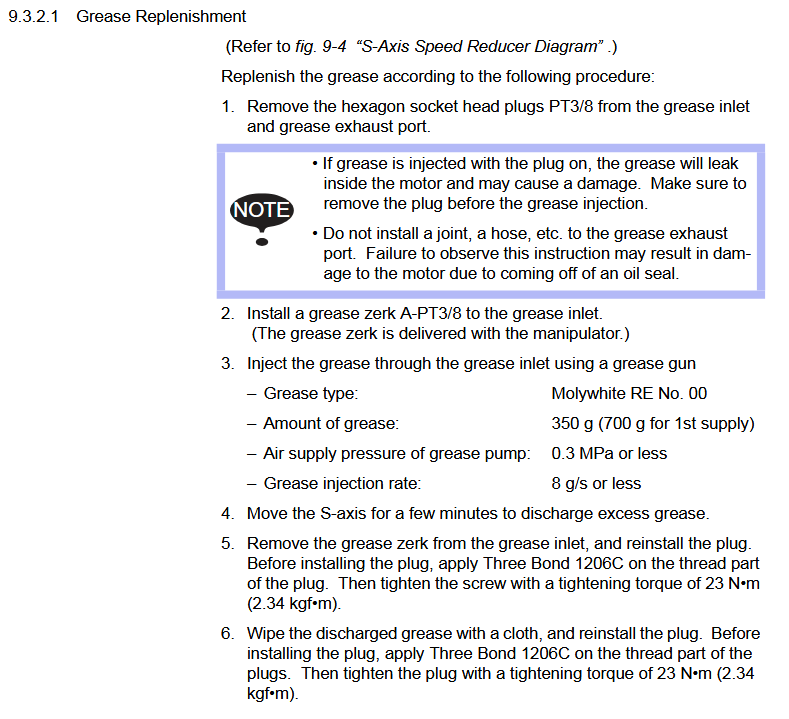

S-AXIS: Molywhite 350 cc

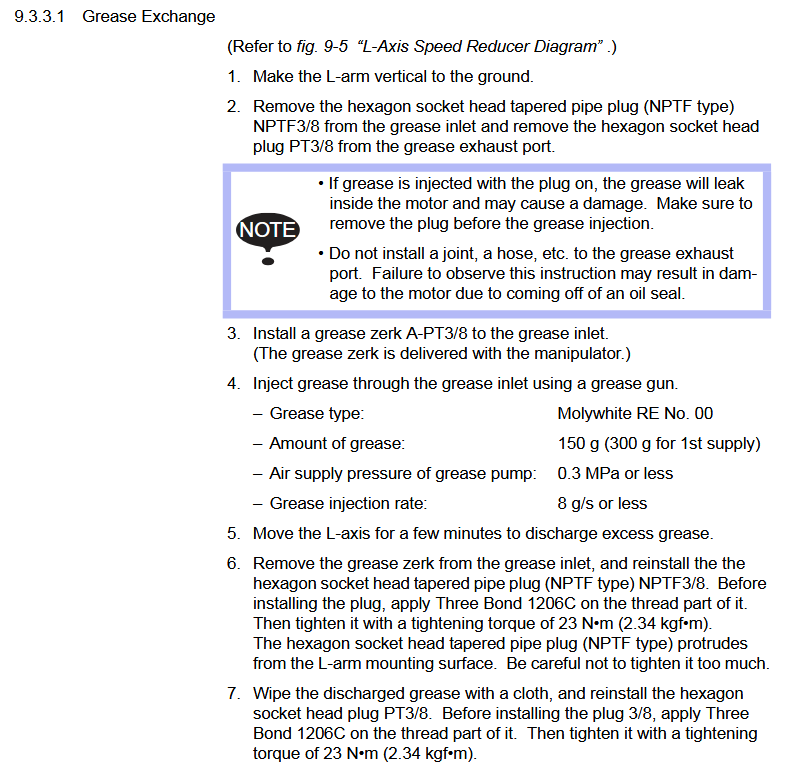

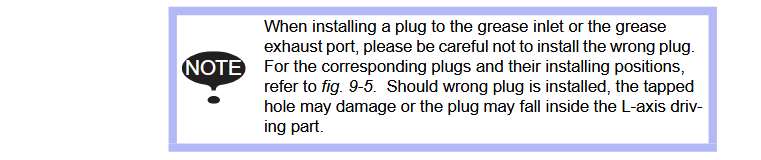

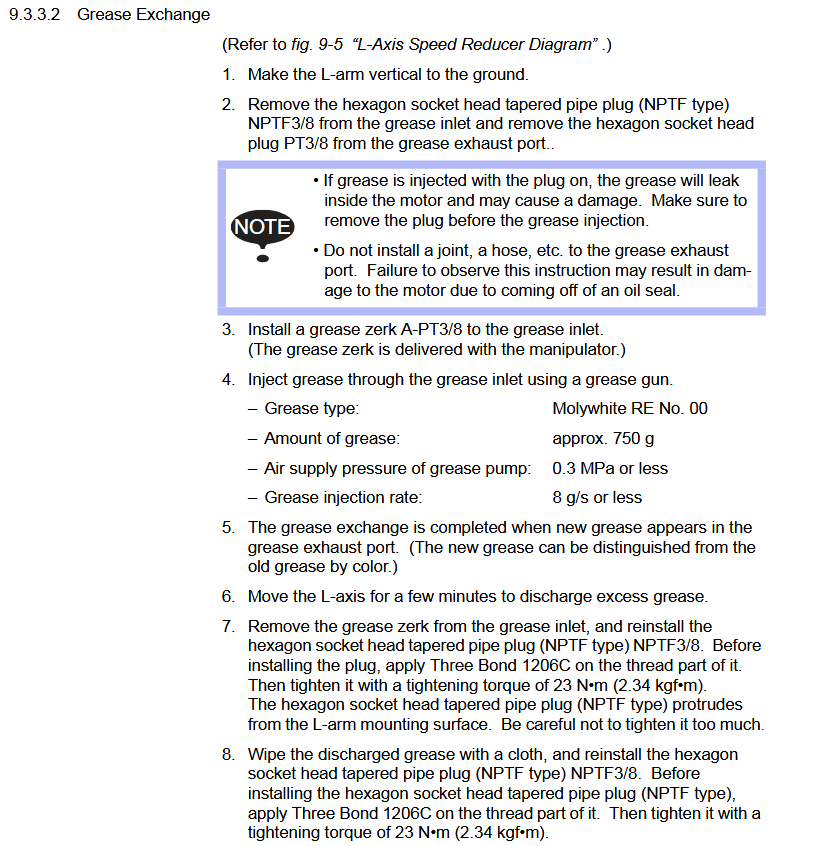

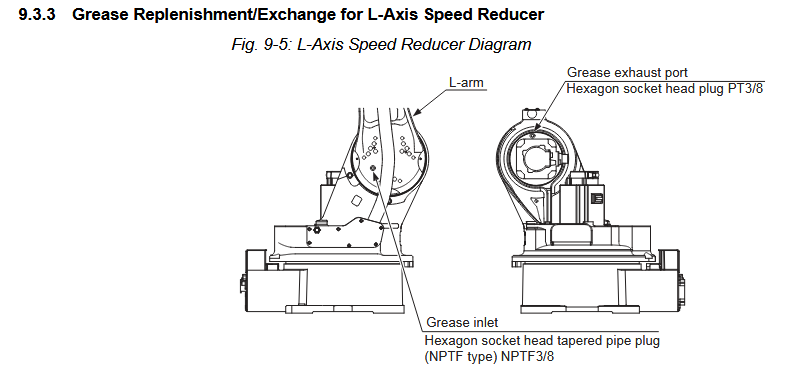

L-AXIS: Molywhite 150 cc

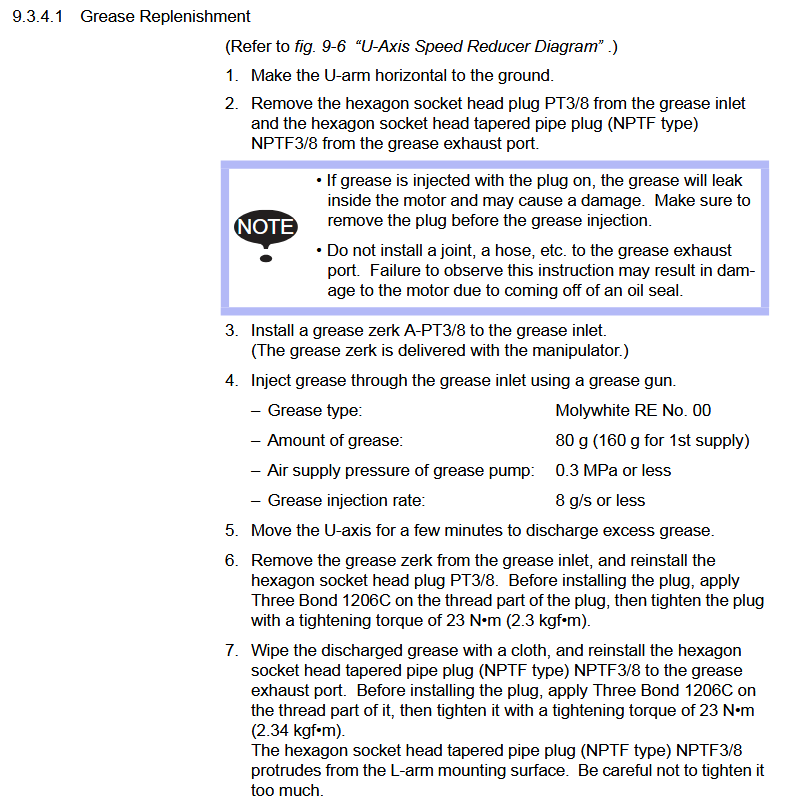

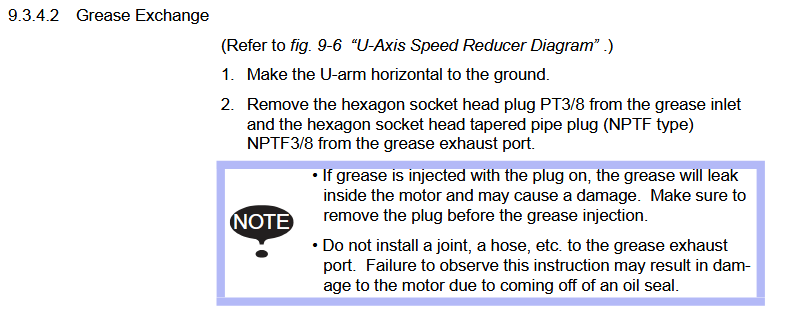

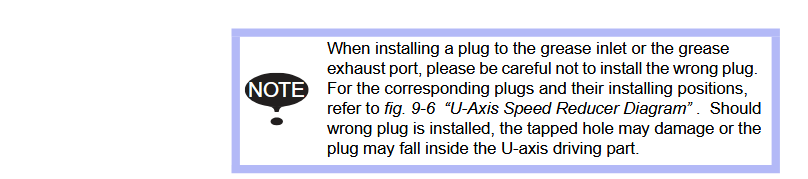

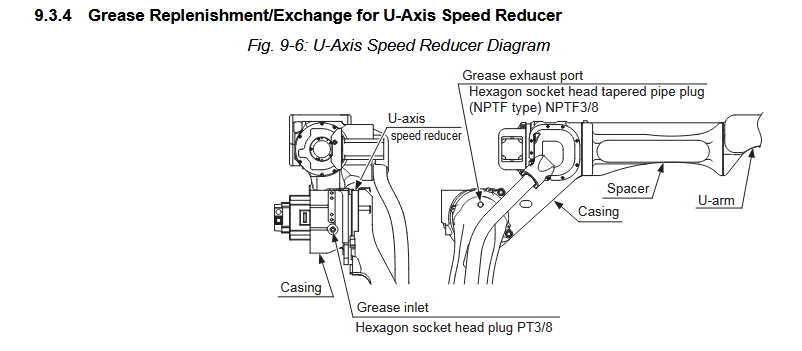

U-AXIS: Molywhite 80 cc

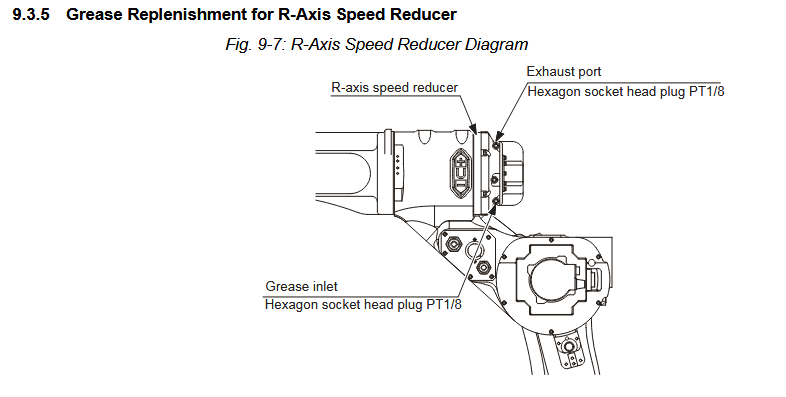

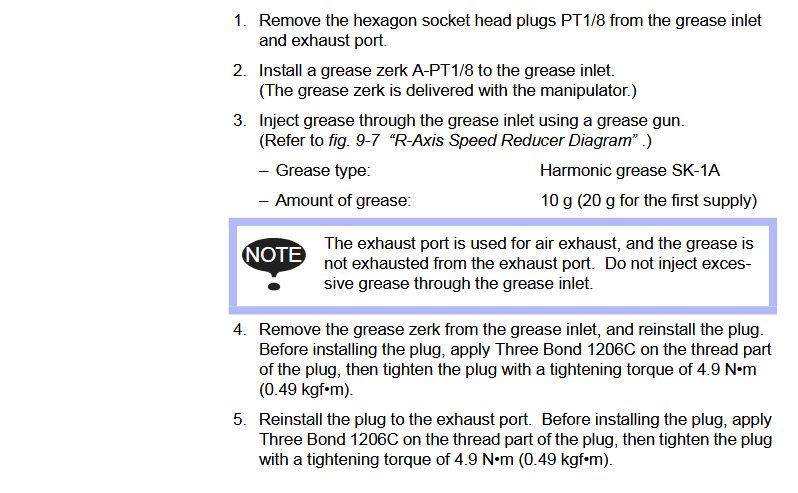

R-AXIS: SK1 Grease 10 cc

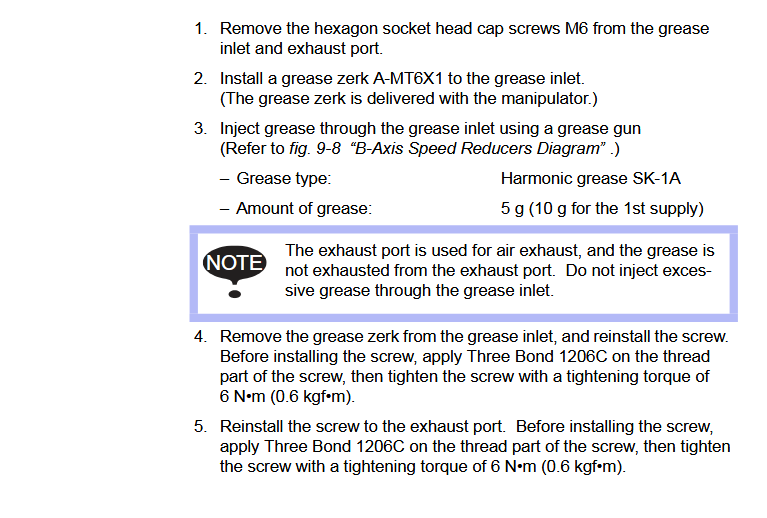

B-AXIS: SK1 Grease 5cc

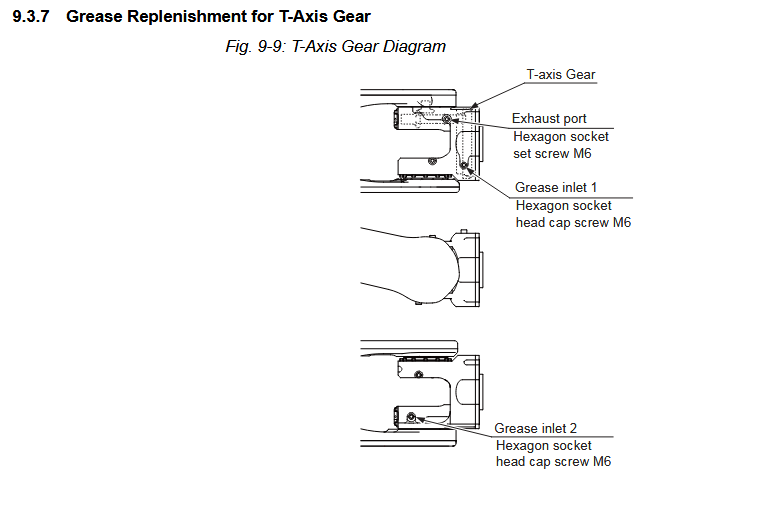

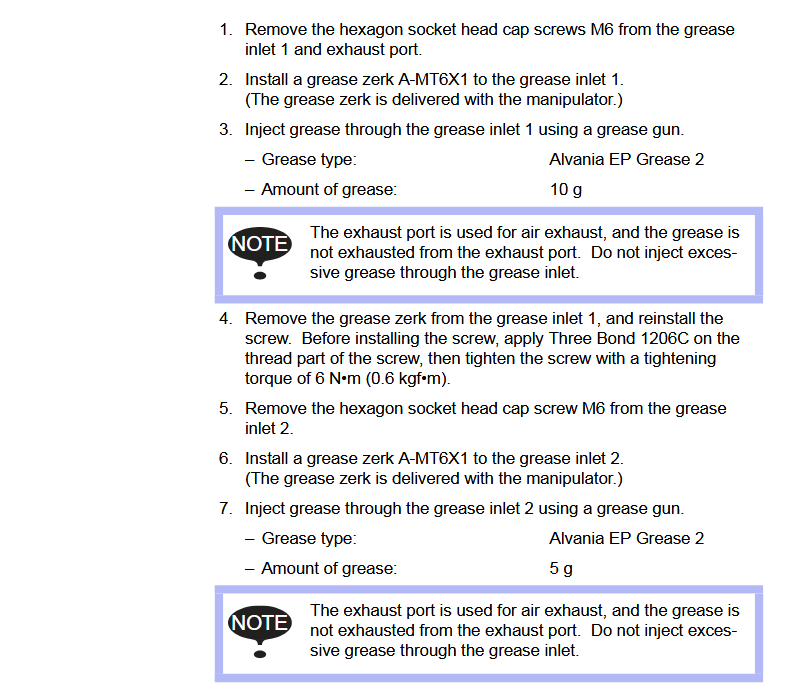

T-AXIS Inlet 1: EP2 Grease 10cc

T-AXIS Inlet 2: EP2 Grease 5cc

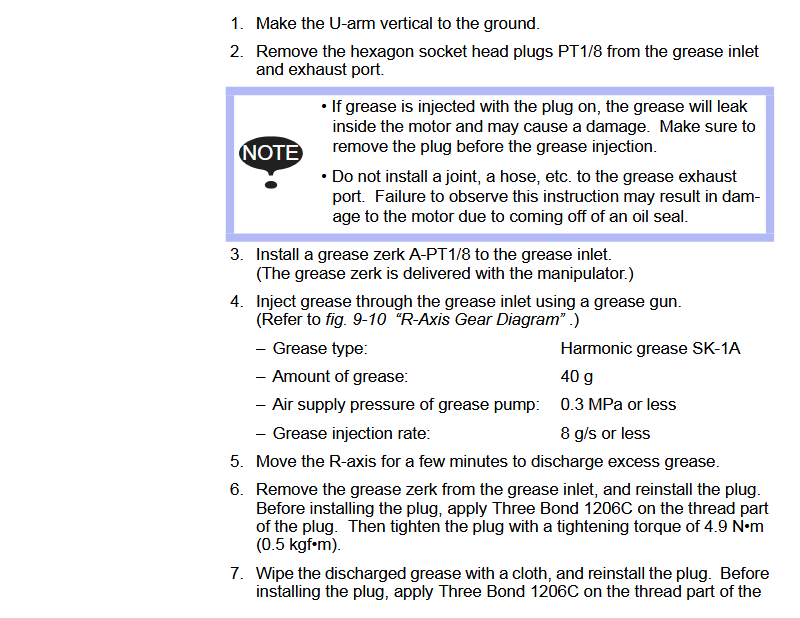

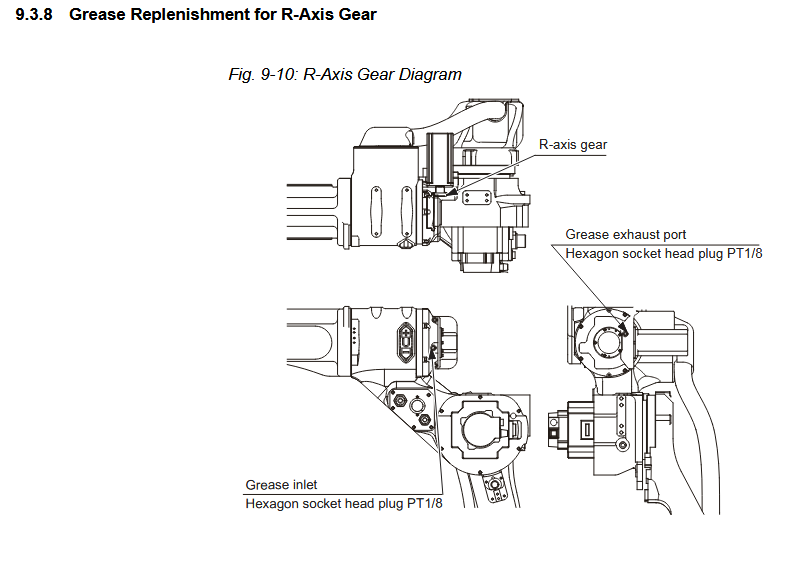

R-AXIS GEAR: SK1-Grease 40cc
