Grease Procedure (PM) EPH4000D / YR-EPH400D-LA0 Manipulator

Model Covered: YR-EPH400D-LA0

Material Required:

Molywhite RE No. 00 132412-1

Alvania EP Grease 2 132177-1

ThreeBond 1206C 479014-6

Amount Of Grease:

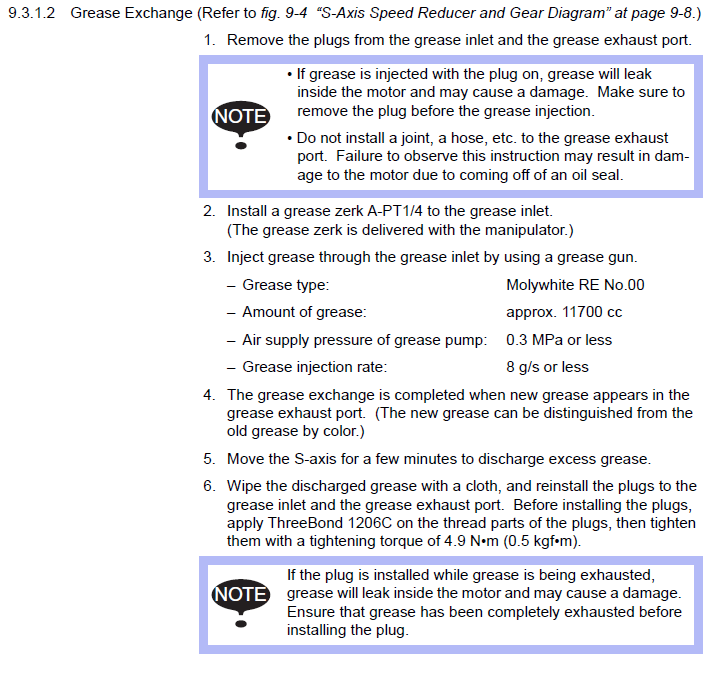

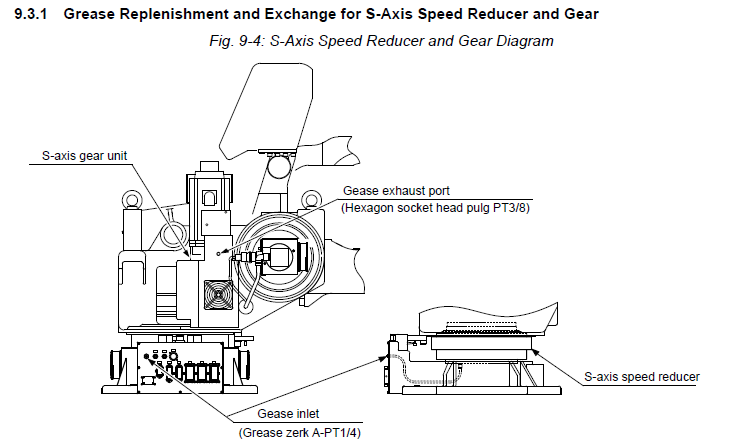

S-AXIS: Molywhite 2340 cc

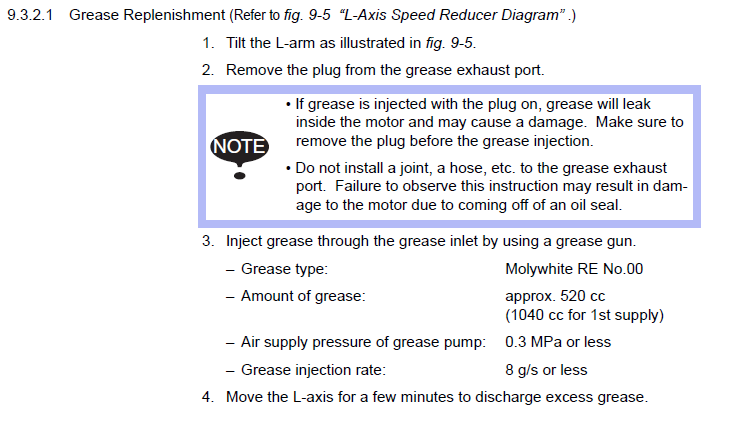

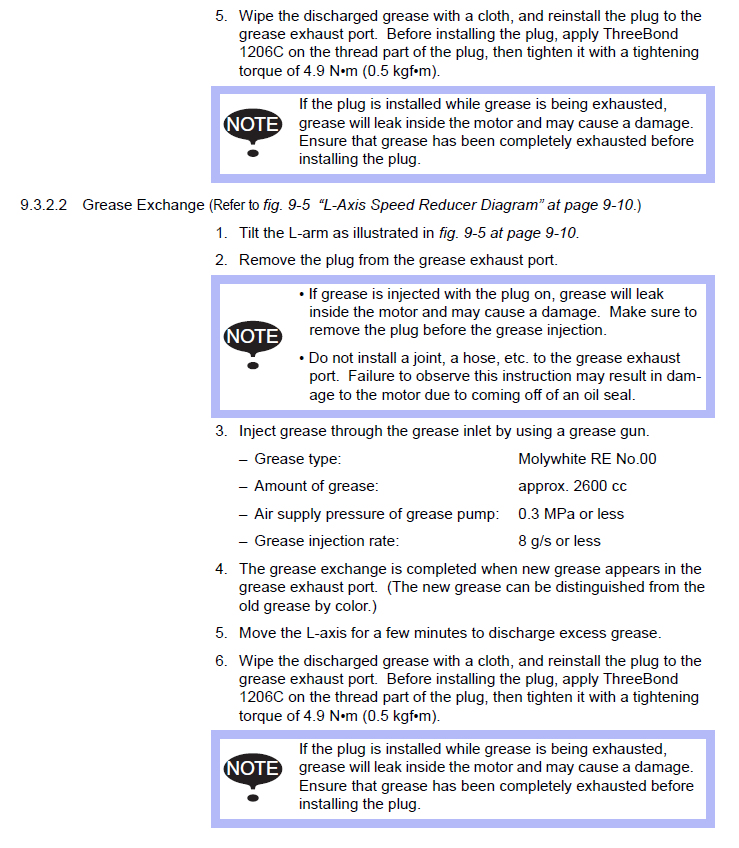

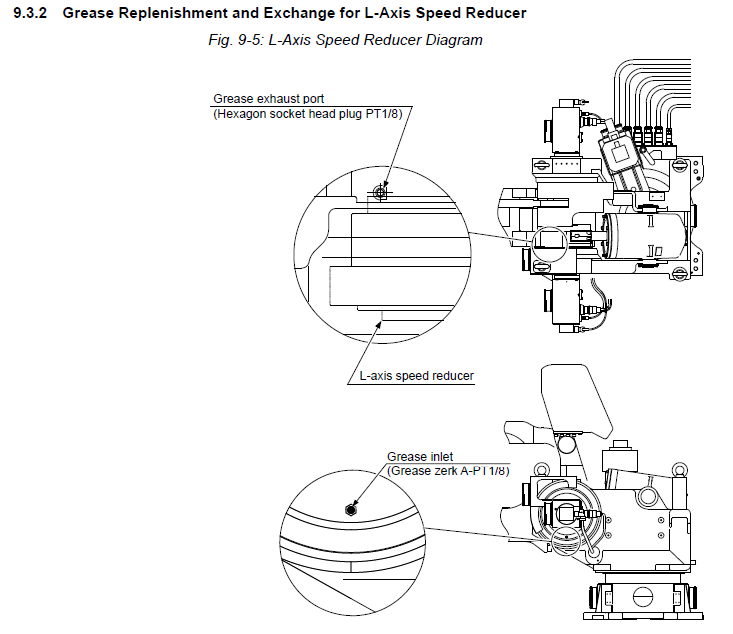

L-AXIS: Molywhite 520 cc

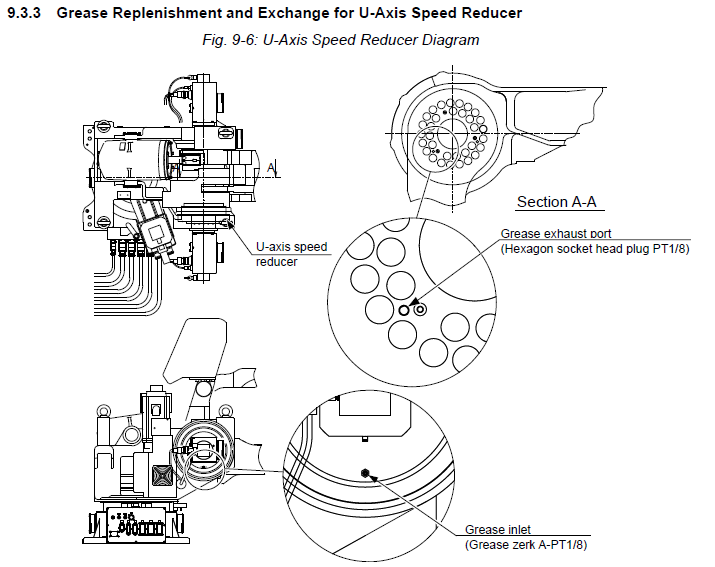

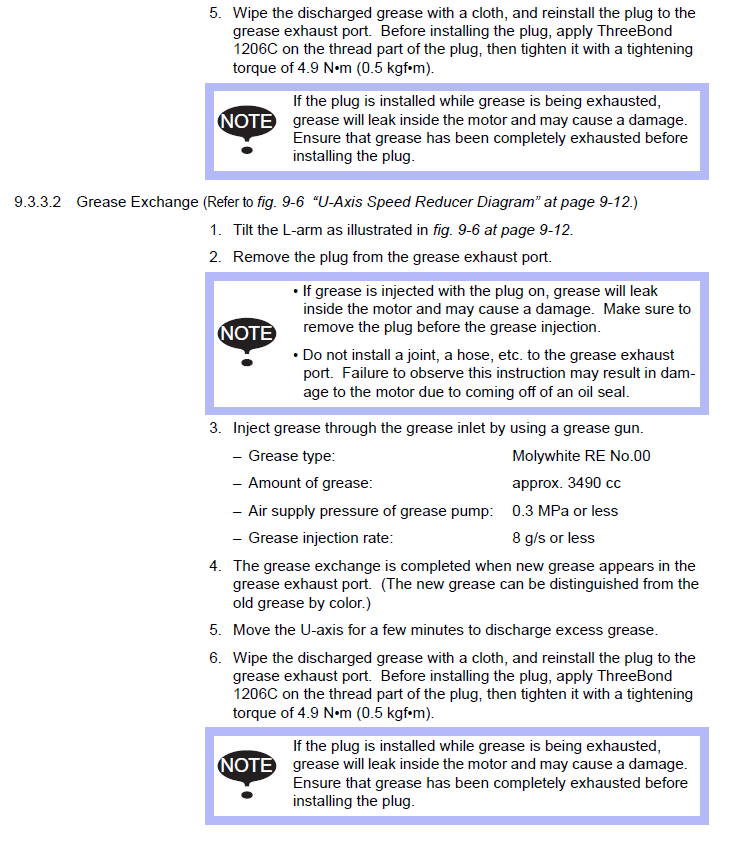

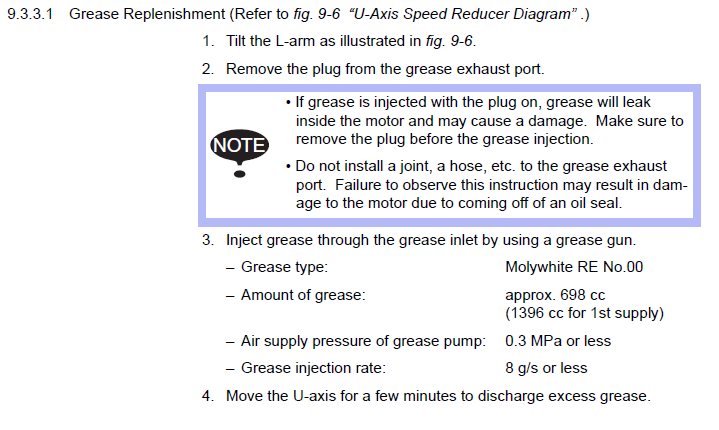

U-AXIS: Molywhite 698 cc

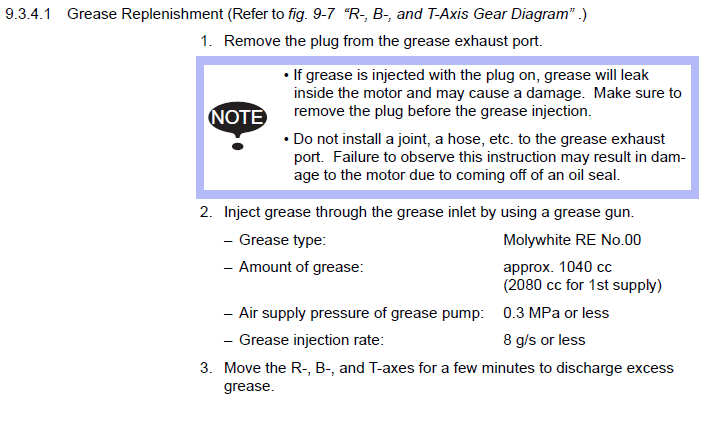

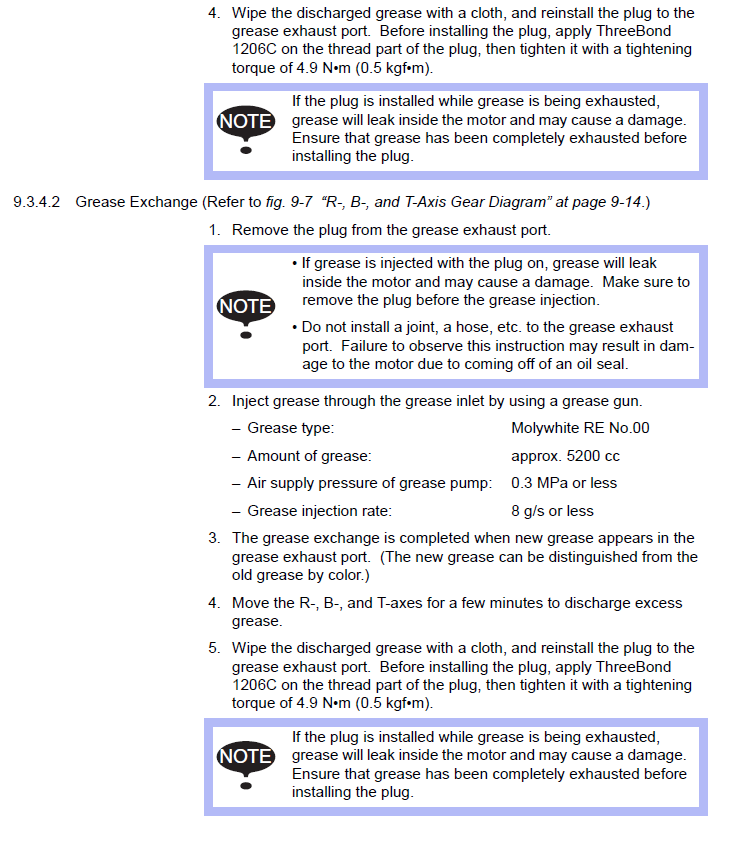

R-,B-, AND T AXIS GEAR: Molywhite 1040 cc

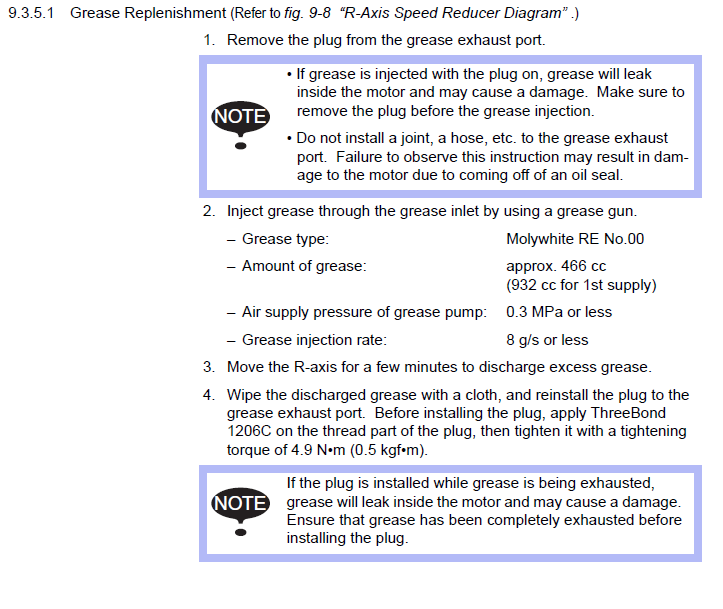

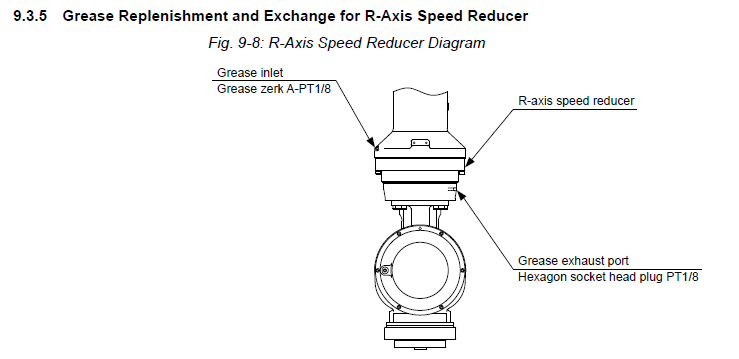

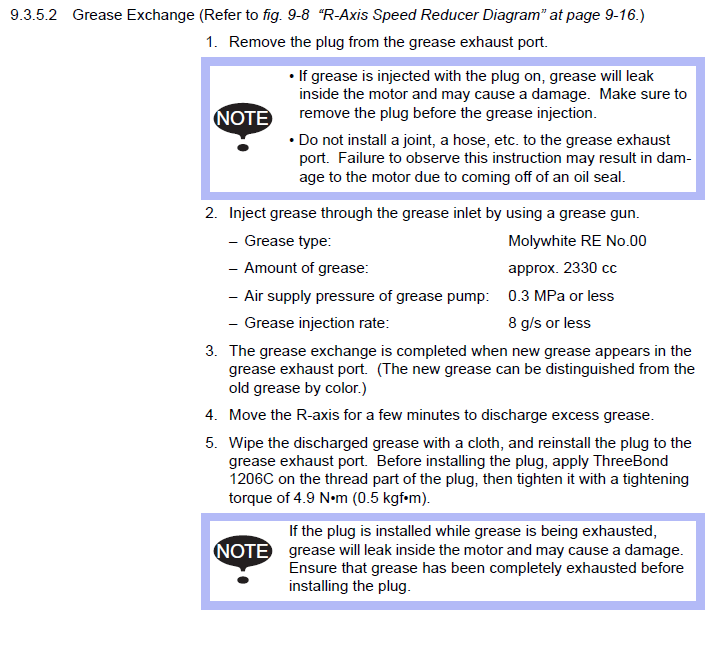

R-AXIS: Molywhite 466 cc

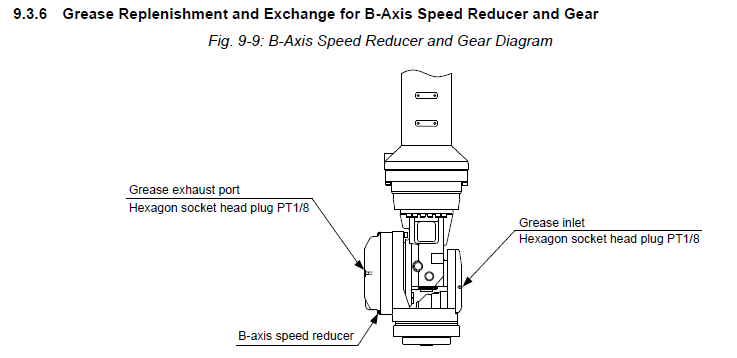

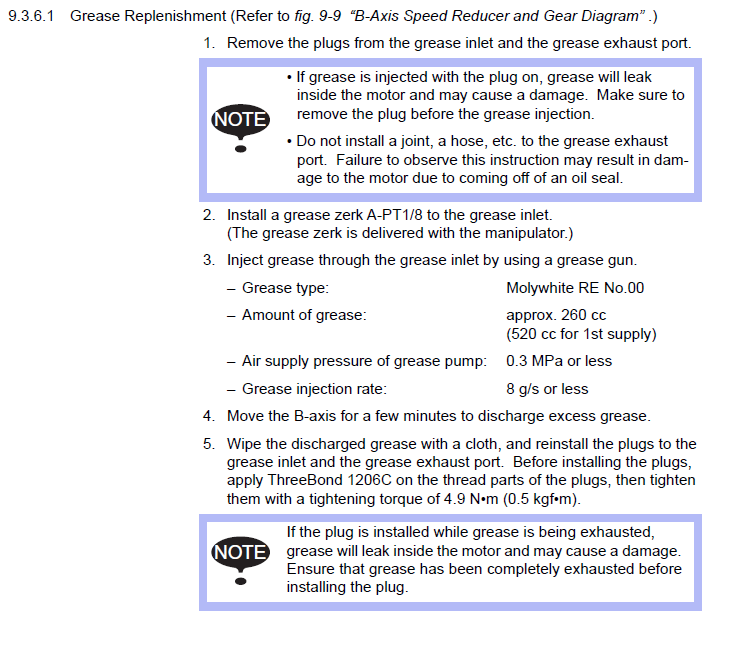

B-AXIS: Molywhite 260 cc

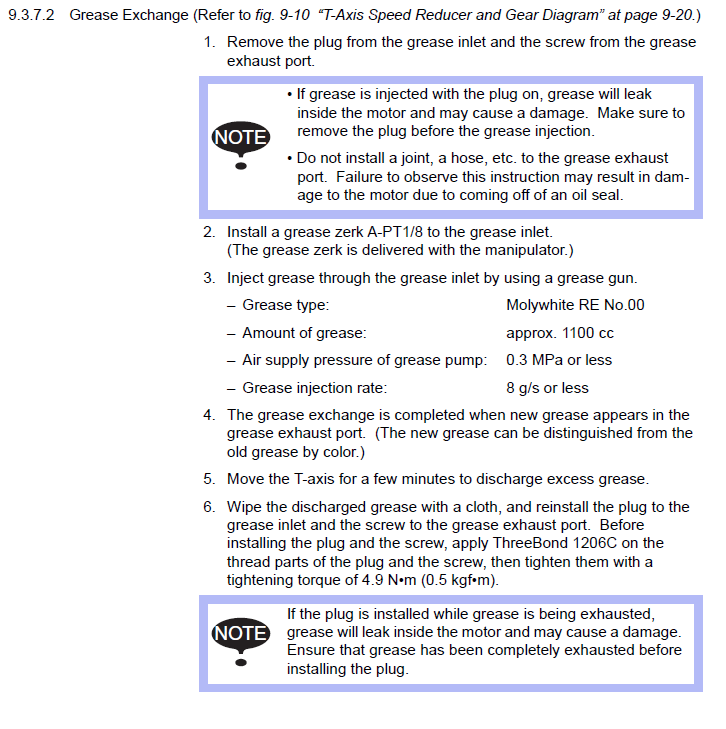

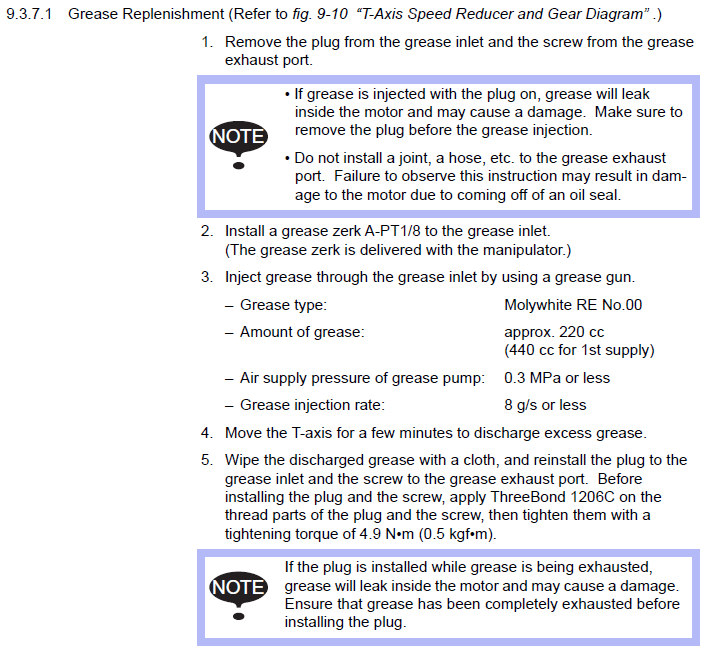

T-AXIS: Molywhite 220 cc

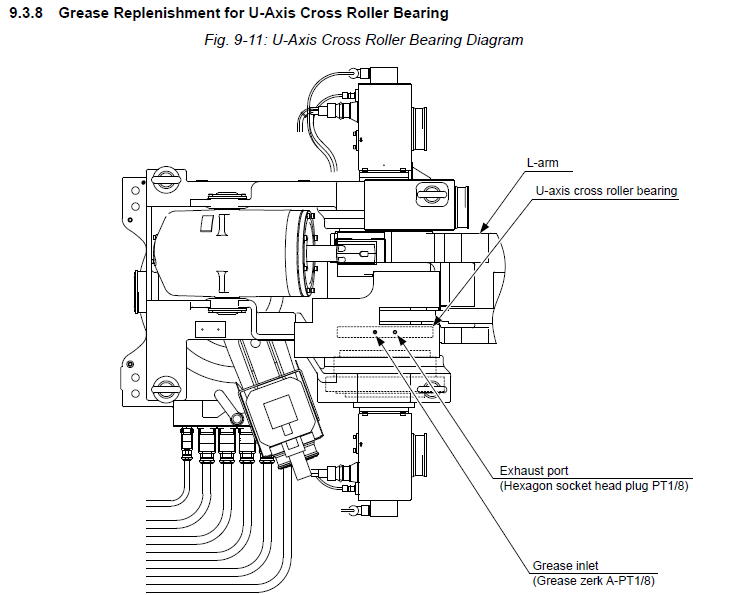

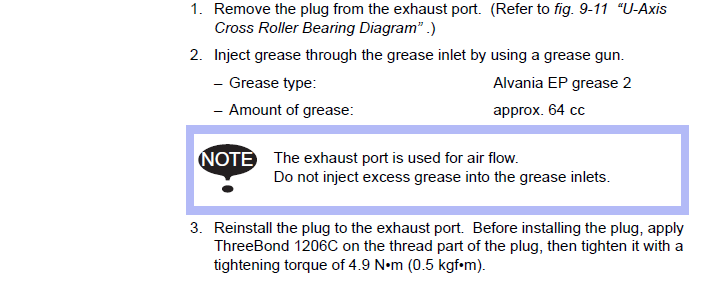

U-AXIS CROSS ROLLER BEARING: Alvania EP2 64 cc

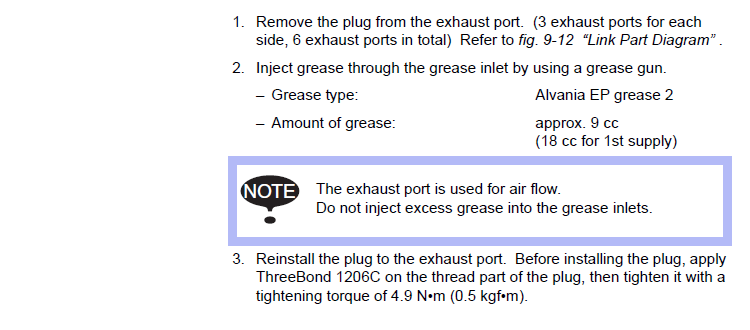

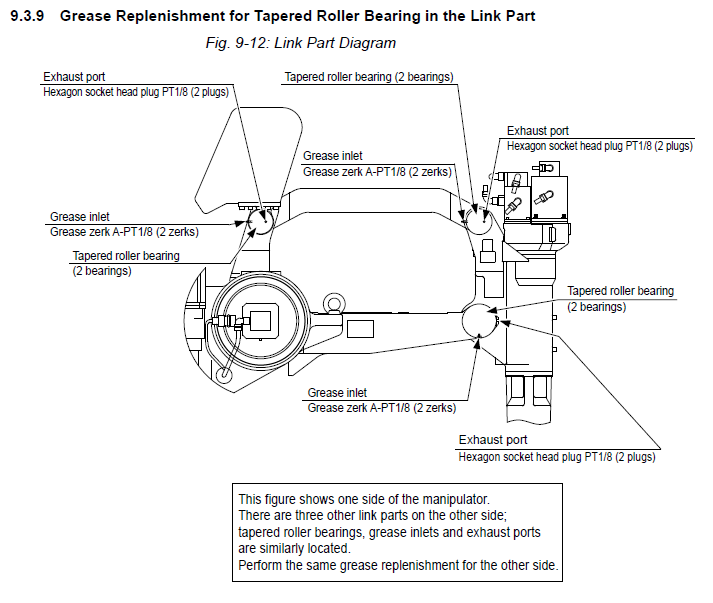

LINK TAPERED ROLLER BEARING: Alvania EP2 9 cc

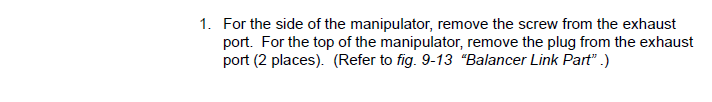

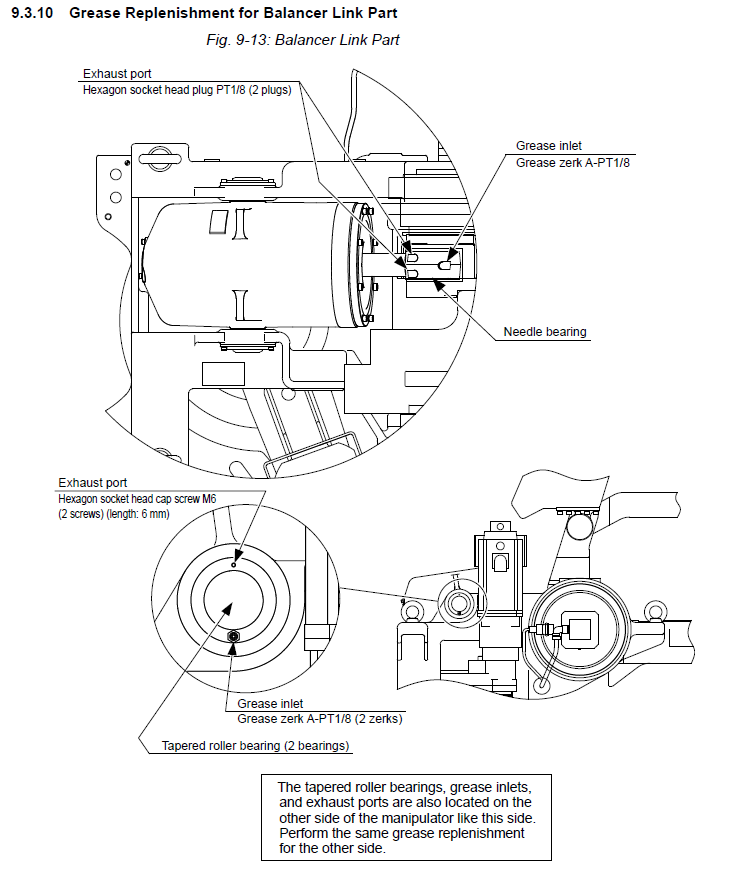

BALANCER LINK: Alvania EP2 10 cc
