Grease Replenishment HC10 / YR-1-06VXHC10-A02 Manipulator

Model Covered: YR-1-06VXHC10-A02

Materials Required:

Grease, Kit, Injection Syringe 179532-1

Grease, Harmonic, SK1 479035-2

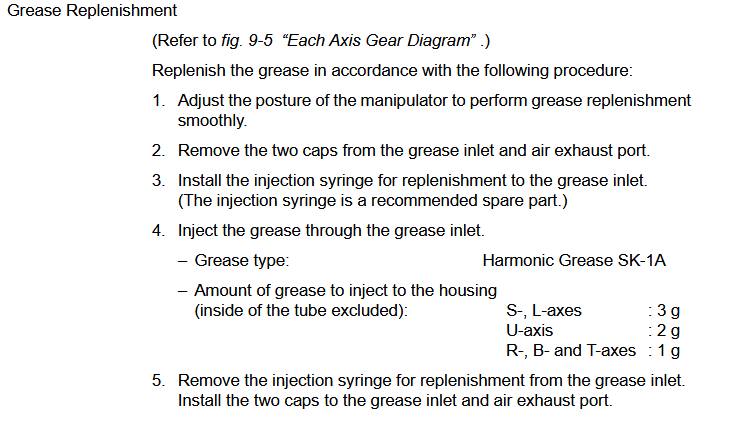

Grease Summary:

S-Axis : 3g or 3.3cc

L-Axis: 3g or 3.3cc

U-Axis: 2g or 2.2cc

R-Axis: 1g or 1.1cc

B-Axis: 1g or 1.1cc

T-Axis: 1g or 1.1cc
