Subject: Tip Dressing Spot Welding Tips
Controller: YRC1000
Product: Tip Dresser
Application: Spot Welding
Robot: SP and GP
Summary: The tip dressing function can utilize either a standard IO controlled unit (electric or pneumatic) or a Servo Tip Dresser. Normally the tip dress is a time based function allowing the motor to remove material while the electrodes maintain a specified pressure. It is possible to define a length of the cut on the tips in the tip dress file as an alternate to a time setting. The controller will monitor the electrode position and advance when the length of cut is achieved. This is the total cut length; it would be reasonable to assume similar depth was removed from the Moving and Fixed electrodes.
Programming: Time based tip dressing can be programmed with a Servo Gun Closed instruction with a pressure file. There are provisions for the robot to activate non-servo tip dresser motors by output. Multiple steps and output control could be set to change the speed of the motor if equipped to do so. However, the Tip Dress File provides more control.

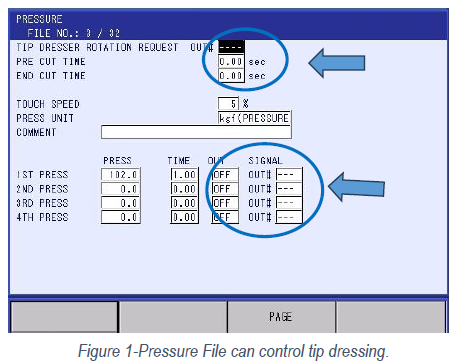

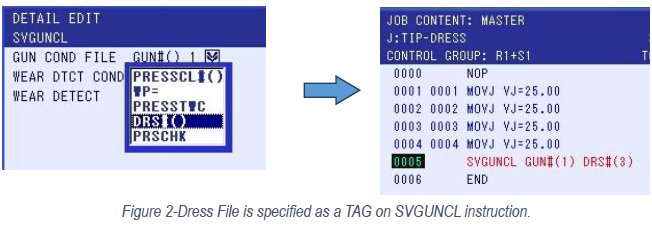

The Tip Dress operation is commanded by a Tip Dress Condition file called from the Servo Gun Closed command. The Dress File is specified by pull down for the SVGUNCL instruction. The file settings can be displayed by using the Direct Open key with cursor on the instruction.

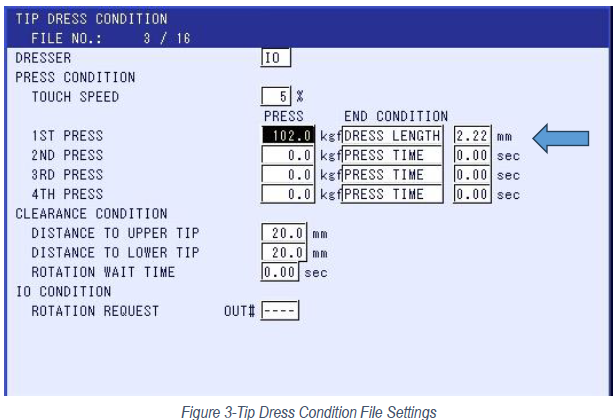

The setting of the Dress Length can be combined with different pressures and times to achieve a cut and then polish finish. The IO control can fire the output for the dresser motor. Servo Dressers have a different selection at the top and will provide additional controls for motor toque, speed, and rotation settings. The Clearance distances are for the SVDRESMOV instruction which combines robot and dresser operation in a single move instruction.

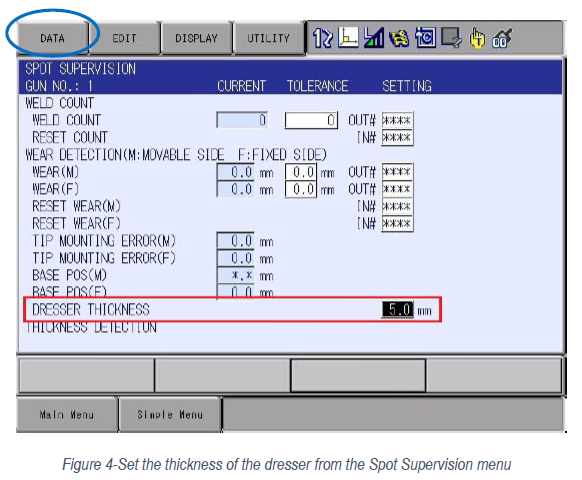

To use the Tip Wear Compensation with Dressing TAG it is important to make sure the Dresser Thickness is specified in the Spot Supervision menu. This can be done by keying in the value of the cutter thickness. It can be recorded by applying pressure (use same as dressing pressure) with the manual gun close (INTRLK+8) and selecting the DATA menu in the upper left of the Spot Supervision menu to pick DRESSER THICKNESS REGISTER. (see 1.11.5.4 Wear Detection with Tip Dressing Instruction in Motor Gun Operators Manual 182903-1CD).

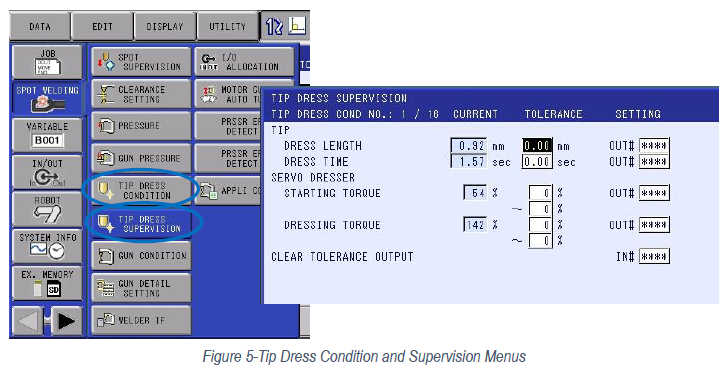

The results of the tip dress operation can be viewed in the Tip Dress Supervisory display. While it allows for the setting of tolerance on the cut, logic would have to be added to act on it. The robot will turn on the specified output if the cut is within tolerance. INFORM programming or CIO logic would need to be added if it is desired to perform an action based on the result being within or outside of tolerance.

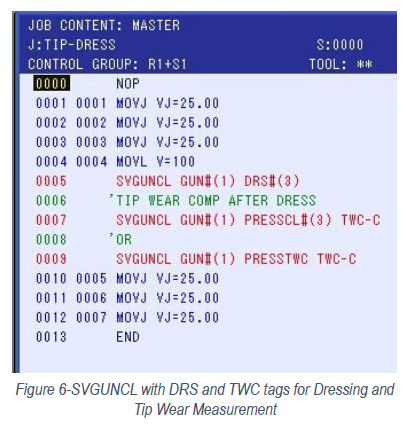

Tip Wear Compensation (TWC): With the tips dressed it is important to perform tip wear measurement even if they are dressed to a specific length. The tip wear compensation tag can be added to the SVGUNCL command along with the DRS tag. This will be done at the pressure in dress file and with the tips in the cutter, that is why the Dresser Thickness must be programmed in the Supervisory display.

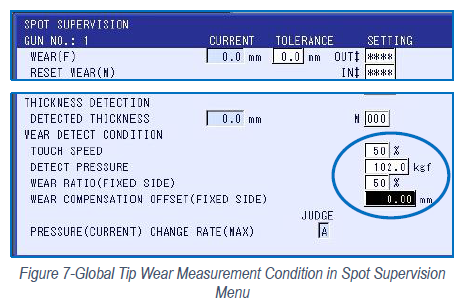

It is desired to use the same clamping conditions when performing the tip wear measurement. This can be done by using a Pressure File specifically for tip wear with the touch speed and force specified in a file# used with the SVGUNCL command and the TWC tag added. A tip wear condition can also be set in the Spot Supervision Menu. These are Global settings for measuring tip wear and can be called by specifying the PRESSTWC tag in the SVGUNCL command. There are also settings to bias the Wear Ratio between the Fixed and Moving electrodes (TWC-C) or add a fixed offset to the fixed electrode (negative values can be used).
