Playback Operation Continuation Function

If PLAYBACK operation is interrupted and the cursor is moved, there is no indication on the pendant where the program stopped.  This function will highlight the line where PLAYBACK was interrupted and prompt where to resume the playback on the start operation after suspending the playback and moving the cursor or selecting other jobs.

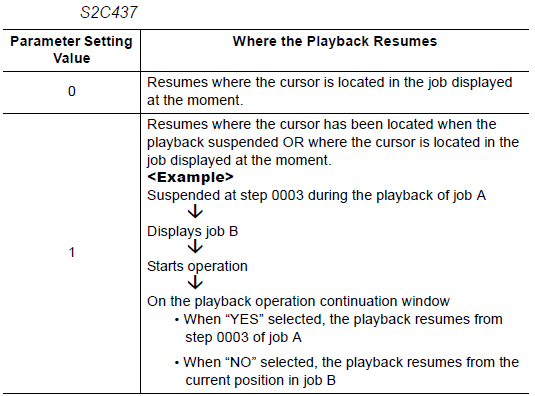

0: Starts operation where the cursor is located in the job displayed at the moment.

1: The playback continuation window appears. Select “YES” and the playback resumes where the cursor has been located when the playback suspended. If “NO” is selected, the playback resumes where the cursor is located in the job displayed at the moment.

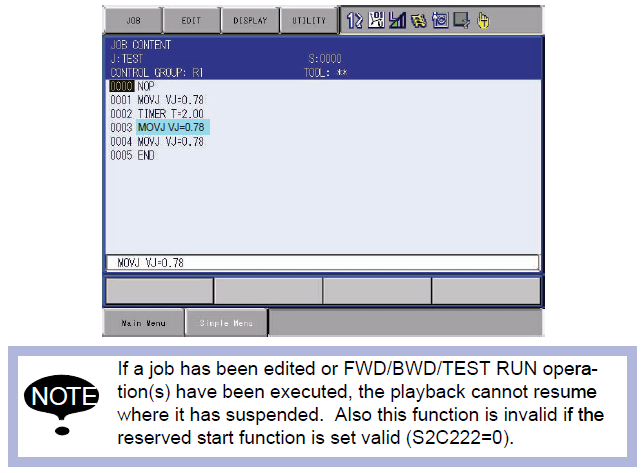

* When this function is valid (S2C437=1), a light blue cursor is displayed at the instruction section of step where the playback has been stopped. When “YES” is selected, the playback resumes where this cursor is located.
