How to Setup Email Notifications for Yaskawa Cockpit

Using an ethernet cable connect the Yaskawa Cockpit machine to your outgoing email server.
Set Outgoing Email Server Information
- Open WebApp by opening a web browser and navigating to localhost:8080/YCPApp

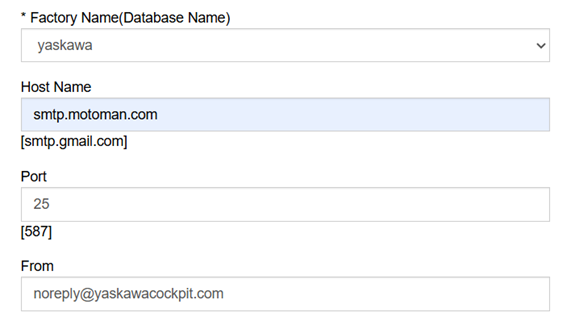

- Go to SETTINGS > Initial Settings > Email.
- Enter host name, port, and email address in from field
- Click Update to Save
Set Email Address for Alert Emails

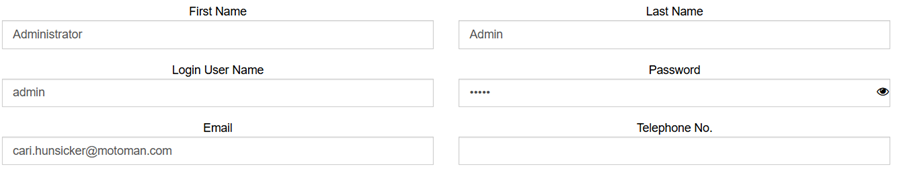

- - Go to SETTINGS > Initial Settings > User and click the pencil beside your user information to modify the listing
  - Enter email address under Email field if not currently in there
  - Click Update to save the data.
Set Alarm Settings

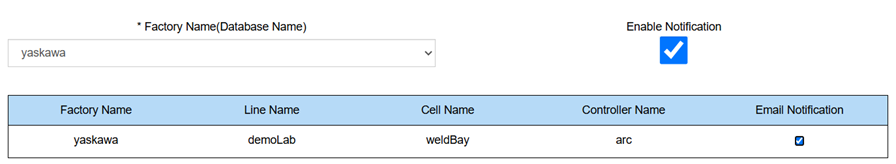

- - Go to SETTINGS > Initial Settings > Alarm and click the “Enable Notification” check box. This checkbox enables/disables alarms for any checked controllers.
  - Below check the box for any controllers you want to receive alarms for. NOTE: If setting up alarms for other users, you will need to login for each user to set up notifications)
  - Click Update to save.
Test Alarms
- Create a job that generates a user alarm and run the job in Remote Mode.
- You should see the alarm on the Yaskawa Cockpit dashboard, and an email should be sent momentarily (depending on email server timing)
