During initial setup, the pendant’s IP address occasionally gets mistakenly changed. This document will assist in correcting issues from a changed pendant Ip address.

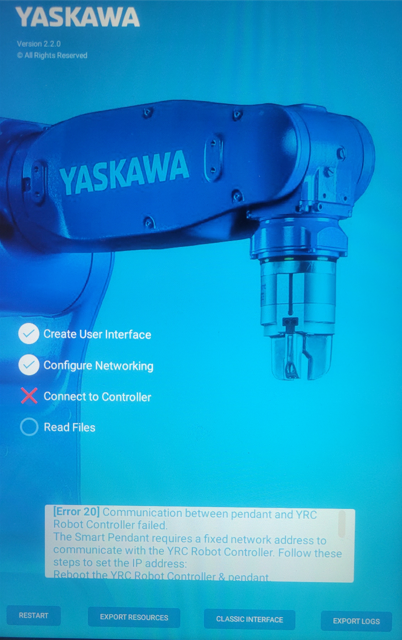

It will be easy to spot this issue occurring, as the Pendant will fail to connect to the controller.

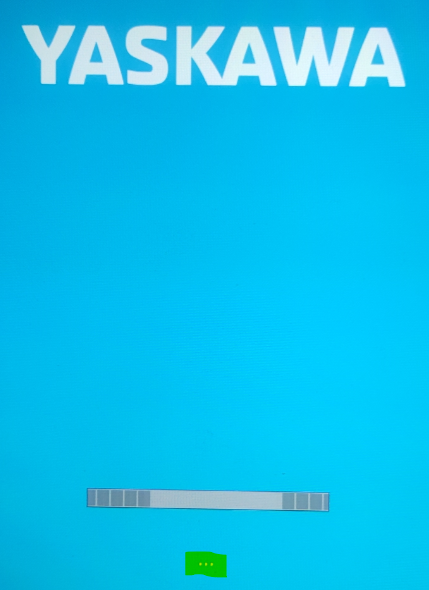

When booting the controller, wait for three dots to appear below the status bar on the display (highlighted in green below.)
Once “…” appears press any membrane key along right side of display. Dots will only show for brief time.
The System Config window will appear. Press the “Network” box.
The Network widow will appear. Press the “Ethernet 0” box.

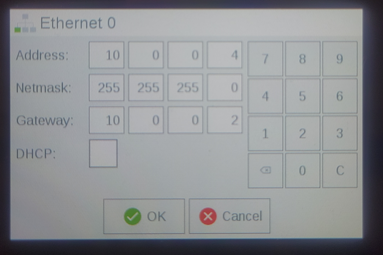

Enter Ethernet settings as shown below, regardless of your network settings. These are the settings required by the Smart Pendant. Then press the OK box.

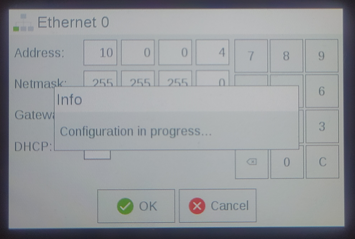

The “Configuration in progress” window will appear.
The screen will automatically revert to the Network window. Press the “Back” box to return to the main window.
Reboot the controller, after you return to the “System Config” window.
