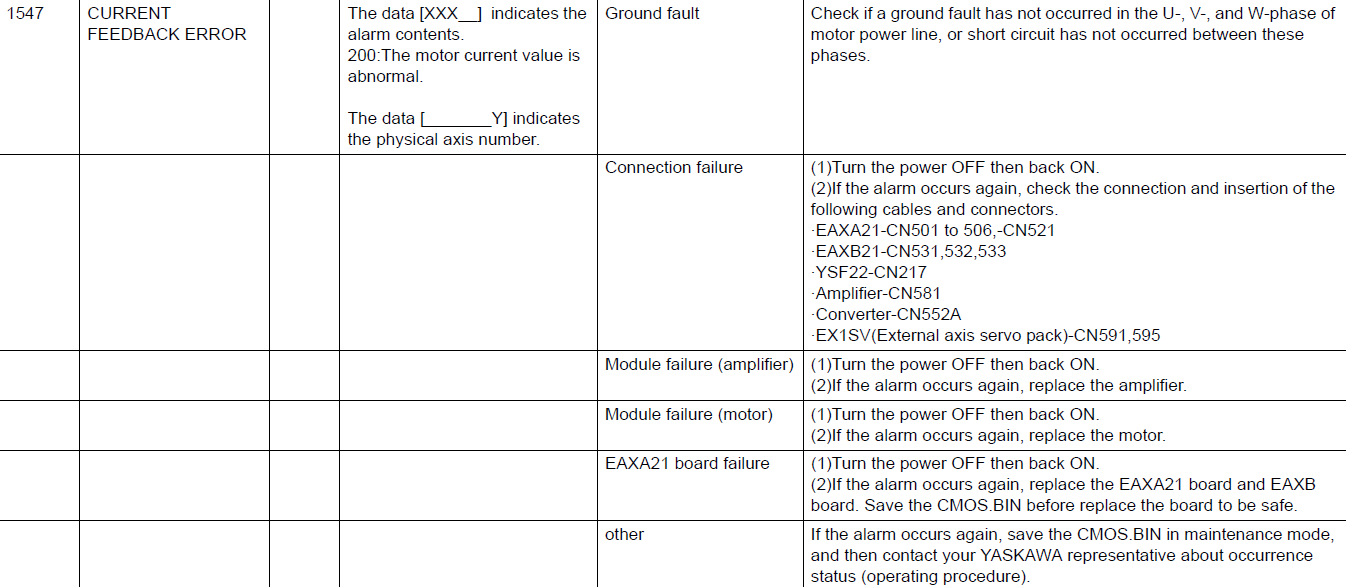

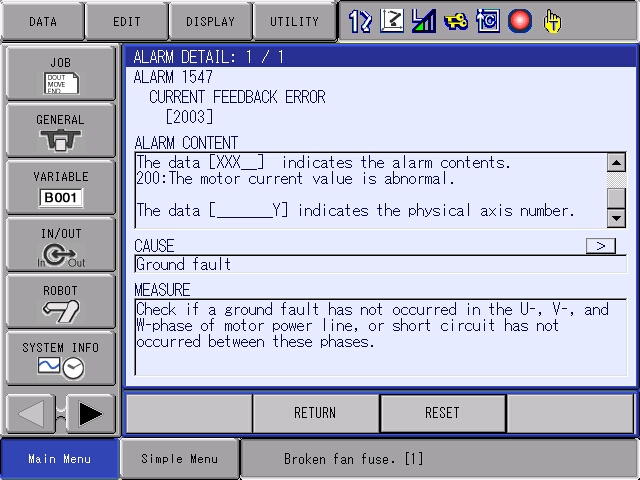

Alarm 1547 occurs if an excessive current is applied to the motor. Check to see if a ground fault, short circuit, or disconnection has occurred in the U, V, or W phase of the motor power line.

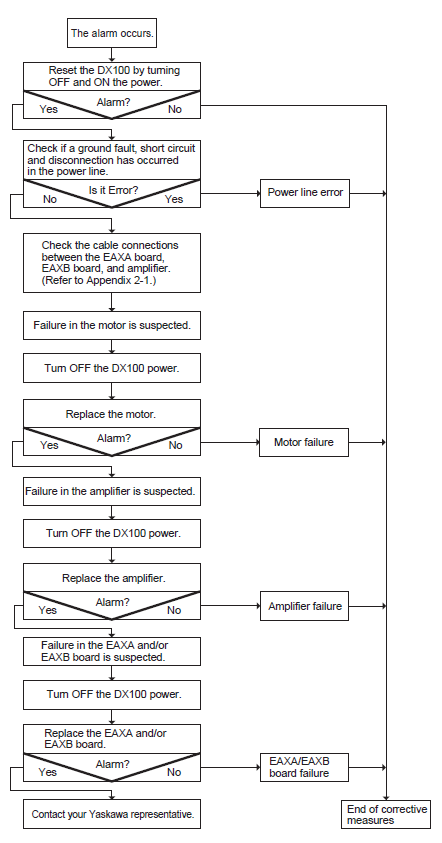

Below is a flow chart to assist in troubleshooting this issue.
DX100
DX200
